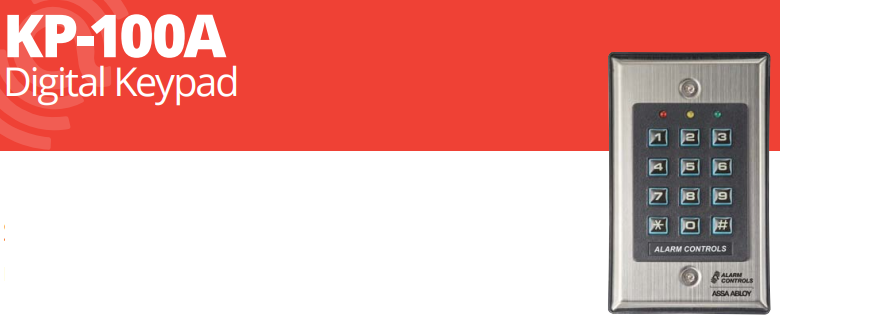

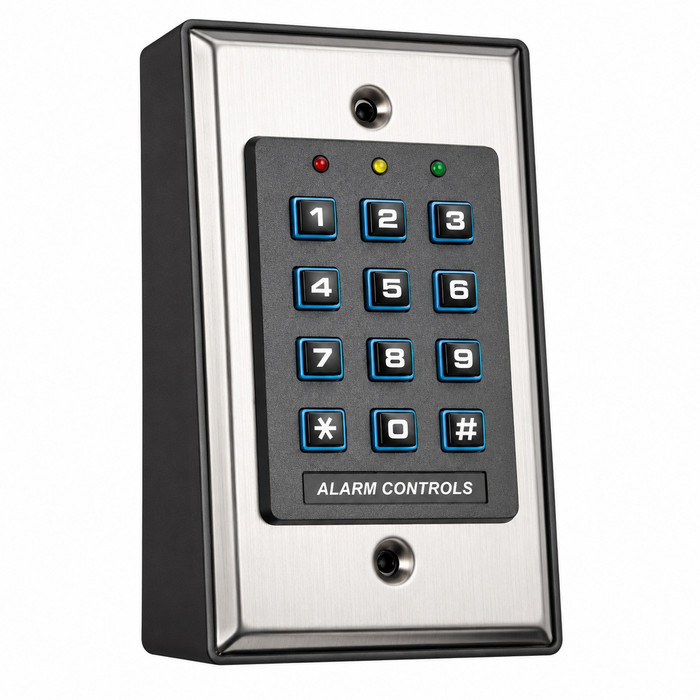

Alarm Controls - KP-100A Digital Keypad
Self-contained digital keypad suitable for
residential and commercial installations.
Features
• Single gang flush mount stainless steel plate with surface mount back box
• True 10-digit operation (10 digits plus * and # keys)
• Capacity up to 1000 user codes, length from 4 to 8 digits
• 50 visitor codes, programmable for one time use or with time limit
• Fully programmable from the keypad
• Programmable passage and false code lockout mode capabilities
• Built-in tamper switch
• Red, green, and yellow LEDs for status and programming feedback
• Fail safe or fail secure capable
• Request to Exit (REX) input
• Audible and visible key press; keys are backlit for visibility
• For indoor applications only
• 3 year warranty
Dimensions
• Keypad: 2-3/4"W x 4-1/2" H x 5/32"D
• Surface Mount Back Box: 2-13/16" W x 4-5/8" H x 1-7/16" D
Electrical
• Operating Voltage: 12-24 VAC/VDC [+/- 10%]
• Operating Current: − 12 VDC: 40mA at rest, 100mA active − 24 VDC: 70mA at rest; 50mA active
• Output Relay: 1 SPDT dry contacts; 5A/30 VDC Max
• REX Input: N/O dry contact; 1mA/5VDC Max
• Tamper Switch: N/C dry contact; 50mA/24 VDC Max
Operating Temperature
• -4°F to +158°F [-20°C to +70°C]
• Humidity: 5-95% relative humidity non-condensing
Shipping Weight
• 0.5lb [0.23kg]
Resources:
Manufacturer Resources
Product Specs
- Category:
- Electronic Access Controls
- Series:
- KP-100A
- Subcategory:
- Readers, Keypads and Credentials
- Commercial/Residential:
- Commercial
- Temperature Range:
- Minus 4 to 158F (Minus 20C to 70C)
- Product Type:
- Digital Keypads
- Product Group:
- Electronic Access Controls
- Product Subgroup:
- Readers, Keypads and Credentials
- Plate Finish:
- Satin Stainless Steel
- Function:
- Indoor
