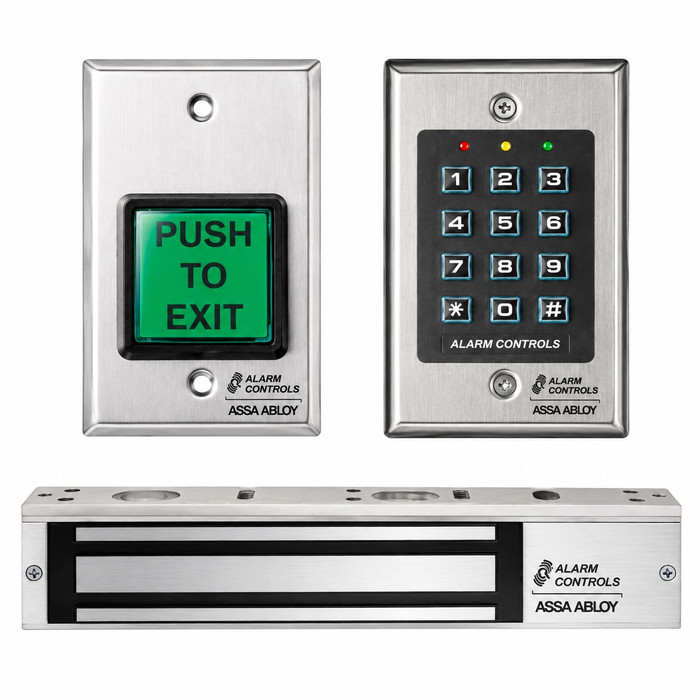

Alarm Controls Lock N' A Box Series For 600S & 1200S
A complete Access control system in a convenient package.
LNB-6
Includes:
• One Model 600S UL listed magnetic lock
• One Model TS-2 UL listed request to exit station
• One Model KP-100A backlit keypad
• One 12 VDC, 700 mA UL listed plug-in power supply with leads
• Ideal for interior doors
• Limited lifetime warranty
• Available with SREX-100 active request to exit motion sensor. Specify when ordering
LNB-12
Includes:
• One Model 1200S UL listed magnetic lock
• One Model TS-2 UL listed request to exit station
• One Model KP-400 weatherproof, vandal resistant backlit keypad
• One 12 VDC, 700 mA UL listed plug-in power supply with leads
• Ideal for interior or exterior doors
• Limited lifetime warranty
• Available with SREX-100 active request to exit motion sensor. Specify when ordering.
Manufacturer Resources
LNB-12 Series Wiring Diagram
Product Specs
- Series:
- LNB Series
- Holding Force:
- 600
- Subcategory:
- Electromagnetic Locks
- Commercial/Residential:
- Commercial
- Battery Operated:
- No
- Electronic:
- Yes
- Product Group:
- Electronic Access Controls
- Product Subgroup:
- Electromagnetic Locks
- Product Type:
- Electromagnetic Locks
- Fail-safe / Fail-secure:
- Fail-Safe
- Temperature Range:
- 14 to 131F (Minus 10 to 55C)
- Product Model:
- LNB-6
- Product Voltage:
- 12 VDC
- Product Finish:
- Standard - Clear Anodized (US28)
- Product Category:
- Electronic Access Controls
- Department:
- Door Hardware
Alarm Controls LNB-12 – Frequently Asked Questions
1) What exactly comes in an Alarm Controls Lock N' A Box kit?
Both versions ship as a complete 12 VDC access control package. The LNB-6 includes a Model 600S UL listed magnetic lock, a Model TS-2 UL listed request-to-exit station, a Model KP-100A backlit keypad, and a 12 VDC 700 mA UL listed plug-in power supply with leads. The LNB-12 swaps in the Model 1200S mag lock and the KP-400 weatherproof, vandal resistant backlit keypad, with the same TS-2 station and 12 VDC 700 mA plug-in supply. You pick the holding force, 600 or 1200, when you order.
2) Which Lock N' A Box kit should I use on an exterior door?
Go with the LNB-12. Its KP-400 keypad is weatherproof and vandal resistant, and Alarm Controls calls the kit out for interior or exterior doors. The LNB-6 with the KP-100A keypad is for interior doors only. Either way the lock itself is rated for 14 to 131F (minus 10 to 55C), so keep that in mind on unconditioned openings.
3) Does the mag lock in this kit release when the power goes out?
Yes. The LNB kits use a fail-safe electromagnet, so it unlocks whenever power is removed or dropped. That is the behavior code officials expect on an egress door, and it also means the door is open during a building power loss unless you back the 12 VDC supply up. The included plug-in power supply is 12 VDC, 700 mA.
4) Do I need a motion sensor for request to exit, or is the pushbutton station enough?
Every LNB kit ships with the TS-2 UL listed request-to-exit station, which is a pushbutton release. If your jurisdiction or your customer wants touch-free egress, order the kit with the SREX-100 active request-to-exit motion sensor device option, which is added at the time of order rather than bought separately later.
5) I need a mag lock for a pair of doors - is the Lock N' A Box kit the right choice?
The Lock N' A Box kits are built around a single magnet, either the 600S at 600 lb holding force or the 1200S, packaged with a request to exit station, keypad and 12 VDC plug-in power supply. For a pair of doors, a double-door magnet is the usual route: the DynaLock 2250 Series is a double electromagnetic lock rated 1200 lb surface mounted for outswing or inswing single or double doors, and the Dorma EML320 is a double door electromagnetic lock rated 1500 lb. Those are lock bodies rather than complete kits, so the keypad, exit device and power supply are specified separately.
6) The header on my aluminum storefront is too narrow for a standard mag lock - what should I use instead?
The Lock N' A Box kits use the surface mounted 600S or 1200S magnet, which needs standard header depth. Where the header will not take it, the Dortronics 1107 is a narrow 2 inch slim line 600 lb single door magnet, which matches the 600 lb holding force of the LNB-6 kit in a slimmer body. For a concealed approach, the Schlage 320M is a compact mortise sliding door electromagnetic lock at 1500 lb, and the ROFU 8031-002 is a shear lock at 2200 lb, 12/24 VDC, monitored, both of which mortise into the frame rather than surface mount.
7) The spec calls for door position and bond monitoring - does the Lock N' A Box kit provide that?
The Lock N' A Box kits pair the magnet with a TS-2 request to exit station, a backlit keypad and a 12 VDC plug-in supply, and can be ordered with the SREX-100 request to exit motion sensor in place of or alongside the pushbutton station. Where the drawing calls out monitoring contacts on the magnet itself, the Dorma EML310 BA DP is a 1500 lb single door magnet with bond alert and a door position sensor, the EML310 DP carries the door position sensor alone, the Dortronics 1000 Series industrial magnet includes an SPDT door position switch, and the Schlage M390RFK at 1500 lb adds a door status monitor, magnetic bond sensor and relock time delay.
8) I am replacing a Locknetics 390+ mag lock - can I drop in a Lock N' A Box kit?
The Lock N' A Box kits are complete 12 VDC packages built around the 600S or 1200S magnet and are not designed against another manufacturer's hole pattern, so a swap means new prep. The Schlage M390RFK is a direct retrofit for the Locknetics 390+, rated 1500 lb, with door status monitor, magnetic bond sensor and relock time delay, and it is a heavy duty device.
9) Is any additional controller or reader needed to make this mag lock work?
No separate access panel is required. The backlit keypad in the kit (KP-100A on the LNB-6, KP-400 on the LNB-12) does the credential and relay work, the TS-2 handles egress, and the plug-in 12 VDC supply powers it. You supply wire, mounting for the keypad and station, and the low-voltage pathway. Alarm Controls publishes wiring diagrams for both the LNB-6 and LNB-12 to lay the connections out.
10) Does the LNB kit monitor door position or magnetic bond?
No monitoring outputs are part of the Lock N' A Box package. It is the lock, the TS-2 exit station, the keypad, and the power supply. If you need to report door status back to a panel, the Dorma EML310 DP carries a door position sensor, the EML310 BA DP adds bond alert, and the DynaLock 2101 Series is an early warning lock at 1200 lb.
11) What finish is the magnetic lock in the Lock N' A Box kit?
Clear anodized aluminum, US28, as the standard finish. That is the usual match for aluminum storefront and hollow metal frames with a mill or clear anodized head, so it blends on a typical commercial opening without extra trim.
12) Is the Lock N' A Box rated for commercial use, and does it need batteries?
It is a commercial-duty electronic access product, hard wired rather than battery operated. All power comes from the included 12 VDC, 700 mA plug-in supply, so there are no cells to change on a maintenance schedule, but the opening does need an outlet or a low-voltage run to that supply.
