Alarm Controls NTS Series - No Touch Request to Exit Station

The NTS No Touch Request to Exit Station
uses wireless sensors to reliably allow
safe egress or to activate a device with
the simple wave of a hand. Designed
to reduce the risk of contamination for
sensitive applications including: bathrooms,
hospitals, labs, schools and offices.

Features
Standard Features
• Stainless steel with vandal resistant face plate
• Sensor detection range up to 4"
• Bi-color Halo LED status indicators
• Plate screened "Wave To Open".
• Time delay settable for 1 to 35 seconds

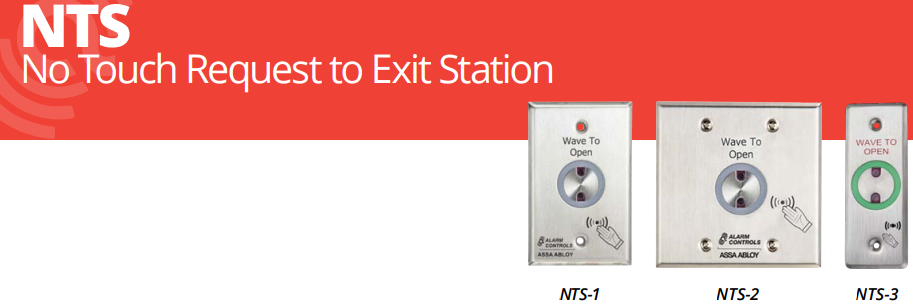

Options
• NTS-1 with single gang wall plate (4.5"H x 2.75"W)
• NTS-2 with double gang wall plate (4.5"H x 4.5"W)
• NTS-3 with narrow stile wall plate (4.5"H x 1.75"W)

Specifications
Certifications & Listings
• CE Certified

Electrical
• SPDT relay rated 2A at 30 VDC/VAC
• Operates on 12 VDC or 24 VDC

Operating Temperature
• -13 to + 131 F (-25 to 55 C)

Product Specs

Series:
NTS
Subcategory:
No Touch Sensors
Commercial/Residential:
Commercial
Temperature Range:
Minus 13 to 131 F (Minus 25 to 55 C)
Product Type:
No Touch Sensors
Product Group:
Electronic Access Controls
Product Subgroup:
Sensors, Switches, Relays and Timers
Plate Finish:
Satin Stainless Steel
Product Model:
NTS-1
Product Voltage:
12/24 VDC
Product Finish:
Satin Stainless Steel
Product Category:
Electronic Access Controls
Department:
Door Hardware

Alarm Controls NTS-1 – Frequently Asked Questions

1) How close does your hand have to be to trigger the Alarm Controls NTS wave sensor?
Detection range is up to 4 inches from the plate. That is a deliberate short throw: it keeps people walking past the wall from tripping the door, so you get an activation only when someone actually waves at it. Mount it where a hand naturally lands, not behind a coat rack or trim that sits inside that 4 inch window.
2) What voltage and relay does the NTS no touch exit station need to tie into my access control?
The NTS station runs on 12 VDC or 24 VDC and switches through an SPDT relay rated 2A at 30 VDC/VAC. That dry SPDT contact gives you both normally open and normally closed, so it drops into an access control panel REX input, a door operator activation, or a mag lock power interrupt. For anything drawing more than 2A, switch a separate relay with it.
3) Can I set how long the door stays unlocked after someone waves at the NTS station?
Yes, the relay time delay is adjustable from 1 to 35 seconds. Short settings suit a mag lock release on a normal egress door; longer settings give an accessible user time to clear a door operator swing before the lock re-energizes.
4) Will an Alarm Controls NTS wave plate hold up in an exterior or unheated opening?
Operating temperature runs from minus 13 to 131 F (minus 25 to 55 C), so an unheated vestibule, a parking garage, or a cold storage corridor is within range. The face is stainless steel with a vandal resistant plate in a satin stainless finish, which also handles the wipe-downs and cleaners common in healthcare and lab corridors.
5) Is a touchless wave plate the right choice instead of a standard push button request to exit?
A no touch station makes sense where contact is the problem: restrooms, hospitals, labs, schools and offices where hand contact on a button is a contamination concern, and where hands are often full or gloved. A mechanical push button is still the simpler choice on a back of house door with no hygiene driver. The NTS switches the same way either would, through a dry SPDT contact, so the panel wiring does not change when you swap approach.
6) What does the dual color LED on the NTS station actually tell the person at the door?
The plate carries a bi-color halo LED ring around the sensor that changes color to show status, so a user can see at a glance whether the wave registered and the door released. The plate is also screened "Wave To Open", which cuts the number of people who stand there pushing on a door that has no button.
7) Is the Alarm Controls NTS station rated for commercial use, and does it carry any listing?
It is a commercial grade device and is CE Certified. Beyond that, treat egress code decisions for your opening as a local AHJ matter, since the station is an activation device wired into whatever locking hardware is on the door.
