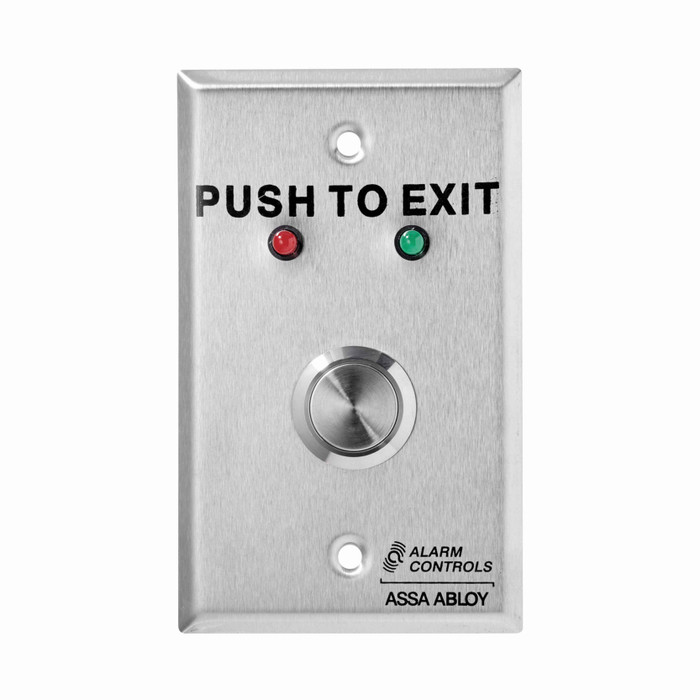

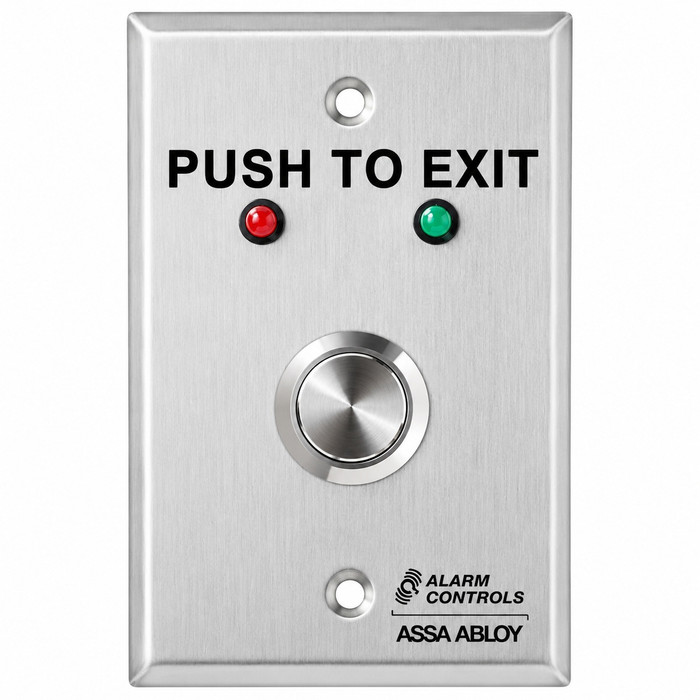

Alarm Controls Alarm Controls TS-10 & TS-11 Series - Vandal Resistant Request to Exit Station, 3/4" Diameter Metal Button, "PUSH TO EXIT" with LEDs ACT-TS-10

Alarm Controls TS-10 & TS-11 Series - Vandal Resistant Request to Exit Station, 3/4" Diameter Metal Button, "PUSH TO EXIT" with LEDs

(No reviews yet) Write a Review

Model: TS-10

In Stock (leaves warehouse same day if ordered before 3pm ET)

$152.00
$109.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Alarm Controls TS-10 & TS-11 - Vandal Resistant Request to Station

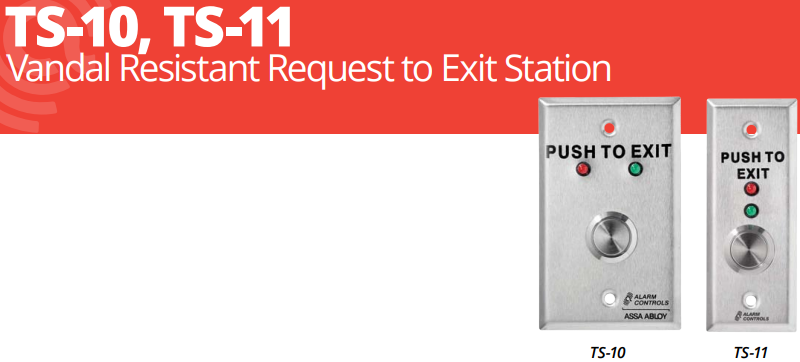

The single gang TS-10 and narrow stile TS-11
request to exit stations, with vandal resistant
push button and LED status indicators,
provide an effective means of locking an
exit door while still providing egress during
an emergency. Red and green LEDs offer an
at-a-glance visual indication of system status.
Vandal resistant push buttons are designed
for indoor, outdoor, commercial and industrial
applications. Both models are available with
timer relay for applications that require door
to remain unlocked for a specified time.

Features
Standard Features
• TS-10 switch mounted on single gang wall plate with 430 stainless steel finish
• TS-11 switch mounted on narrow 1-3/4" wall plate with 302 stainless steel finish
• Vandal resistant 3/4" push button
• Plate is screened “PUSH TO EXIT” for easy to follow access instructions
• Red and green LED status indicators
• Momentary action switch

Specifications
Certifications & Listings
• UL 294 listed
• CSA certified components
• IP65 TS-10302 model only
Electrical
• DPDT contacts rated 10A at 35 VDC
• Switch depth behind plate: 1-1/2"
• Switch terminated with 10” leads
• Red & green LEDs operate on 12 or 24 VDC

Product Specs

Series:
TS
Subcategory:
Push Buttons
Commercial/Residential:
Commercial
Product Type:
Push Buttons
Product Group:
Electronic Access Controls
Product Subgroup:
Sensors, Switches, Relays and Timers
Plate Finish:
Satin Stainless Steel
Product Model:
TS-10
Product Voltage:
35 VDC
Product Finish:
Satin Stainless Steel
Product Category:
Electronic Access Controls
Department:
Door Hardware

Alarm Controls TS-10 – Frequently Asked Questions

1) How deep does the Alarm Controls TS-10 request to exit switch sit behind the plate?
The switch body projects 1-1/2 inches behind the plate, so a standard single gang box has room for it, but a shallow box or a mullion pocket with conduit or wiring already crowding it will not. It is terminated with 10 inch leads, so plan on making up your splices inside the box rather than landing wire directly on the switch.
2) Can the TS-10 exit button switch a maglock directly, or do I need a relay?
It switches the lock directly in most cases. The contacts are DPDT rated 10A at 35 VDC, which covers a 12 or 24 VDC maglock or strike drawn through the button without an interposing relay. DPDT also gives you a second set of contacts, so you can break the lock power on one pole and send a shunt or bypass signal to the alarm panel on the other from the same press.
3) Does the button stay latched when pressed, or does the door relock on its own?
The TS-10 and TS-11 use a momentary action switch, so the contacts transfer only while the button is held and the door relocks the moment it is released. If you need the opening to stay unlocked for a set period after one press, both models are offered with a timer relay version instead.
4) Is there a weatherproof version of the Alarm Controls TS-10 exit station for an exterior door?
Yes, weather protection is an ordering choice on both the TS-10 and the TS-11, so you pick it as an option rather than a separate part number. The IP65 rating on the range is stated for the TS-10302 model. The vandal resistant button itself is built for indoor, outdoor, commercial and industrial use.
5) Is the Alarm Controls TS-10 exit button UL listed for an access control system?
UL 294 listed, with CSA certified components. That is the access control unit standard, which is what a spec writer or an AHJ on an institutional job will be looking for on a request to exit device tied into a locked egress door.
6) What voltage do the red and green LEDs on the Alarm Controls TS series exit station run on?
The LED indicators operate on 12 or 24 VDC, so they drop onto whichever bus is already feeding the lock without a separate supply. Red and green give the guard or the tenant an at-a-glance read of whether the door is secure or released.
7) Will the TS-10 exit button hold up in a school corridor or apartment lobby where buttons get abused?
That is the reason for the metal button. The 3/4 inch push button is vandal resistant rather than plastic, and the plate is satin stainless steel, 430 on the TS-10 and 302 on the narrow TS-11. The PUSH TO EXIT legend is screened into the plate, so it will not peel off the way an applied label does in a high traffic corridor.
8) What is the difference between the Alarm Controls TS-10 and the Dortronics 5215-SPB exit release button?
Both are single gang exit release stations, but the button differs. The TS-10 uses a 3/4 inch round vandal resistant metal button with separate red and green LED indicators beside it. The Dortronics 5215 Series 5215-SPB uses a 1-1/2 inch square illuminated push button, so the button face itself lights rather than a pair of status LEDs. Go with the larger illuminated square where you want a big, easy target in a dim corridor, and with the TS-10 where a small metal button resists abuse and you want a two color secure or released indication. If the plate has to fit a narrow aluminum stile, neither single gang plate works, and the TS-11 at 1-3/4 inches is the one to order.
9) For an exterior door that needs a UL 294 listed request to exit button with a weather rating, which exit station should be used?
The Alarm Controls TS-10 and TS-11 are UL 294 listed with CSA certified components, and the TS-10302 model carries an IP65 rating, which is the version to specify for an exterior or washdown location. Both models are offered with and without that weather protection, and the button is a vandal resistant metal actuator intended for indoor, outdoor, commercial and industrial use. The Dortronics 5215-SPB is described as an exit release with a 1-1/2 inch square illuminated push button on a single gang plate, so it is the choice when the spec is written around a large lighted square actuator rather than around an ingress protection rating.
10) Is there an exit push button that will hold a door unlocked for a set time instead of only a momentary release?
The standard Alarm Controls TS-10 and TS-11 use a momentary action switch, which releases the door only while the button is pressed. Both models are also available with a timer relay for applications that require the door to remain unlocked for a specified time, so the timed version is the one to specify for a loading dock or a lobby door that has to stay released after the press. The Dortronics 5215-SPB is an exit release with a 1-1/2 inch square illuminated push button on a single gang plate; its 5215 Series is the reference to work from if the specification names Dortronics.
