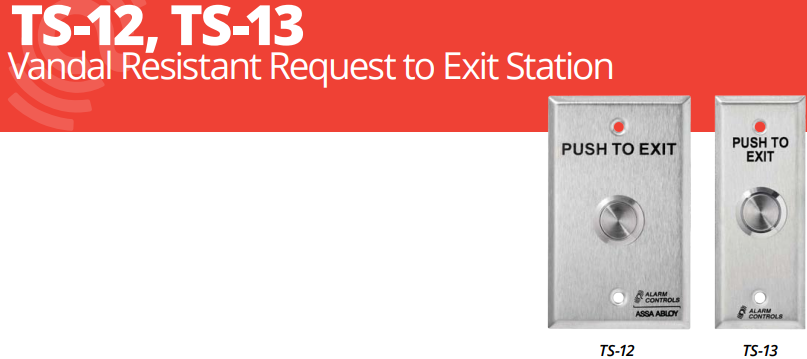

Alarm Controls TS-12 & TS-13 - Vandal Resistant Request to Exit Station
The single gang TS-12 and narrow stile TS-13
request to exit stations, with vandal resistant
push button, provide an effective means of
locking an exit door while still providing
egress during an emergency. Vandal
resistant push buttons are designed for
indoor, outdoor, commercial and industrial
applications. Both models are available with
timer relay for applications that require door
to remain unlocked for a specified time.
Features
Standard Features

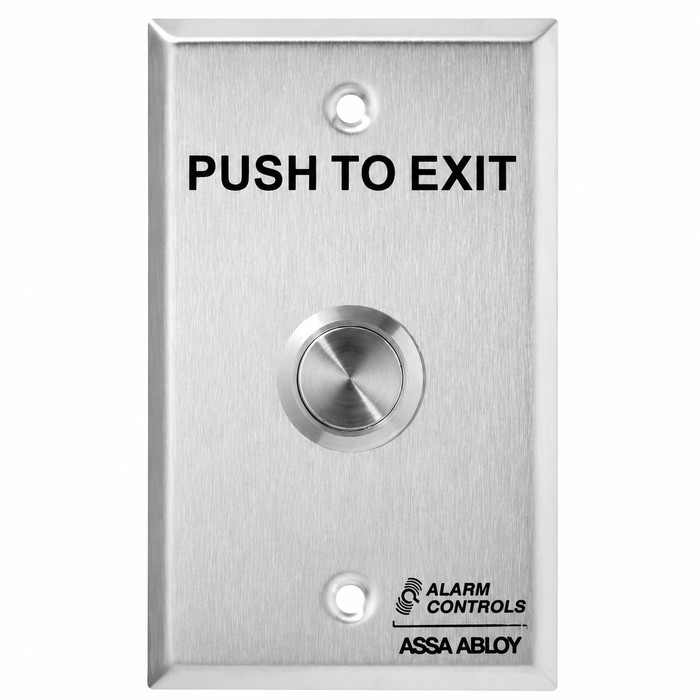

• TS-12 switch mounted on single gang wall plate with 430 stainless steel finish
• TS-13 switch mounted on narrow 1-3/4" wall plate with 302 stainless steel finish
• Vandal resistant 3/4" push button
• Plate is screened “PUSH TO EXIT” for easy to follow access instructions
• Momentary action switch
Specifications
Certifications & Listings
• UL 294 listed
• CSA certified components
• IP65 TS-12302 model only
Electrical
• DPDT contacts rated 10A at 35 VDC
• Switch depth behind plate: 1-1/2"
• Switch terminated with 10” leads
Resources:
Manufacturer Resources
Product Specs
- Category:
- Electronic Access Controls
- Series:
- TS
- Subcategory:
- Push Buttons
- Commercial/Residential:
- Commercial
- Product Type:
- Push Buttons
- Product Group:
- Electronic Access Controls
- Product Subgroup:
- Sensors, Switches, Relays and Timers
- Plate Finish:
- Satin Stainless Steel
- Model:
- TS-12
- Voltage:
- 35 VDC
- Finish:
- Satin Stainless Steel
