Alarm Controls TS-32 Series - Latching Panic Stations

Alarm Controls TS-32 Series - Latching Panic Stations

(No reviews yet) Write a Review

Model: TS-32

In Stock (leaves warehouse same day if ordered before 3pm ET)

$225.00
$176.39
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

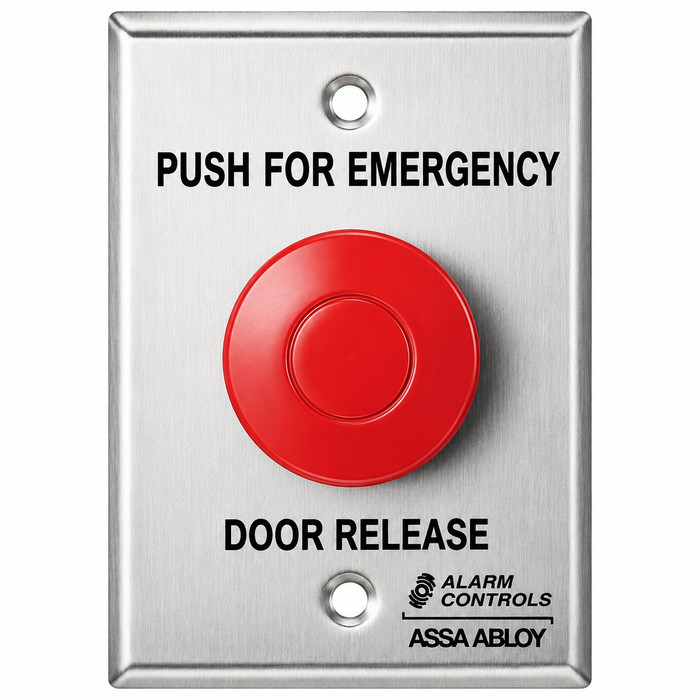

Alarm Controls TS-32 Series - Latching Panic Stations

Single gang panic station with latching push button switch that remains active or inactive until actuated again

Features

Standard Features

  • Single gang stainless steel wall plate, weather resistant to IP65 standards
  • 1-1/2” red mushroom button
  • Plate screened “PUSH FOR EMERGENCY DOOR RELEASE”
  • Alternate action switch

Options

  • TS-32B Black mushroom button
  • TS-32G Green mushroom button

Specifications

Certifications & Listings

  • UL and CSA certified components
  • Conforms to IP65

Electrical

  • Available in any combination of N/O and/ or N/C contact pairs.
  • Contacts rated 10A at 35 VDC or 120 VAC
  • Switch connection via screw terminals
  • Switch depth behind plate: 2”

Operating Temperature

  • -13F to +158 F (-25 to 70 C)

Product Specs

Series:
TS-32
Subcategory:
Push Buttons
Commercial/Residential:
Commercial
Temperature Range:
Minus 13F to 158F (Minus 25 to 70 C)
Product Type:
Push Buttons
Product Group:
Electronic Access Controls
Product Subgroup:
Sensors, Switches, Relays and Timers
Product Model:
TS-32
Product Voltage:
35 VDC
Product Finish:
Satin Stainless Steel
Product Category:
Electronic Access Controls
Department:
Door Hardware

Alarm Controls TS-32 – Frequently Asked Questions

1) Will the Alarm Controls TS-32 panic station stay released after I press it, or does it reset when I let go?
It latches. The TS-32 uses an alternate action switch, so the mushroom button stays in whatever state you push it into (active or inactive) until someone presses it again. That is the behavior you want for an emergency door release that has to hold the door unlocked until staff deliberately reset it. If you need a momentary press-and-release button that only holds the door open while pressed, this is the wrong station.
2) Can the TS-32 emergency release button be mounted outdoors or in a wash-down area?
The stainless steel wall plate is weather resistant to IP65, and the switch is rated for operation from -13F to +158F (-25 to 70 C). That covers unheated garages, loading docks, stairwells and covered exterior locations. IP65 is dust tight and protected against water jets, so hose-down and driving rain are fine; it is not rated for submersion.
3) What size electrical box does the Alarm Controls TS-32 panic station need, and how deep does it sit?
Single gang. The switch body extends 2 inches behind the plate, so plan for a single gang box with at least that much clear depth, and keep the wiring bundle out of the way of the switch barrel. Wiring lands on screw terminals on the switch, so no soldering at the box.
4) What do I have to specify when ordering a TS-32 latching panic station?
Two things. Button color: TS-32 is the red mushroom button, TS-32B is black, TS-32G is green. Red is the usual choice for emergency egress, green is common where the button reads as a request-to-exit rather than an emergency, and black is used where the station should not draw attention. Second, the contact arrangement, since the station can be built with any combination of N/O and/or N/C pairs. The plate is satin stainless steel on all three.
5) What is a comparable single gang emergency push button station to the Alarm Controls TS-32?
The Dortronics 5215-SPB is the closest peer. It is an exit release with a 1-1/2 inch square illuminated push button on a single gang plate, from the Dortronics 5215 Series. The Alarm Controls TS-32 is also a single gang station, but uses a 1-1/2 inch red mushroom button on a stainless steel wall plate screened PUSH FOR EMERGENCY DOOR RELEASE, with an alternate action latching switch that stays active or inactive until pressed again. The two differ in button form and in switch behavior: the TS-32 latches, and its button is a mushroom head rather than a square illuminated button.
6) Is the TS-32 button already labeled for emergency egress, or do I need to add a sign?
The plate comes screened PUSH FOR EMERGENCY DOOR RELEASE, so no separate placard is needed for the station itself. The actuator is a 1-1/2 inch red mushroom button on the standard TS-32, which is large enough to hit with a palm or an elbow. Note that the black (TS-32B) and green (TS-32G) versions carry the same screened plate text, so if you are using one of those as a routine exit button the wording still says emergency release.
7) Should I use a latching mushroom panic station or a momentary illuminated exit button at my door?
Different jobs. A latching mushroom station like the TS-32 holds the door released once hit and requires a deliberate second press to restore the lock, which is what an emergency release should do. A momentary square exit button, such as the Dortronics 5215-SPB with its 1-1/2 inch square illuminated push button on a single gang plate, is the normal choice for everyday request-to-exit at a door people pass through all day. Put the latching mushroom where the release is an event, and the momentary button where it is routine traffic.
8) Are the switch components in the Alarm Controls TS-32 UL certified?
The TS-32 panic station is built with UL and CSA certified components and conforms to IP65. That is a component-level certification on the switch, and it is what an inspector or a facility spec sheet is usually asking about on a low voltage release station.
9) Does the Dortronics 5215-SPB work outdoors or in a cold stairwell the way the TS-32 does?
The Alarm Controls TS-32 uses a stainless steel wall plate rated weather resistant to IP65 and carries an operating temperature range of minus 13 F to 158 F (minus 25 to 70 C), which is what qualifies it for exterior doors, loading docks, and unconditioned stairwells. The Dortronics 5215-SPB is a single gang exit release with a 1-1/2 inch square illuminated push button; it is the peer to consider for interior openings where an illuminated button is wanted. If the location is exposed to weather, specify against the TS-32 IP65 plate and its stated temperature range.
10) Will the Dortronics 5215-SPB switch the same load as the Alarm Controls TS-32?
The TS-32 contacts are rated 10A at 35 VDC or 120 VAC, are available in any combination of N/O and/or N/C contact pairs, and land on screw terminals, with 2 inches of switch depth behind the plate. The Dortronics 5215-SPB is a 1-1/2 inch square illuminated push button exit release on a single gang plate from the 5215 Series. If your circuit depends on a specific contact configuration or on switching a line voltage load directly, the TS-32 contact rating and N/O and N/C pairing are the values to design to.
11) I want the button to light up. Is there a version of the TS-32 that is illuminated?
The TS-32 family is offered by button color rather than by illumination: TS-32 with a red mushroom button, TS-32B with a black mushroom button, and TS-32G with a green mushroom button, all on the same satin stainless steel single gang plate. If an illuminated button is what the drawing calls for, the Dortronics 5215-SPB is a single gang exit release with a 1-1/2 inch square illuminated push button.
12) Will a stainless TS-32 panic station match the other switch plates in a commercial corridor?
The wall plate is satin stainless steel in a standard single gang footprint, so it lines up with the usual single gang device plates already in a commercial corridor. It is a commercial-duty station, and using the same model across a building means one spare on the shelf covers every opening. Only the button color changes between the three models, so a fleet can be standardized on red and still swap in a black or green head elsewhere without changing plate appearance.
