American Lock American Lock A3200WOMK Solid Steel Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different (Master Keyed) AME-A3200WOMK

American Lock A3200WOMK Solid Steel Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different (Master Keyed)

(No reviews yet) Write a Review

Model: AME-A3200WOMK 2KEY

In Stock (leaves warehouse same day if ordered before 3pm ET)

$55.89
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

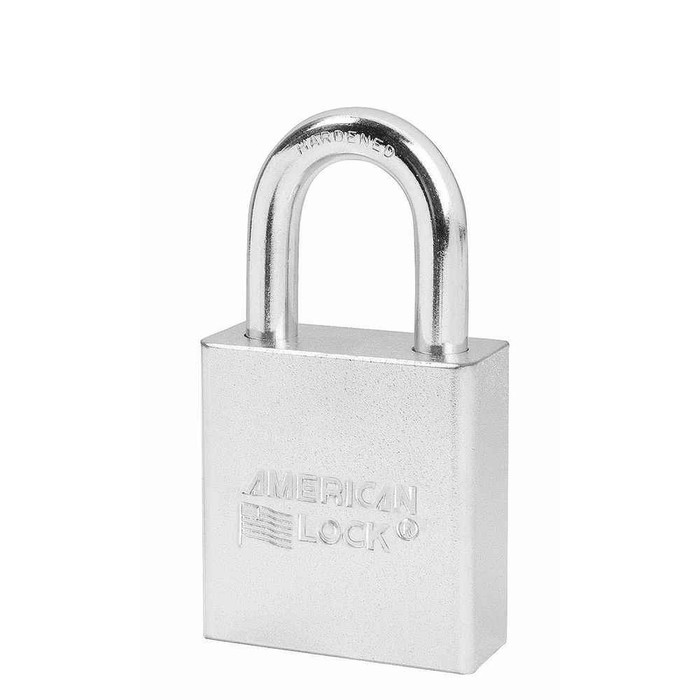

AMERICAN LOCK A3200WOMK SOLID STEEL SMALL FORMAT INTERCHANGEABLE CORE PADLOCK WITHOUT CYLINDER OVERVIEW

A3200WOMK Solid Steel Small Format Interchangeable Core Padlock. Small Format Interchangeable Cores & Padlocks - Aluminum.

The American Lock No. A3200WOMK Solid Steel Interchangeable Core padlock features a 1-3/4in (44mm) wide case hardened, chrome plated solid steel padlock and a 1-1/8in (29mm) tall, 5/16in (8mm) diameter hardened boron alloy shackle for superior cut resistance. Dual ball bearing locking mechanism resists pulling and prying. Padlock is available with or without core with a choice of 16 Small Format interchangeable core keyways including Best®, Arrow® & Falcon® to match this padlock to your door locks.

Buy the American Lock A3200WOMK Solid Steel Small Format Interchangeable Core Padlock for easy installation and dependable door hardware solution.

AMERICAN LOCK A3200WOMK SOLID STEEL SMALL FORMAT INTERCHANGEABLE CORE PADLOCK WITHOUT CYLINDER PRODUCT FEATURES

  • 1-3/4in (44mm) wide chrome plated solid steel body
  • Solid steel body resists cutting, sawing and corrosion
  • 1-1/8in (28mm) tall, 5/16in (8mm) diameter hardened boron alloy steel shackle for superior cut resistance
  • Dual stainless steel ball bearing locking mechanism that resists pulling and prying
  • Small Format Interchangeable Core padlock - 16 keyway options available
  • Security Gates & Fences
  • Self-Storage Units & Lockers
  • Secured Storage
  • Tool Cribs
  • Keying Options
  • Laser Engraving & Custom Marking
  • Shackle Options

AMERICAN LOCK SMALL FORMAT INTERCHANGEABLE CORES & PADLOCKS - SOLID STEEL COLLECTION

American Lock A3200WO (A3200WOKD) Solid Steel Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different
American Lock A3200WOUN Solid Steel Small Format Interchangeable Core Padlock Without Cylinder, Uncombinated
American Lock A3200WOKA Solid Steel Small Format Interchangeable Core Padlock Without Cylinder, Keyed Alike
American Lock A3200WOMK Solid Steel Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different (Master Keyed)
American Lock A3200WOKAMK Solid Steel Small Format Interchangeable Core Padlock Without Cylinder, Keyed Alike (Master Keyed)
American Lock A3201WO (A3201WOKD) Solid Steel Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different
American Lock A3201WOUN Solid Steel Small Format Interchangeable Core Padlock Without Cylinder, Uncombinated
American Lock A3201WOKA Solid Steel Small Format Interchangeable Core Padlock Without Cylinder, Keyed Alike
American Lock A3201WOMK Solid Steel Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different (Master Keyed)
American Lock A3201WOKAMK Solid Steel Small Format Interchangeable Core Padlock Without Cylinder, Keyed Alike (Master Keyed)
American Lock A3202WO (A3202WOKD) Solid Steel Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different
American Lock A3202WOUN Solid Steel Small Format Interchangeable Core Padlock Without Cylinder, Uncombinated
American Lock A3202WOKA Solid Steel Small Format Interchangeable Core Padlock Without Cylinder, Keyed Alike
American Lock A3202WOMK Solid Steel Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different (Master Keyed)
American Lock A3202WOKAMK Solid Steel Small Format Interchangeable Core Padlock Without Cylinder, Keyed Alike (Master Keyed)

RESOURCES & DOWNLOADS

American Lock A3200WOMK Solid Steel Small Format Interchangeable Core Padlock Catalog

Manufacturer Resources

Product Specs

Subcategory:
Solid Body Padlocks
Shelf Pack Qty:
6
Master Carton Qty:
24
Shackle Width:
3/4"
Shackle Diameter:
5/16"
Keyed:
Yes
Product Group:
Other / Miscellaneous Hardware
Product Subgroup:
Padlocks
Product Type:
Padlocks
Commercial/Residential:
Commercial
Cylinder Included:
No
Product Model:
A3200MK
Product Color:
Silver
Product Shackle Length:
1-1/8"
Product Style:
Small Format Interchangeable Cores & Padlocks
Product Category:
Other / Miscellaneous Hardware
Product Substrate:
Steel
Product Width:
1-3/4"
Department:
Door Hardware

American Lock AME-A3200WOMK 2KEY – Frequently Asked Questions

1) Does the American Lock A3200WOMK padlock come with a cylinder core?
No core is included. The A3200WOMK ships as a body only, prepped for a small format interchangeable core that you supply or order separately. That is the point of the WO (without cylinder) designation: a locksmith or facility keying its own system drops in an SFIC from the existing masterkey system so the padlock keys to the same key that already opens the doors. If you don't already run an SFIC system, budget for cores as a separate line item.
2) Will a Best, Arrow, or Falcon SFIC core fit the American Lock A3200WOMK padlock?
Yes. The A3200WO series takes small format interchangeable cores in a choice of 16 SFIC keyways, Best, Arrow and Falcon among them, so the padlock can be keyed into the same system as your door locks. Pull a core from your existing SFIC hardware with the control key and it seats in the padlock the same way.
3) What does the MK in American Lock A3200WOMK mean, and is it different from keyed alike?
MK means keyed different under a master key: each padlock has its own change key, and one master key opens the whole group. Keyed alike (the A3200WOKA) is the opposite arrangement, where every lock in the group opens on the same key. There is also an A3200WOKAMK, keyed alike within the group and still operated by a master. Property managers issuing individual locks to individual tenants or crews want the MK version; a single crew sharing one key wants KA.
4) Will a 5/16 inch shackle padlock fit through my hasp or chain link fence gate?
The shackle on the A3200WO solid steel padlock is 5/16 inch in diameter with a 3/4 inch clearance width and 1-1/8 inch of vertical clearance. That opening is what decides fit. Measure the hasp staple or the gate chain: 3/4 inch of horizontal room and 1-1/8 inch of height is what you need. On a heavy commercial hasp with a wide staple, or a thick padlock eye, the 3/4 inch shackle width is the number that rules it out, not the diameter.
5) I need a longer shackle than 1-1/8 inch on an American Lock SFIC padlock. What do I order?
Move up in the series. The A3200WO carries the short 1-1/8 inch shackle; the A3201WO and A3202WO are the longer shackle versions of the same solid steel SFIC padlock, and each one comes in the same keying arrangements (keyed different, uncombinated, keyed alike, master keyed, and keyed alike master keyed). If the shackle has to reach around a chain or a thick gate bracket, spec the A3201WO or A3202WO instead.
6) What is the difference between an interchangeable core padlock and a standard keyed padlock?
An SFIC padlock like the A3200WO has a removable core that pulls with a control key, so rekeying is a ten second swap and the padlock joins whatever masterkey system already runs your building. A conventional padlock, such as the Sargent 758 key retaining standard padlock or the Schlage KS23D brass padlock, is keyed at the factory and has to be pinned or replaced to change the key. If you have no SFIC system, a conventional padlock is simpler and needs no separate core purchase. If you already run Best, Arrow or Falcon cores, the SFIC body is the one that fits your program.
7) What is the closest equivalent to the American Lock A3200MK padlock if I need a removable core padlock from Sargent instead?
The Sargent 60-858-2 is a removable core padlock with a 2 inch stainless steel shackle, so it takes an interchangeable core the same way the American Lock A3200MK does. The difference is shackle geometry: the A3200MK carries a 1-1/8 inch shackle length in a 5/16 inch diameter, so it clears a much shorter loop than the Sargent's 2 inch shackle. If you are locking a hasp with tight clearance, the 1-1/8 inch shackle is the closer match; if you need to pass through a chain link or a thicker staple, the 2 inch Sargent shackle reaches further.
8) How wide is the American Lock A3200 padlock body, and will it clear a recessed hasp?
The body measures 1-3/4 inches wide in chrome plated solid steel. That is a full size commercial body, not a compact one, so on a recessed or shrouded hasp check that you have 1-3/4 inches of pocket. If the body has to sit inside a guard, measure the pocket before ordering.
9) Is the A3200 padlock strong enough for an outdoor gate or a self storage facility?
It is built for that duty. Solid steel body that resists cutting, sawing and corrosion, a hardened boron alloy shackle for cut resistance, and a dual stainless steel ball bearing locking mechanism that resists pulling and prying. American Lock lists the intended applications as security gates and fences, self storage units and lockers, secured storage, and tool cribs. It is a commercial grade lock, not a residential one.
10) Can I get an American Lock A3200 padlock with a chain so it doesn't get lost off the gate?
Yes. The A3200WOMK can be ordered with a #40 sash chain, 9 inches long, zinc plated, attached to the lock, or with no chain at all. The chain option is worth specifying for gates, lockers and tool cribs where a loose padlock walks away or ends up on the ground. Either chain choice is available with any of the key count options.
11) What other removable core padlocks could I use instead of the American Lock A3200WO?
Sargent's 60-858-2 is a removable core padlock with a 2 inch stainless steel shackle, so it covers the same job when you need far more shackle reach than the A3200's 1-1/8 inch. The Medeco 521 G8R is a weather tight padlock with a solid stainless steel body supplied less its pop out cylinder, which is the closer match if the lock sits in salt air or constant weather and you want stainless rather than chrome plated steel. Both take a cylinder you supply, same as the A3200WO.
12) Is a solid steel SFIC padlock the right choice for lockout tagout on machinery?
No. Use a dedicated safety padlock instead. The A3200WO is a solid steel security padlock for gates, storage and tool cribs, and it is heavy and conductive. For lockout tagout, ABUS builds the 72/30 anodized aluminum safety padlock with a 1-1/4 inch body and 3/16 inch shackle, the 74/40 insulated safety padlock with a 6 pin cylinder, and the 76/40 plastic covered aluminum core padlock. Those are the ones spec'd for electrical and machine isolation work.
13) What padlock should I use instead of the American Lock A3200MK on an exposed outdoor gate?
The A3200MK uses a chrome plated solid steel body that resists cutting, sawing and corrosion, and American Lock lists security gates and fences among its applications. For an opening with constant weather exposure, two peers are built specifically around it: the Medeco 521 G8R is a weather-tight padlock with a solid stainless steel body, supplied less the pop-out cylinder so you fit your own; the ABUS 76/40 uses a plastic-covered aluminum core body with a 1/4 inch shackle diameter, where the covering shields the body itself. The Medeco 521 keeps the supply-your-own-cylinder arrangement you already have with the A3200MK.
14) Which padlocks match the American Lock A3200MK 5/16 inch shackle diameter?
Shackle diameter decides whether the lock passes through your existing hasp or chain, so it is the first number to match. The American Lock A3200MK uses a 5/16 inch shackle diameter with a 3/4 inch shackle width. Two peers list the same 5/16 inch diameter: the Schlage KS23D/KS23F brass padlock and the Medeco 54515G XT electronic indoor/outdoor padlock, which is non-key retaining. Going heavier, the Medeco 5260 from the 52 Series is a brass body padlock with a 7/16 inch shackle diameter in satin chrome, which needs a larger opening in the hasp.
15) The American Lock A3200MK is key retaining. What is a non-key retaining padlock alternative?
Key retaining means the key stays captive while the shackle is open, which stops a locker or tool crib from being left unsecured with the key in a pocket. If you want the opposite behavior, so the key can be pulled while the lock hangs open, the Sargent 858 is a non-key retaining padlock with a stainless steel shackle in a US4 satin brass finish, and the Sargent 82-856 is non-key retaining with a 2 inch by 2 inch brass case and a stainless steel shackle. The Sargent 82-856 is a KESO Series lock, so it keys into a KESO system rather than a small format interchangeable core system.
16) Does an electronic padlock replace the American Lock A3200MK for an audit trail on a gate?
Not directly, because they are keyed by different means. The A3200MK is a mechanical padlock that accepts a small format interchangeable core in any of 16 keyways including Best, Arrow and Falcon, so it joins an existing mechanical key system. The Medeco 54515G XT is an electronic indoor/outdoor padlock, non-key retaining, with a 5/16 inch shackle diameter and a cylinder included, so it works off an electronic credential instead of a mechanical core. The shackle diameter matches the A3200MK's 5/16 inch, so the same hasp will accept either, but the keying programs do not overlap.
17) What is the difference between the American Lock A3200MK and the Sargent 758 for a master keyed building?
Both key into a master system, but through different hardware. The A3200MK is master keyed by the core you install: it comes without a cylinder and takes a small format interchangeable core in one of 16 keyways including Best, Arrow and Falcon, so it inherits whatever master keying that system already runs and can be rekeyed by pulling the core. The Sargent 758 is a key retaining standard padlock in a US4 satin brass finish from the 758 Series, keyed into a Sargent system. If your doors are already on small format cores, the A3200MK keeps the padlocks on the same keys as the doors.
18) How many American Lock A3200 padlocks come in a box for a bulk facility order?
Packed 6 per shelf pack and 24 per master carton. If you are keying out a storage facility or standardizing gate locks across a portfolio, order in multiples of 24 to take full cartons and keep the keying schedule tidy.
19) What color and finish is the American Lock A3200WO padlock body?
Silver, from chrome plating over a case hardened solid steel body. The plating is doing corrosion duty as much as appearance, which matters on exterior gates and fence lines. If a facility standardizes on brass tone hardware, the Sargent 858 comes in a US4 satin brass finish and the Medeco 5260 in satin chrome over a brass body.
20) I need a padlock that will not mar a painted or coated surface like the American Lock A3200MK might. What are my options?
The A3200MK has a chrome plated solid steel body in a silver finish, which is bare metal against whatever it swings into. Where a finished door, a boat fitting, or a coated cabinet is at stake, two peers put a covering between the lock and the surface: the ABUS 76/40 is a plastic-covered aluminum core padlock at 1 37/64 inch width with a 1/4 inch shackle diameter, and the ABUS T84MB/30 Nautic uses a black sleeve over a 1 17/64 inch body with a 13/64 inch shackle diameter. Both are narrower than the A3200MK's 1-3/4 inch body width and carry thinner shackles.
