American Lock American Lock A3202WOMK Solid Steel Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different (Master Keyed) AME-A3202WOMK

American Lock A3202WOMK Solid Steel Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different (Master Keyed)

(No reviews yet) Write a Review

Model: AME-A3202WOMK 2KEY

In Stock (leaves warehouse same day if ordered before 3pm ET)

$68.47
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

AMERICAN LOCK A3202WOMK SOLID STEEL SMALL FORMAT INTERCHANGEABLE CORE PADLOCK WITHOUT CYLINDER OVERVIEW

A3202WOMK Solid Steel Small Format Interchangeable Core Padlock. Small Format Interchangeable Cores & Padlocks - Aluminum.

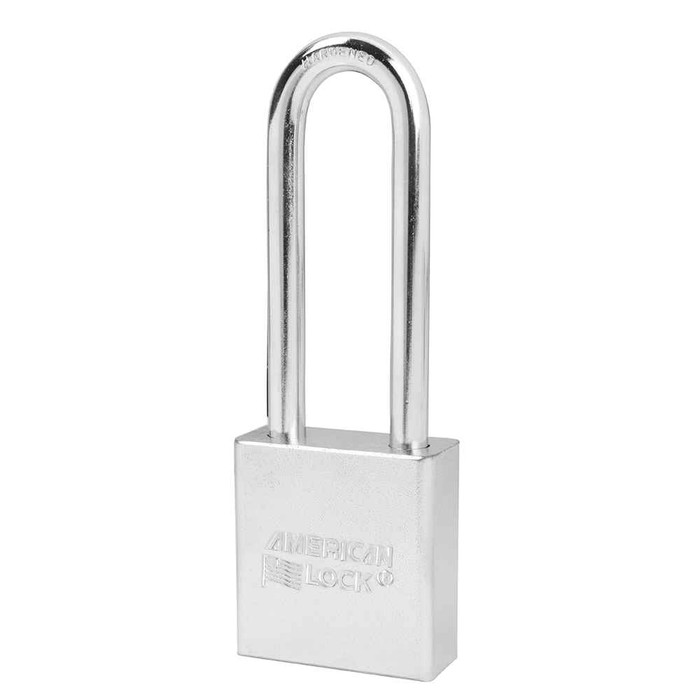

The American Lock No. A3202WOMK Solid Steel Interchangeable Core padlock features a 1-3/4in (44mm) wide case hardened, chrome plated solid steel padlock and a 3in (75mm) tall, 5/16in (8mm) diameter hardened boron alloy shackle for superior cut resistance. Dual ball bearing locking mechanism resists pulling and prying. Padlock is available with or without core with a choice of 16 Small Format interchangeable core keyways including Best®, Arrow® & Falcon® to match this padlock to your door locks.

Buy the American Lock A3202WOMK Solid Steel Small Format Interchangeable Core Padlock for easy installation and dependable door hardware solution.

AMERICAN LOCK A3202WOMK SOLID STEEL SMALL FORMAT INTERCHANGEABLE CORE PADLOCK WITHOUT CYLINDER PRODUCT FEATURES

  • 1-3/4in (44mm) wide chrome plated solid steel body
  • Solid steel body resists cutting, sawing and corrosion
  • 3in (76mm) tall, 5/16in (8mm) diameter hardened boron alloy steel shackle for superior cut resistance
  • Dual stainless steel ball bearing locking mechanism that resists pulling and prying
  • Small Format Interchangeable Core padlock - 16 keyway options available
  • Security Gates & Fences
  • Self-Storage Units & Lockers
  • Secured Storage
  • Tool Cribs
  • Keying Options
  • Shackle Options

AMERICAN LOCK SMALL FORMAT INTERCHANGEABLE CORES & PADLOCKS - SOLID STEEL COLLECTION

American Lock A3200WO (A3200WOKD) Solid Steel Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different
American Lock A3200WOUN Solid Steel Small Format Interchangeable Core Padlock Without Cylinder, Uncombinated
American Lock A3200WOKA Solid Steel Small Format Interchangeable Core Padlock Without Cylinder, Keyed Alike
American Lock A3200WOMK Solid Steel Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different (Master Keyed)
American Lock A3200WOKAMK Solid Steel Small Format Interchangeable Core Padlock Without Cylinder, Keyed Alike (Master Keyed)
American Lock A3201WO (A3201WOKD) Solid Steel Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different
American Lock A3201WOUN Solid Steel Small Format Interchangeable Core Padlock Without Cylinder, Uncombinated
American Lock A3201WOKA Solid Steel Small Format Interchangeable Core Padlock Without Cylinder, Keyed Alike
American Lock A3201WOMK Solid Steel Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different (Master Keyed)
American Lock A3201WOKAMK Solid Steel Small Format Interchangeable Core Padlock Without Cylinder, Keyed Alike (Master Keyed)
American Lock A3202WO (A3202WOKD) Solid Steel Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different
American Lock A3202WOUN Solid Steel Small Format Interchangeable Core Padlock Without Cylinder, Uncombinated
American Lock A3202WOKA Solid Steel Small Format Interchangeable Core Padlock Without Cylinder, Keyed Alike
American Lock A3202WOMK Solid Steel Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different (Master Keyed)
American Lock A3202WOKAMK Solid Steel Small Format Interchangeable Core Padlock Without Cylinder, Keyed Alike (Master Keyed)

RESOURCES & DOWNLOADS

American Lock A3202WOMK Solid Steel Small Format Interchangeable Core Padlock Catalog

Manufacturer Resources

Product Specs

Subcategory:
Solid Body Padlocks
Shelf Pack Qty:
6
Master Carton Qty:
24
Shackle Width:
3/4"
Shackle Diameter:
5/16"
Keyed:
Yes
Product Group:
Other / Miscellaneous Hardware
Product Subgroup:
Padlocks
Product Type:
Padlocks
Commercial/Residential:
Commercial
Cylinder Included:
No
Product Model:
A3202MK
Product Color:
Silver
Product Shackle Length:
3"
Product Style:
Small Format Interchangeable Cores & Padlocks
Product Category:
Other / Miscellaneous Hardware
Product Substrate:
Steel
Product Width:
1-3/4"
Department:
Door Hardware

American Lock AME-A3202WOMK 2KEY – Frequently Asked Questions

1) Does the American Lock A3202WOMK padlock come with a core or key?
No core is supplied. The A3202WOMK ships as a body only, prepped for a small format interchangeable core, so you add an SFIC core in your own keyway and keying. That is what lets it run on the same system as your door locks. Key count is an ordering choice at the core level, from 0 up to 4 keys per lock, with 2 keys per lock being the standard selection.
2) Will an American Lock A3202WOMK take a Best or Arrow SFIC core?
Yes. The A3202WOMK body accepts small format interchangeable cores in a choice of 16 SFIC keyways, including Best, Arrow and Falcon, which is how you match the padlock to the door cylinders already in the building. Supply the core in the keyway your system uses.
3) What does the MK in A3202WOMK mean for a master keyed building?
MK means the padlocks are keyed different but operate under a master key, so each lock has its own change key while one master opens them all. That is the setup a property manager wants for gates, storage cages and tool cribs where a super needs blanket access. If you want every padlock on the same change key under a master instead, the A3202WOKAMK is the keyed alike master keyed version; A3202WOUN is uncombinated if your locksmith is pinning the cores.
4) Will a 5/16 inch shackle fit my hasp and chain link gate?
The shackle is 5/16 inch diameter with a 3/4 inch clearance between the legs and 3 inches of shackle length, so it needs a hasp staple or chain link that passes through a 3/4 inch gap. The body is 1-3/4 inches wide. Measure the staple opening before ordering; a heavy weld-on gate hasp with a thicker loop will not accept a 5/16 inch shackle.
5) What is the closest equivalent to the American Lock A3202WOMK if our facility is keyed on a Sargent removable core system?
The Sargent 60-858-2 is a removable core padlock supplied with a 2 inch stainless steel shackle, so it takes a core rather than a fixed cylinder the same way the A3202WOMK does. The American Lock A3202WOMK ships without a cylinder so you install your own small format interchangeable core, and it carries a 3 inch shackle length with a 5/16 inch shackle diameter in a 1-3/4 inch wide steel body. If the site standard is Sargent cores and hardware, the 60-858-2 keeps the padlock inside that family; if the cores on hand are Best, Arrow or Falcon style small format, the A3202WOMK is the body that accepts them.
6) We do not run interchangeable cores. What padlock uses the same 5/16 inch shackle without needing a core installed?
The Schlage KS23D/KS23F is a brass bodied padlock with a 5/16 inch diameter shackle, matching the A3202WOMK on shackle diameter while coming as a complete keyed lock rather than a body that needs a core. The American Lock A3202WOMK is supplied without a cylinder, so it only functions once a small format interchangeable core is fitted. Choose the KS23D/KS23F where there is no core program to feed the padlock, and the A3202WOMK where the padlock has to fall under an existing master keyed core system.
7) What padlock should I use instead of the A3202WOMK on an exposed outdoor or coastal opening?
For weather exposed openings the Medeco 521 G8R is a weather-tight padlock with a solid stainless steel body, supplied less its pop-out cylinder, and the ABUS T84MB/30 Nautic uses a black sleeve over the body with a 13/64 inch shackle and a 1-17/64 inch body for marine use. The American Lock A3202WOMK uses a chrome plated solid steel body 1-3/4 inches wide with a 5/16 inch hardened shackle, so it is the heavier section of the three but without the sealed or sleeved weather construction of the Medeco 521 G8R and the T84MB/30.
8) Is this padlock tough enough for an outdoor gate or exposed storage yard?
The A3202 body is case hardened, chrome plated solid steel that resists cutting, sawing and corrosion, and the shackle is hardened boron alloy for cut resistance. A dual stainless steel ball bearing locking mechanism holds the shackle against pulling and prying. It is a commercial grade lock aimed at security gates and fences, self storage units and lockers, and tool cribs.
9) What is the difference between the A3200, A3201 and A3202 solid steel SFIC padlocks?
They are the same solid steel SFIC family, separated by shackle length. The A3202 carries a 3 inch shackle, which is the long shackle option for thick hasps, chain, or passing through a gate link. Pick the A3200 or A3201 when you need a shorter shackle and less exposed steel. Keying suffix is a separate choice on each: KD keyed different, KA keyed alike, MK master keyed, KAMK keyed alike master keyed, UN uncombinated.
10) Can I get this padlock with a chain so it stays attached to the gate?
Yes. The A3202WOMK can be ordered with a #40 sash chain, 9 inches (229mm) long, zinc plated, which keeps the lock tethered to the gate or locker so it does not walk off when opened. Ordering without a chain is the other option. Chain and key count are chosen independently.
11) I need lockout tagout padlocks, is this the right lock?
No. The A3202WOMK is a chrome plated solid steel security padlock for gates, storage and tool cribs, not a lockout device. For lockout work you want a non conductive or aluminum safety padlock, such as the ABUS 74/40 insulated safety padlock with a 6 pin cylinder, 1/4 inch shackle and 1-1/2 inch body, the ABUS 72/30 anodized aluminum safety padlock at 1-1/4 inch body and 3/16 inch shackle, or the plastic covered ABUS 76/40.
12) Is the American Lock A3202WOMK suitable for lockout tagout, or should I be looking at a safety padlock?
For lockout tagout the ABUS 72/30 anodized aluminum safety padlock or the ABUS 74/40 insulated safety padlock with a 6 pin cylinder are the purpose built choices; the 72/30 uses a 1-1/4 inch body with a 3/16 inch shackle and the 74/40 a 1-1/2 inch body with a 1/4 inch shackle, both lighter sections than the American Lock A3202WOMK. The A3202WOMK is a commercial steel padlock 1-3/4 inches wide with a 5/16 inch shackle, supplied without a cylinder for small format core keying, which is aimed at gates, fences, storage units and tool cribs rather than personal energy isolation.
13) Is there a padlock that gives me an audit trail instead of mechanical master keying like the A3202WOMK?
The Medeco 54515G XT is an electronic indoor/outdoor padlock, non-key retaining, with a 5/16 inch shackle diameter and supplied with its cylinder. It matches the American Lock A3202WOMK on shackle diameter but replaces mechanical keying with an electronic credential. The A3202WOMK is a mechanical padlock supplied without a cylinder, keyed different and master keyed once you fit a small format core, which is the route if access is controlled by an existing master key hierarchy rather than programmed keys.
14) How many A3202 padlocks come in a case for a bulk facility order?
Packaging runs 6 per shelf pack and 24 per master carton, which is the unit to work from when you are standardizing padlocks across a campus or a multi site MRO order. Remember the cores are separate, so plan core quantity to match.
15) Is the ABUS 76/40 a substitute for the American Lock A3202WOMK on a fence gate?
They are built differently. The ABUS 76/40 is a plastic-covered aluminum core padlock with a 1/4 inch shackle diameter and a body about 1-37/64 inches wide, where the plastic cover protects the locked surface from marring. The American Lock A3202WOMK is a chrome plated solid steel body 1-3/4 inches wide with a 5/16 inch hardened boron alloy shackle and a dual ball bearing locking mechanism, and it takes a small format interchangeable core rather than a fixed cylinder. On a fence gate the A3202WOMK is the heavier steel section and the one that keys into a core program; the 76/40 is the lighter covered-body option.
