American Lock American Lock A3201WOMK Solid Steel Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different (Master Keyed) AME-A3201WOMK

American Lock A3201WOMK Solid Steel Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different (Master Keyed)

(No reviews yet) Write a Review

Model: AME-A3201WOMK 2KEY

In Stock (leaves warehouse same day if ordered before 3pm ET)

$61.57
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

AMERICAN LOCK A3201WOMK SOLID STEEL SMALL FORMAT INTERCHANGEABLE CORE PADLOCK WITHOUT CYLINDER OVERVIEW

A3201WOMK Solid Steel Small Format Interchangeable Core Padlock. Small Format Interchangeable Cores & Padlocks - Aluminum.

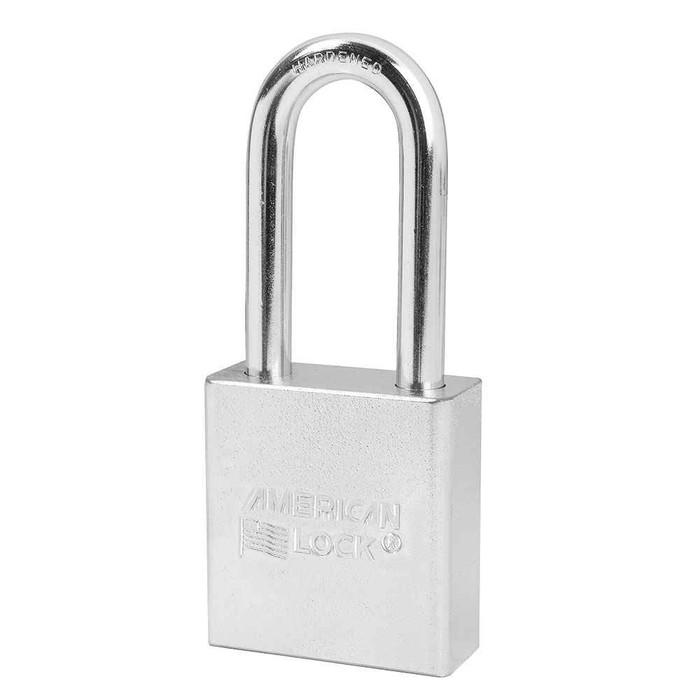

The American Lock No. A3201WOMK Solid Steel Interchangeable Core padlock features a 1-3/4in (44mm) wide case hardened, chrome plated solid steel padlock and a 2in (51mm) tall, 5/16in (8mm) diameter hardened boron alloy shackle for superior cut resistance. Dual ball bearing locking mechanism resists pulling and prying. Padlock is available with or without core with a choice of 16 Small Format interchangeable core keyways including Best®, Arrow® & Falcon® to match this padlock to your door locks.

Buy the American Lock A3201WOMK Solid Steel Small Format Interchangeable Core Padlock for easy installation and dependable door hardware solution.

AMERICAN LOCK A3201WOMK SOLID STEEL SMALL FORMAT INTERCHANGEABLE CORE PADLOCK WITHOUT CYLINDER PRODUCT FEATURES

  • 1-3/4in (44mm) wide chrome plated solid steel body
  • Solid steel body resists cutting, sawing and corrosion
  • 2in (51mm) tall, 5/16in (8mm) diameter hardened boron alloy steel shackle for superior cut resistance
  • Dual stainless steel ball bearing locking mechanism that resists pulling and prying
  • Small Format Interchangeable Core padlock - 16 keyway options available
  • Security Gates & Fences
  • Self-Storage Units & Lockers
  • Secured Storage
  • Tool Cribs
  • Keying Options
  • Shackle Options

AMERICAN LOCK SMALL FORMAT INTERCHANGEABLE CORES & PADLOCKS - SOLID STEEL COLLECTION

American Lock A3200WO (A3200WOKD) Solid Steel Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different
American Lock A3200WOUN Solid Steel Small Format Interchangeable Core Padlock Without Cylinder, Uncombinated
American Lock A3200WOKA Solid Steel Small Format Interchangeable Core Padlock Without Cylinder, Keyed Alike
American Lock A3200WOMK Solid Steel Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different (Master Keyed)
American Lock A3200WOKAMK Solid Steel Small Format Interchangeable Core Padlock Without Cylinder, Keyed Alike (Master Keyed)
American Lock A3201WO (A3201WOKD) Solid Steel Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different
American Lock A3201WOUN Solid Steel Small Format Interchangeable Core Padlock Without Cylinder, Uncombinated
American Lock A3201WOKA Solid Steel Small Format Interchangeable Core Padlock Without Cylinder, Keyed Alike
American Lock A3201WOMK Solid Steel Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different (Master Keyed)
American Lock A3201WOKAMK Solid Steel Small Format Interchangeable Core Padlock Without Cylinder, Keyed Alike (Master Keyed)
American Lock A3202WO (A3202WOKD) Solid Steel Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different
American Lock A3202WOUN Solid Steel Small Format Interchangeable Core Padlock Without Cylinder, Uncombinated
American Lock A3202WOKA Solid Steel Small Format Interchangeable Core Padlock Without Cylinder, Keyed Alike
American Lock A3202WOMK Solid Steel Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different (Master Keyed)
American Lock A3202WOKAMK Solid Steel Small Format Interchangeable Core Padlock Without Cylinder, Keyed Alike (Master Keyed)

RESOURCES & DOWNLOADS

American Lock A3201WOMK Solid Steel Small Format Interchangeable Core Padlock Catalog

Manufacturer Resources

Product Specs

Subcategory:
Solid Body Padlocks
Shelf Pack Qty:
6
Master Carton Qty:
24
Shackle Width:
3/4"
Shackle Diameter:
5/16"
Keyed:
Yes
Product Group:
Other / Miscellaneous Hardware
Product Subgroup:
Padlocks
Product Type:
Padlocks
Commercial/Residential:
Commercial
Cylinder Included:
No
Product Model:
A3201MK
Product Color:
Silver
Product Shackle Length:
2"
Product Style:
Small Format Interchangeable Cores & Padlocks
Product Category:
Other / Miscellaneous Hardware
Product Substrate:
Steel
Product Width:
1-3/4"
Department:
Door Hardware

American Lock AME-A3201WOMK 2KEY – Frequently Asked Questions

1) Does the American Lock A3201WOMK come with a cylinder, or do I have to supply my own core?
No core is included. The A3201WOMK ships as a padlock body only, prepped for a small format interchangeable core, so you drop in the SFIC core from your existing system. That is the point of buying it this way: the padlock ends up on the same keyway and key system as your doors instead of on its own key.
2) Will a Best, Arrow or Falcon SFIC core fit this American Lock padlock?
Yes. The body accepts small format interchangeable cores, and American Lock offers 16 SFIC keyway options for it including Best, Arrow and Falcon, so a core already cut to your building's keyway will seat in it. Because it is sold without a core, you match the keyway to your door hardware rather than the padlock dictating it.
3) What does the MK in A3201WOMK mean for keying?
MK means master keyed: each lock is keyed differently on its own change key but all open under a common master. For a property manager that means maintenance carries one key for every gate and storage door while each tenant or department keeps a unique key. If you want every padlock to take the same change key instead, the keyed alike version in the same solid steel family is the A3201WOKA, and A3201WOKAMK is keyed alike under a master.
4) What shackle clearance does the A3201WOMK give me for a gate hasp or chain link?
The shackle stands 2 inches tall with a 3/4 inch clearance between the legs and a 5/16 inch diameter. Measure your hasp eye or chain link opening against 5/16 inch, and the thickness of the two hasp leaves plus any bracket against the 3/4 inch inside width. Body width is 1-3/4 inches, so it seats on standard commercial gate and locker hasps.
5) I do not run an interchangeable core system - what padlock should I buy instead of the A3201WOMK?
The A3201WOMK is supplied without a cylinder and expects you to drop in a small format interchangeable core, so it is only useful if you already key to an SFIC system. If you do not, the Schlage KS23D/KS23F brass padlock uses the same 5/16 inch shackle diameter and comes as a conventional keyed brass padlock, and the Sargent 758 is a key retaining standard padlock in a US4 satin brass finish.
6) Is the American Lock A3201WOMK suitable for lockout/tagout, or should I use a different padlock?
The A3201WOMK is a commercial solid steel padlock built for gates, fences, self-storage units, lockers and tool cribs, and it is master keyed - which is the opposite of what lockout/tagout requires. For LOTO use a dedicated safety padlock such as the ABUS 72/30 anodized aluminum safety padlock with a 1-1/4 inch body and 3/16 inch shackle, or the ABUS 74/40 insulated safety padlock with a 6-pin cylinder, 1/4 inch shackle diameter and 1-1/2 inch body.
7) Is a 2 inch shackle enough, or should I go to a different A3200 model?
The 2 inch shackle on the A3201 suits gate hasps, fence chain, lockers and tool cribs where you need reach through a link or a padlock eye. If you need less exposed shackle for a tighter hasp or a shorter reach, look at the A3200WOMK in the same solid steel SFIC family; for more reach, the A3202WOMK. All three take the same small format cores, so switching shackle length does not change your keying.
8) Is this padlock tough enough for outdoor gates and fencing?
It is built for it. The body is chrome plated solid steel that resists cutting, sawing and corrosion, and the shackle is hardened boron alloy steel for cut resistance. A dual stainless steel ball bearing locking mechanism holds the shackle against pulling and prying. The finish reads silver, and the lock is classed for commercial use, not residential duty.
9) Can I get this padlock with a chain so it stays attached to the gate?
Yes. The A3201WOMK can be ordered with a #40 sash chain, 9 inches long, zinc plated, which keeps the lock tethered so it does not get dropped in the gravel or walked off. If you do not want the tether, the same lock is available with no chain.
10) How many keys come with each lock, and can I order it with no keys at all?
Key count is something you specify: 0, 1, 2 (standard), 3, or 4 keys per lock. The zero-key option exists for locksmiths and facilities that key and cut their own cores in house, since the padlock ships without a cylinder anyway. Pick 3 or 4 if several staff need access to the same lock without duplicating later.
11) What other removable core padlocks could I use instead of the American Lock A3201WOMK?
If you want a removable core padlock with the same 2 inch shackle length, the Sargent 60-858-2 is a removable core padlock with a 2 inch stainless steel shackle. The Medeco 521 G8R is a weather-tight padlock with a solid stainless steel body supplied less its pop-out cylinder, if corrosion exposure is the bigger concern than matching an SFIC keyway. Note that neither is an American Lock SFIC body, so your existing Best, Arrow or Falcon cores will not carry over.
12) Are the ABUS 72/30 or 74/40 padlocks a substitute for this one?
No. The ABUS 72/30 is an anodized aluminum safety padlock with a 1-1/4 inch body and 3/16 inch shackle, and the 74/40 is an insulated safety padlock with a 1/4 inch shackle and 1-1/2 inch body. Those are lockout/tagout style locks, lighter bodies and thinner shackles than the 5/16 inch boron alloy shackle and solid steel body here, and they do not take small format interchangeable cores. For gate and storage security on a master key system, stay with the SFIC solid steel padlock.
13) If I want a padlock that ships ready to use with its cylinder already in it, what should I look at?
The A3201WOMK is a body-only lock and needs a core before it works. If you would rather not source cores, the Schlage KS23D/KS23F is a brass padlock with a 5/16 inch shackle diameter, and the Medeco 5260 is a brass body padlock with a 7/16 inch shackle and M3 key technology in satin chrome. Those come as complete locks rather than SFIC shells, so they will not join a Best, Arrow or Falcon master key system.
14) For an exposed outdoor gate, is the solid steel A3201WOMK the right choice or is there a better body material?
The A3201WOMK uses a chrome plated solid steel body that the manufacturer describes as resisting cutting, sawing and corrosion, in a 1-3/4 inch width. If you want a non-ferrous or sealed body for a wet or coastal opening, the Medeco 521 G8R is a weather-tight padlock with a solid stainless steel body supplied less the pop-out cylinder, and the Medeco 5260 uses a brass body with a 7/16 inch shackle diameter in satin chrome.
15) What padlock gives me audit trail or electronic access instead of the mechanical A3201WOMK?
The A3201WOMK is a purely mechanical padlock that accepts a small format interchangeable core and is keyed different under a master key. If you need electronic credentials and access records, the Medeco 54515G XT is an electronic indoor/outdoor padlock with a 5/16 inch shackle diameter supplied with its cylinder, so it matches the A3201WOMK's shackle diameter while changing how the lock is opened.
16) What is an alternative to the A3201WOMK if I want a high-security key system rather than a standard SFIC keyway?
The A3201WOMK ships without a cylinder and is designed to take a small format interchangeable core in one of 16 keyways including Best, Arrow and Falcon. If your facility standardizes on a patented high-security key system instead, the Sargent 82-856 is a non-key-retaining padlock on the KESO system with a 2 inch by 2 inch brass case and stainless steel shackle, and the Medeco 5260 uses M3 key technology in a brass body.
17) I'm buying padlocks for a whole facility. How do these pack?
They pack 6 to a shelf pack and 24 to a master carton, which is the easy way to standardize a run of gates, storage units or lockers on one master key system. Ordering in master carton multiples keeps the whole batch on the same specification.
18) I need a padlock that will not scratch a painted or coated surface - what do I use instead of the A3201WOMK?
The A3201WOMK has a bare chrome plated solid steel body, so it can mark finished surfaces it swings against. For sensitive surfaces the ABUS 76/40 is a plastic-covered aluminum core padlock with a 1/4 inch shackle diameter and a 1-37/64 inch width, and the ABUS T84MB/30 Nautic uses a black sleeve over the body with a 13/64 inch shackle diameter and a 1-17/64 inch body width.
