American Lock American Lock A3560WOMK 1-3/4in Solid Brass Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different (Master Keyed) AME-A3560WOMK

American Lock A3560WOMK 1-3/4in Solid Brass Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different (Master Keyed)

(No reviews yet) Write a Review

Model: AME-A3560WOMK 2KEY

In Stock (leaves warehouse same day if ordered before 3pm ET)

$58.70
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

AMERICAN LOCK A3560WOMK 1-3/4IN SOLID BRASS SMALL FORMAT INTERCHANGEABLE CORE PADLOCK WITHOUT CYLINDER OVERVIEW

A3560WOMK 1-3/4in Solid Brass Small Format Interchangeable Core Padlock Without Cylinder. Small Format Interchangeable Cores & Padlocks - 1-3/4in Solid Brass.

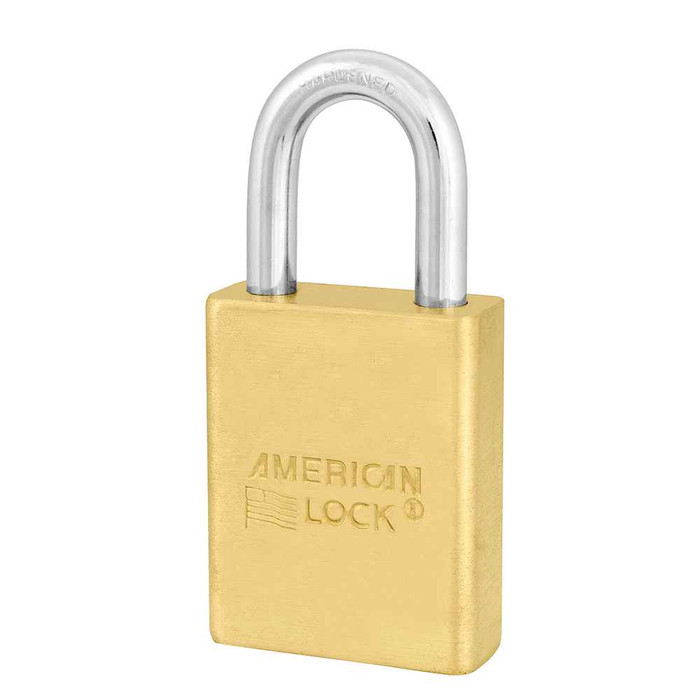

The American Lock No. A3560WOMK Solid Brass Interchangeable Core padlock features a 1-3/4in (44mm) wide solid brass body and a 1-1/8in (29mm) tall, 5/16in (8mm) diameter hardened boron alloy shackle for superior cut resistance. Dual ball bearing locking mechanism resists pulling and prying. Padlock is available with or without core with a choice of 16 Small Format interchangeable core keyways including Best®, Arrow® & Falcon® to match this padlock to your door locks.

Buy the American Lock A3560WOMK 1-3/4in Solid Brass Small Format Interchangeable Core Padlock for easy installation and dependable door hardware solution.

AMERICAN LOCK A3560WOMK 1-3/4IN SOLID BRASS SMALL FORMAT INTERCHANGEABLE CORE PADLOCK WITHOUT CYLINDER PRODUCT FEATURES

  • 1-3/4in (44mm) wide solid brass body
  • Brass body provides extra corrosion resistance in caustic, corrosive, salty environments
  • 1-1/8in (28mm) tall, 5/16in (8mm) diameter hardened boron alloy steel shackle for superior cut resistance
  • Dual stainless steel ball bearing locking mechanism that resists pulling and prying
  • Small Format Interchangeable Core padlock - 16 keyway options available
  • Marine & Offshore Security
  • Marine Environments
  • Tool Cribs
  • Utility Industry
  • Keying Options
  • Shackle Options

AMERICAN LOCK SMALL FORMAT INTERCHANGEABLE CORES & PADLOCKS - 1-3/4IN SOLID BRASS COLLECTION

American Lock A3560WO (A3560WOKD) 1-3/4in Solid Brass Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different
American Lock A3560WOUN 1-3/4in Solid Brass Small Format Interchangeable Core Padlock Without Cylinder, Uncombinated
American Lock A3560WOKA 1-3/4in Solid Brass Small Format Interchangeable Core Padlock Without Cylinder, Keyed Alike
American Lock A3560WOMK 1-3/4in Solid Brass Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different (Master Keyed)
American Lock A3560WOKAMK 1-3/4in Solid Brass Small Format Interchangeable Core Padlock Without Cylinder, Keyed Alike (Master Keyed)
American Lock A3561WO (A3561WOKD) 1-3/4in Solid Brass Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different
American Lock A3561WOUN 1-3/4in Solid Brass Small Format Interchangeable Core Padlock Without Cylinder, Uncombinated
American Lock A3561WOKA 1-3/4in Solid Brass Small Format Interchangeable Core Padlock Without Cylinder, Keyed Alike
American Lock A3561WOMK 1-3/4in Solid Brass Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different (Master Keyed)
American Lock A3561WOKAMK 1-3/4in Solid Brass Small Format Interchangeable Core Padlock Without Cylinder, Keyed Alike (Master Keyed)
American Lock A3562WO (A3562WOKD) 1-3/4in Solid Brass Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different
American Lock A3562WOUN 1-3/4in Solid Brass Small Format Interchangeable Core Padlock Without Cylinder, Uncombinated
American Lock A3562WOKA 1-3/4in Solid Brass Small Format Interchangeable Core Padlock Without Cylinder, Keyed Alike
American Lock A3562WOMK 1-3/4in Solid Brass Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different (Master Keyed)
American Lock A3562WOKAMK 1-3/4in Solid Brass Small Format Interchangeable Core Padlock Without Cylinder, Keyed Alike (Master Keyed)

RESOURCES & DOWNLOADS

American Lock A3560WOMK 1-3/4in Solid Brass Small Format Interchangeable Core Padlock Without Cylinder Catalog

Manufacturer Resources

Product Specs

Subcategory:
Solid Body Padlocks
Shelf Pack Qty:
6
Master Carton Qty:
24
Shackle Width:
3/4"
Shackle Diameter:
5/16"
Keyed:
Yes
Product Group:
Other / Miscellaneous Hardware
Product Subgroup:
Padlocks
Product Type:
Padlocks
Commercial/Residential:
Commercial
Cylinder Included:
No
Product Model:
A3560MK
Product Color:
Gold
Product Shackle Length:
1-1/8"
Product Style:
Small Format Interchangeable Cores & Padlocks - 1-3/4in Wide
Product Category:
Other / Miscellaneous Hardware
Product Substrate:
Brass
Product Width:
1-3/4"
Department:
Door Hardware

American Lock AME-A3560WOMK 2KEY – Frequently Asked Questions

1) Does the American Lock A3560WOMK padlock come with a cylinder or core?
No core is included. The A3560WOMK ships as a body only, prepped for a small format interchangeable core that you supply or have your locksmith pin. That is why the number of keys is an ordering choice ranging from 0 keys per lock up to 4 keys per lock. If you want the lock ready to use out of the box, you need a different configuration, because this one is built to accept your facility's existing SFIC.
2) Will this American Lock padlock take a Best, Arrow or Falcon SFIC core so it keys into my building's system?
Yes. The A3560WOMK accepts small format interchangeable cores, with a choice of 16 SFIC keyways including Best, Arrow and Falcon, so the padlock can be brought onto the same key system as your door locks. It is set up keyed different with master keying, meaning each padlock runs its own change key while a master key opens the group.
3) What is the difference between keyed different master keyed, keyed alike, and uncombinated versions of the A3560WO padlock?
Same 1-3/4 inch brass body in every case, the difference is only how the keying is set up. The A3560WOMK is keyed different with a master key over the group, so every lock has its own key and one master opens them all. A3560WOKA is keyed alike, one key works every lock. A3560WOKAMK is keyed alike with a master over it. A3560WOUN is uncombinated, shipped with no keying so a locksmith pins it. A3560WO (A3560WOKD) is keyed different with no master.
4) Will a 1-1/8 inch shackle padlock fit through my hasp or chain link gate?
Check your clearance carefully. The shackle on this American Lock brass padlock is 1-1/8 inches tall, 3/4 inch wide between the legs, and 5/16 inch in diameter. That clears a standard hasp staple but is short for a chain link gate or a thick hasp stack. If you need more vertical clearance, the A3561WO and A3562WO run the same 1-3/4 inch brass body with longer shackles.
5) Can I use the American Lock A3560WOMK for lockout/tagout on electrical equipment?
The A3560WOMK is a solid brass commercial padlock with a hardened boron alloy shackle, built for tool cribs, utility and marine security rather than as a dedicated safety lock. For lockout/tagout, the ABUS 72/30 is an anodized aluminum safety padlock with a 1-1/4 inch body and 3/16 inch shackle, the ABUS 74/40 is an insulated safety padlock with a 6-pin cylinder and 1/4 inch shackle, and the ABUS 76/40 is a plastic-covered aluminum core padlock with a 1/4 inch shackle. All three use lighter shackles than the A3560WOMK's 5/16 inch.
6) What is the closest brass-body padlock to the American Lock A3560WOMK if I need one that ships with the cylinder already in it?
The A3560WOMK is a solid brass padlock supplied without a cylinder, so a core has to be added before it works. If you want a brass padlock that arrives complete, the Schlage KS23D/KS23F is a brass padlock with a 5/16 inch diameter shackle, matching the A3560WOMK's 5/16 inch shackle diameter. The Medeco 5260 is also a brass body padlock, but its shackle diameter is 7/16 inch, so it will need a larger hasp opening than the American Lock.
7) I need audit trail and access scheduling on a padlock - is the American Lock A3560WOMK the right choice?
No. The A3560WOMK is a mechanical small format interchangeable core padlock with a brass body and a 1-1/8 inch shackle clearance. For electronic credential control, the Medeco 54515G XT is an electronic indoor/outdoor padlock supplied with cylinder, non-key-retaining, with a 5/16 inch shackle diameter - the same shackle diameter as the A3560WOMK, so it fits comparable hasps.
8) Is a brass padlock the right choice for outdoor, coastal or wash-down locations?
That is exactly what this one is built for. The solid brass body gives extra corrosion resistance in caustic, corrosive and salty environments, and American Lock points the 1-3/4 inch brass series at marine and offshore security, marine environments, tool cribs and utility work. The shackle is hardened boron alloy steel for cut resistance, and a dual stainless steel ball bearing locking mechanism resists pulling and prying.
9) Can I get this padlock with a chain attached so it does not get lost on the gate?
Yes. The A3560WOMK can be ordered with a #40 sash chain, 9 inches (229mm) long, zinc plated, or with no chain at all. The chain option is useful on utility cabinets and gates where a loose padlock walks off.
10) How many keys per lock do I get, and can I order extras for a maintenance crew?
Key count is something you pick when ordering. Standard is 2 keys per lock, and you can also take 1, 3, or 4 keys per lock, or 0 keys if your locksmith is combinating the cores in house. For a crew where several techs carry the same change key, go to 3 or 4.
11) How does the American Lock A3560WO compare with Sargent or Schlage brass padlocks?
All are brass body commercial padlocks, but the keying setup differs. The A3560WOMK is sold without a core so you drop in your own small format interchangeable core. Sargent's 60-858-2 is a removable core padlock with a 2 inch stainless steel shackle if you need much more shackle height. The Sargent 758 is key retaining and the 858 is non key retaining, both in US4 satin brass. Schlage's KS23D/KS23F is a brass padlock with the same 5/16 inch shackle diameter as the American Lock.
12) For coastal and marine use, how does the American Lock A3560WOMK compare to a stainless padlock?
The A3560WOMK uses a solid brass body, which the manufacturer calls out for corrosion resistance in caustic, corrosive and salty environments, and it is described for marine and offshore security. The Medeco 521 G8R is a weather-tight padlock with a solid stainless steel body, and the ABUS T84MB/30 Nautic uses a black sleeve over the body with a 13/64 inch shackle - a much lighter shackle than the A3560WOMK's 5/16 inch.
13) My crew keeps walking off with keys - is there a key-retaining alternative to the American Lock A3560WOMK?
If you need the key trapped in the lock while it is open, the Sargent 758 is a key retaining standard padlock in a US4 satin brass finish. The Sargent 858 and the Sargent 82-856, with its 2 inch by 2 inch brass case and stainless steel shackle, are both non-key-retaining. The A3560WOMK is a brass body padlock supplied without a cylinder, so its retention behavior follows the small format core you install in it.
14) The hasp on my gate needs more shackle clearance than the American Lock A3560WOMK gives - what should I use instead?
The A3560WOMK has a 1-1/8 inch shackle height with a 3/4 inch shackle width, which suits a tight hasp. For thicker hasps or chain, the Sargent 60-858-2 carries a 2 inch stainless steel shackle, giving considerably more clearance. If you prefer to stay with the American Lock, it is also offered with a 9 inch #40 zinc plated sash chain to bridge the gap.
