American Lock A3562WOMK 1-3/4i...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$66.29
American Lock American Lock A3562WOMK 1-3/4in Solid Brass Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different (Master Keyed) AME-A3562WOMK

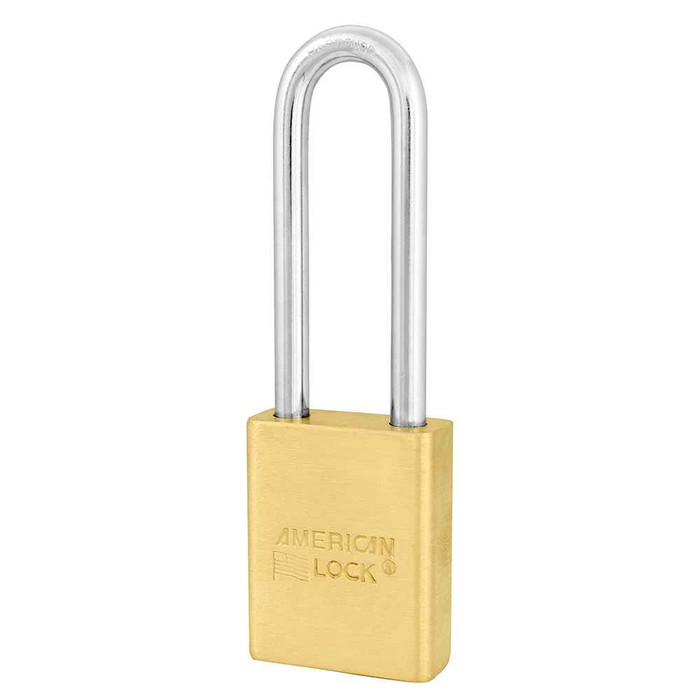

American Lock A3562WOMK 1-3/4in Solid Brass Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different (Master Keyed)

(No reviews yet) Write a Review

Model: AME-A3562WOMK 2KEY

In Stock (leaves warehouse same day if ordered before 3pm ET)

$66.29
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

AMERICAN LOCK A3562WOMK 1-3/4IN SOLID BRASS SMALL FORMAT INTERCHANGEABLE CORE PADLOCK WITHOUT CYLINDER OVERVIEW

A3562WOMK 1-3/4in Solid Brass Small Format Interchangeable Core Padlock Without Cylinder. Small Format Interchangeable Cores & Padlocks - 1-3/4in Solid Brass.

The American Lock No. A3562WOMK Solid Brass Interchangeable Core padlock features a 1-3/4in (44mm) wide solid brass body and a 3in (75mm) tall, 5/16in (8mm) diameter hardened boron alloy shackle for superior cut resistance. Dual ball bearing locking mechanism resists pulling and prying. Padlock is available with or without core with a choice of 16 Small Format interchangeable core keyways including Best®, Arrow® & Falcon® to match this padlock to your door locks.

Buy the American Lock A3562WOMK 1-3/4in Solid Brass Small Format Interchangeable Core Padlock for easy installation and dependable door hardware solution.

AMERICAN LOCK A3562WOMK 1-3/4IN SOLID BRASS SMALL FORMAT INTERCHANGEABLE CORE PADLOCK WITHOUT CYLINDER PRODUCT FEATURES

  • 1-3/4in (44mm) wide solid brass body
  • Brass body provides extra corrosion resistance in caustic, corrosive, salty environments
  • 3in (76mm) tall, 5/16in (8mm) diameter hardened boron alloy steel shackle for superior cut resistance
  • Dual stainless steel ball bearing locking mechanism that resists pulling and prying
  • Small Format Interchangeable Core padlock - 16 keyway options available
  • Marine & Offshore Security
  • Marine Environments
  • Tool Cribs
  • Utility Industry
  • Keying Options
  • Laser Engraving & Custom Marking
  • Shackle Options

AMERICAN LOCK SMALL FORMAT INTERCHANGEABLE CORES & PADLOCKS - 1-3/4IN SOLID BRASS COLLECTION

American Lock A3560WO (A3560WOKD) 1-3/4in Solid Brass Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different
American Lock A3560WOUN 1-3/4in Solid Brass Small Format Interchangeable Core Padlock Without Cylinder, Uncombinated
American Lock A3560WOKA 1-3/4in Solid Brass Small Format Interchangeable Core Padlock Without Cylinder, Keyed Alike
American Lock A3560WOMK 1-3/4in Solid Brass Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different (Master Keyed)
American Lock A3560WOKAMK 1-3/4in Solid Brass Small Format Interchangeable Core Padlock Without Cylinder, Keyed Alike (Master Keyed)
American Lock A3561WO (A3561WOKD) 1-3/4in Solid Brass Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different
American Lock A3561WOUN 1-3/4in Solid Brass Small Format Interchangeable Core Padlock Without Cylinder, Uncombinated
American Lock A3561WOKA 1-3/4in Solid Brass Small Format Interchangeable Core Padlock Without Cylinder, Keyed Alike
American Lock A3561WOMK 1-3/4in Solid Brass Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different (Master Keyed)
American Lock A3561WOKAMK 1-3/4in Solid Brass Small Format Interchangeable Core Padlock Without Cylinder, Keyed Alike (Master Keyed)
American Lock A3562WO (A3562WOKD) 1-3/4in Solid Brass Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different
American Lock A3562WOUN 1-3/4in Solid Brass Small Format Interchangeable Core Padlock Without Cylinder, Uncombinated
American Lock A3562WOKA 1-3/4in Solid Brass Small Format Interchangeable Core Padlock Without Cylinder, Keyed Alike
American Lock A3562WOMK 1-3/4in Solid Brass Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different (Master Keyed)
American Lock A3562WOKAMK 1-3/4in Solid Brass Small Format Interchangeable Core Padlock Without Cylinder, Keyed Alike (Master Keyed)

RESOURCES & DOWNLOADS

American Lock A3562WOMK 1-3/4in Solid Brass Small Format Interchangeable Core Padlock Without Cylinder Catalog

Manufacturer Resources

Product Specs

Subcategory:
Solid Body Padlocks
Shelf Pack Qty:
6
Master Carton Qty:
24
Shackle Width:
3/4"
Shackle Diameter:
5/16"
Keyed:
Yes
Product Group:
Other / Miscellaneous Hardware
Product Subgroup:
Padlocks
Product Type:
Padlocks
Commercial/Residential:
Commercial
Cylinder Included:
No
Product Model:
A3562MK
Product Color:
Gold
Product Shackle Length:
3"
Product Style:
Small Format Interchangeable Cores & Padlocks - 1-3/4in Wide
Product Category:
Other / Miscellaneous Hardware
Product Substrate:
Brass
Product Width:
1-3/4"
Department:
Door Hardware

American Lock AME-A3562WOMK 2KEY – Frequently Asked Questions

1) Does the American Lock A3562WOMK padlock come with a core, or do I have to order the cylinder separately?
No core is included. The A3562WOMK ships as a body only, prepped for a small format interchangeable core, so you supply the SFIC core in your own keyway and keying. That is the point of the WO (without cylinder) designation - a locksmith or facility with an existing SFIC system pins and stamps its own cores, and the padlock joins the system rather than sitting outside it.
2) Can I get an American Lock SFIC padlock keyed into my existing Best or Falcon master key system?
Yes. The A3562 brass SFIC body accepts small format interchangeable cores in a choice of 16 keyways, including Best, Arrow and Falcon, so the padlock can be brought onto the same system as your door locks. The MK suffix on the A3562WOMK means the locks are keyed different under a master key, so each padlock has its own change key while one master opens the group.
3) Will a 5/16 inch shackle fit through my hasp, and how much clearance do I get?
The shackle is 5/16 inch (8mm) in diameter with a 3/4 inch clearance between the legs and a 3 inch overall shackle length, on a body 1-3/4 inch wide. Measure the hole in your hasp or chain link first - anything under 5/16 inch will not take it. The 3/4 inch inside width is what decides whether it will span the staple on a standard commercial hasp.
4) Is the American Lock A3562WOMK the right padlock for lockout/tagout?
No. The A3562WOMK is a commercial solid brass padlock keyed as keyed different under a master key, which is the opposite of what lockout/tagout needs. For LOTO use a dedicated safety padlock such as the ABUS 72/30 anodized aluminum safety padlock with a 1-1/4 inch body and 3/16 inch shackle diameter, the ABUS 74/40 insulated safety padlock with a 6-pin cylinder, 1-1/2 inch body and 1/4 inch shackle diameter, or the ABUS 76/40 plastic-covered aluminum core padlock with a 1/4 inch shackle. Those are lighter bodies and smaller shackles than the 1-3/4 inch brass body and 5/16 inch shackle on the A3562WOMK.
5) What is the closest interchangeable core padlock to the American Lock A3562WOMK if I need one already fitted with a cylinder?
The A3562WOMK ships without a cylinder, so the core is sourced separately to match your existing keyway. If you want a removable core padlock supplied as a complete assembly instead, the Sargent 60-858-2 is a removable core padlock with a 2 inch stainless steel shackle, and the Medeco 54515G XT is an indoor/outdoor padlock supplied with cylinder and a 5/16 inch shackle diameter - the same shackle diameter the A3562WOMK uses. The tradeoff is keyway freedom: the A3562WOMK accepts small format interchangeable cores in Best, Arrow and Falcon and other keyways so it can be keyed into a door hardware system you already own.
6) I need a brass body padlock but do not run small format interchangeable cores - what should I use instead of the A3562WOMK?
The A3562WOMK has a solid brass body 1-3/4 inch wide and is built around a small format interchangeable core, so it is only worth specifying if you key to SFIC. If you are not on SFIC, brass-body alternatives include the Sargent 758, a key retaining standard padlock in US4 satin brass, the Sargent 858 non-key retaining version with a stainless steel shackle, the Schlage KS23D/KS23F brass padlock with a 5/16 inch shackle diameter, and the Medeco 5260 brass body padlock with a 7/16 inch shackle diameter and M3 key technology in satin chrome.
7) Why choose a brass padlock body instead of steel for dock, marine, or coastal work?
Corrosion. The A3562 uses a solid brass body, which holds up in salty, caustic and wet environments where a plated steel body will bloom rust and seize. The shackle is still hardened boron alloy steel for cut resistance, so you get the corrosion behavior of brass without giving up shackle strength. Marine and offshore security, utility work and outdoor tool cribs are the typical uses.
8) What is the difference between the A3562WOMK and the A3562WOKAMK or A3562WOUN?
All three are the same 1-3/4 inch brass SFIC padlock body; the suffix is the keying instruction. WOMK is keyed different under a master key - every lock has its own change key. WOKAMK is keyed alike under a master, so one change key opens the whole group. WOUN is uncombinated, shipped with no keying at all for a shop that will pin its own cores. Pick the suffix by how you want the group to open, not by the hardware.
9) Can I order these padlocks with a chain so they stay attached to the gate or valve?
Yes. A #40 sash chain, 9 inches (229mm) long and zinc plated, is an option on the A3562 brass SFIC padlock, or you can take it with no chain. The chain keeps the lock tethered to the hasp or valve handle so it does not walk off or drop in the mud when the gate is open. Utility and municipal crews usually spec it.
10) How many keys come with each American Lock A3562WOMK padlock?
Key count is a choice, not a fixed number. Standard is 2 keys per lock, and you can also specify 1, 3, or 4 keys per lock, or 0 keys if your locksmith is cutting and stamping keys off your own system. On a master keyed order the change keys are what you are counting here.
11) What else could I use if I do not run a small format interchangeable core system?
The A3562 only makes sense if you are feeding it SFIC cores. If you are not on an SFIC system, look at a conventional-cylinder brass padlock instead: the Schlage KS23D/KS23F brass padlock uses the same 5/16 inch shackle diameter, and the Sargent 758 is a key retaining brass-finish padlock in the 758 series. For a large-format removable core instead, the Sargent 60-858-2 is a removable core padlock with a 2 inch stainless shackle.
12) For a coastal or marine application, how does the A3562WOMK compare with stainless or sleeved padlocks?
The A3562WOMK uses a solid brass body specifically for corrosion resistance in caustic, corrosive and salty environments, and American Lock lists marine and offshore security among its applications. Two other directions for salt exposure: the Medeco 521 G8R is a weather-tight padlock with a solid stainless steel body supplied less pop-out cylinder, and the ABUS T84MB/30 Nautic uses a black sleeve over the body with a 13/64 inch shackle diameter and 1 17/64 inch body width. The Medeco 521 G8R is the closest in ordering pattern, since like the A3562WOMK it comes without the cylinder installed.
13) Which padlocks are comparable to the A3562WOMK if I need a non-key-retaining lock?
The Sargent 858 is a non-key retaining padlock with a stainless steel shackle in US4 satin brass, the Sargent 82-856 is a non-key retaining padlock with a 2 inch by 2 inch brass case and stainless steel shackle, and the Medeco 54515G XT is non-key retaining with a 5/16 inch shackle diameter. Key retention on the A3562WOMK depends on the small format interchangeable core you fit, since it is supplied without a cylinder - so if non-retaining behavior has to be guaranteed by the padlock body itself, one of those three is the cleaner specification.
14) I need a longer shackle than the Sargent removable core padlock offers - does the American Lock A3562WOMK give me more clearance?
Yes. The A3562WOMK carries a 3 inch shackle length with a 3/4 inch shackle width and 5/16 inch diameter, while the Sargent 60-858-2 removable core padlock is built with a 2 inch stainless steel shackle. If the hasp, chain link or gate collar needs the extra vertical clearance, the A3562WOMK is the one that clears it, and it still keys into a small format interchangeable core system.
15) Does the Medeco 5260 use the same shackle as the American Lock A3562WOMK?
No. The Medeco 5260 brass body padlock is listed with a 7/16 inch shackle diameter, while the A3562WOMK uses a 5/16 inch diameter shackle. That matters for hasp and chain sizing: a hasp slot drilled for the 5/16 inch shackle will not accept the thicker Medeco shackle. The Schlage KS23D/KS23F brass padlock and the Medeco 54515G both list 5/16 inch, so those match the A3562WOMK on shackle diameter.
16) How do these padlocks pack for a facility-wide rollout?
Shelf pack is 6 and the master carton is 24, so a standardization order across a building or a route runs cleanly in multiples of 6. Useful when you are issuing locks by crew or by building and want the cartons to break down without a count.
17) How does the American Lock brass SFIC padlock resist prying and pulling on an exposed gate?
The shackle is held by a dual stainless steel ball bearing locking mechanism, which is what resists a pull or pry attack on the shackle legs rather than a single pawl. Paired with the hardened boron alloy shackle at 5/16 inch diameter, the common failure point on cheap locks (the shackle being cut or levered out) is the part that is reinforced here.
18) I need a stainless or weather-sealed padlock rather than brass - what else is there?
If the exposure is worse than brass handles, or the spec calls for stainless, the Medeco 521 G8R is a weather-tight padlock with a solid stainless steel body supplied less pop-out cylinder, so like the A3562 it takes your cylinder separately. Sargent's 858 is a non-key retaining padlock with a stainless steel shackle. The Medeco 5260 brass body padlock runs a heavier 7/16 inch shackle with M3 key technology if you want a thicker shackle in brass.
19) We are moving to electronic access control on gates and cabinets - is there an alternative to the A3562WOMK that supports audit trail?
The A3562WOMK is a mechanical padlock that takes a small format interchangeable core, so access rights live in the key system, not the lock. If you need an electronic credential instead, the Medeco 54515G is an XT electronic indoor/outdoor padlock supplied with cylinder, using a 5/16 inch shackle diameter that matches the A3562WOMK, so hasp and chain sizing carries over if you convert selected openings.
