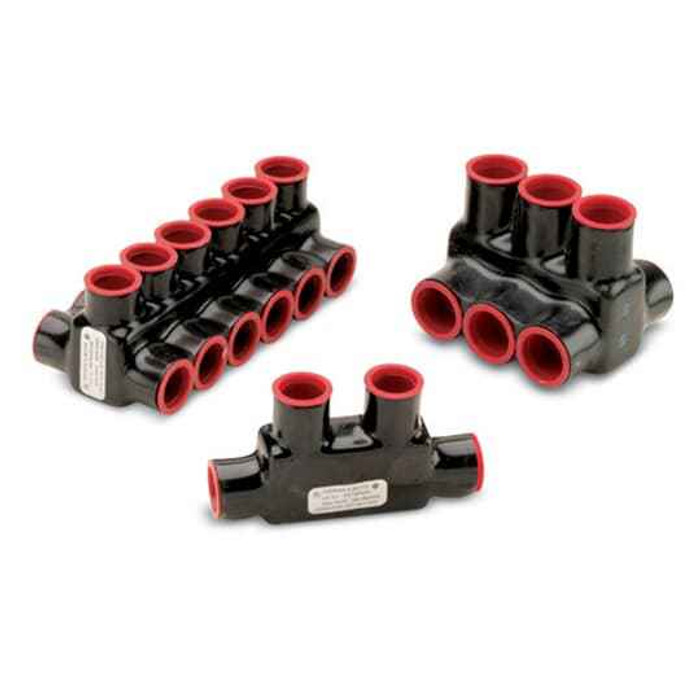

AMT 2 PORT 250-6 DOUBLE SIDED CONN.
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Product Group:
- Wire & Cable Management
- Product Type:
- AMT Connector
- Selling Unit Of Measure:
- each
- Standards:
- UL E9809
- Type2:
- Electrical taps
- Voltage Rating:
- 600 V
- Department:
- Electrical
- Product Subgroup:
- Connectors
- Product Color:
- Black
- Product Material:
- Aluminum
Blackburn AMTD25062 – Frequently Asked Questions
1) Is the Blackburn AMTD25062 rated for 600 volt service?
Yes, the AMTD25062 carries a 600 V rating, so it works on standard commercial and industrial branch and feeder circuits at or below 600 volts. It is also UL listed under file E9809.
2) What is the 250-6 in the Blackburn AMTD25062 part number?
It is the conductor range the ports accept, expressed the way Blackburn writes it: 250 kcmil down to 6 AWG. That covers most feeder taps on a 250 kcmil run plus smaller branch conductors landing in the same block.
3) What does double sided mean on the Blackburn AMT 2 port connector?
Double sided means the two ports enter from opposite faces of the body rather than the same side. On the AMTD25062 that lets you bring a conductor in from each direction and tap or splice them within one block, which is useful in tight gutters and pull boxes where you cannot loop both wires to one face.
4) Can I use the Blackburn AMTD25062 on aluminum conductors as well as copper?
The AMTD25062 body is aluminum, which is the standard construction for dual-rated AL9CU mechanical taps used on both aluminum and copper conductors. Confirm the AL9CU marking stamped on the block against the conductor material on your job before you terminate.
5) Is the Blackburn AMTD25062 a tap connector or a terminal lug?
It is a mechanical tap connector, not a lug. Both ports take conductors, so it joins or taps wire to wire inside an enclosure rather than terminating a conductor to a bus or pad.
6) Do I still need insulating cover or tape over the Blackburn AMTD25062?
Yes. The AMTD25062 is a bare aluminum mechanical connector with no integral insulation, finished in black, so the completed splice has to be insulated with a cover, tape, or heat shrink sized to the block and the 600 V rating of the circuit.
7) Does the Blackburn AMTD25062 come as a single piece or in a bag of multiples?
It is sold each, one connector per unit, under part number AMTD25062. Order the count you need per splice point; a two-conductor tap uses one block.
8) Is this Blackburn connector made in the USA, for a Buy American job?
Country of origin on the AMTD25062 is the United States. For a federally funded project that requires documented domestic content, pair that with the manufacturer's own compliance letter for the AMT line.
