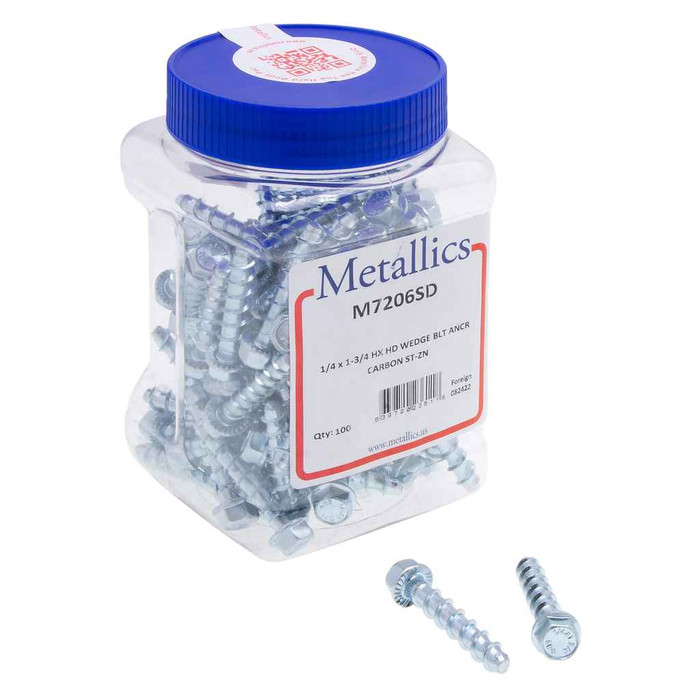

Anchors 1/4 X 1-3/4 Hx Hd Wedge Blt An Csz(Jar 100)
Manufacturer Resources
Product Specs
- Division:
- Electrical H1
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Sub Division:
- Electrical-E H2
- Department:
- Electrical
- Product Subgroup:
- Anchors
Metallics M7206SD – Frequently Asked Questions
1) Can I use a 1/4 inch wedge anchor to hang strut or conduit clamps off a concrete ceiling?
Yes, that's the normal use for this item. The M7206SD is an electrical-trade fastener for mounting strut, straps, clamps and box supports to poured concrete. The hex head lets you drive it with a socket, and a 1-3/4 inch anchor handles thin-flange fixtures like strut channel or a conduit strap.
2) Will a wedge anchor work in block or brick, or only solid concrete?
Wedge anchors are for solid, poured concrete. In hollow block, brick, or grout they can't develop the wedge expansion properly, and you should use a sleeve anchor, a screw anchor, or a toggle instead. Pick the wedge anchor when the substrate is structural concrete.
3) What drill bit do I need for a 1/4 inch wedge anchor?
Use a 1/4 inch carbide hammer-drill bit. Wedge anchors are drilled with a bit matching the anchor's nominal diameter, so the 1/4 inch M7206SD takes a 1/4 inch hole, drilled deeper than the embedment so cuttings can fall clear.
4) How many anchors come in a jar of the Metallics M7206SD?
100 pieces per jar. The anchors ship as a complete assembly, so each one includes the nut and washer needed to set it, which is what makes the jar count the usable count for a job.
5) What's the difference between a hex head wedge anchor and a drop-in anchor?
A hex head wedge anchor like the 1/4 x 1-3/4 M7206SD goes in through the fixture and is tightened with a nut, so the stud stays permanently proud of the slab. A drop-in anchor sets flush in the concrete and takes a threaded rod or machine bolt you can remove later. Use the wedge for a fixed, one-time attachment; use a drop-in where you need to unbolt and rebolt, or where nothing can protrude.
6) How do I order the Metallics wedge anchor by part number?
Order Metallics M7206SD. That part number covers the 1/4 x 1-3/4 hex head wedge anchor in the 100 piece jar, and it's the only configuration under that number, so there's no length or finish suffix to specify.
How fast can I get the Metallics M7206SD delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the
continental
U.S.
Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit,
reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Metallics M7206SD come with a warranty?
Absolutely. The Metallics M7206SD is backed by a manufacturer’s warranty.
For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Metallics M7206SD?
You can call, text, or email our expert support team for fast answers. We’re here to help with
product
selection,
installation tips, and troubleshooting. Contact Us
