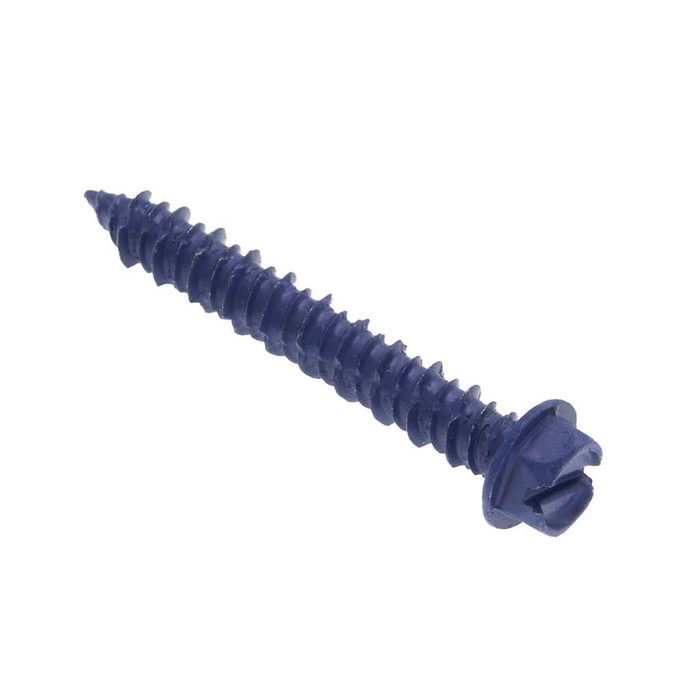

Anchors 1/4 x 2-1/4 CS Bl St-zn (Box1000)
Manufacturer Resources
Product Specs
- Division:
- Electrical H1
- Pack Type:
- Box
- Product Group:
- Fasteners
- Sub Division:
- Electrical-E H2
- Department:
- Electrical
- Product Subgroup:
- Anchors
Metallics CSH30FM – Frequently Asked Questions
1) Can I buy the Metallics CSH30FM 1/4 inch anchors in a smaller quantity than 1000?
No. The CSH30FM ships as a single boxed count of 1000 pieces, and that is the only configuration offered under this part number. If you only need a handful for a service call, you are still buying the full box, so it suits crews doing volume work (strut, conduit clamps, box mounting) rather than one-off repairs.
2) What drill bit size do I need for a 1/4 inch Metallics anchor?

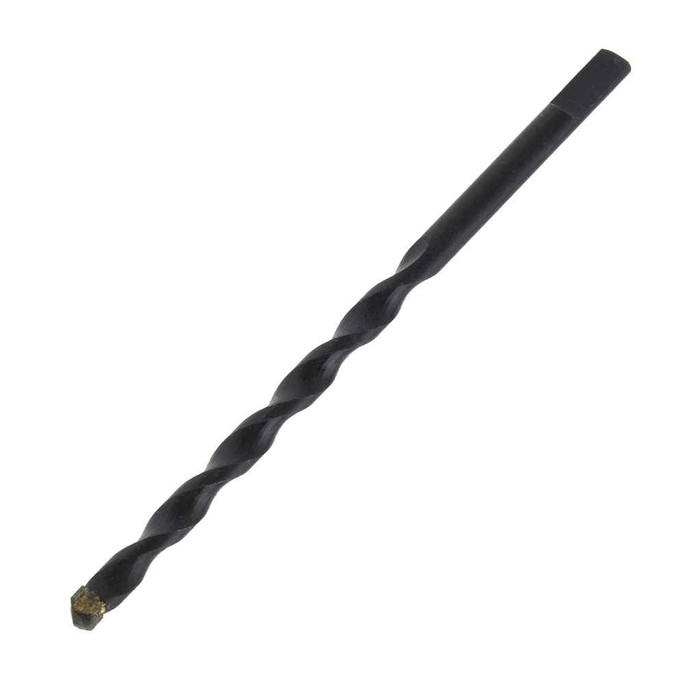

Match the bit to the anchor diameter: a 1/4 inch anchor is set with a 1/4 inch carbide masonry bit in a hammer drill, and the hole should be drilled deeper than the 2-1/4 inch anchor length so dust can settle below the anchor rather than bottoming it out. Blow or vacuum the hole before setting.
3) Is the zinc plating on these Metallics anchors suitable for outdoor or damp locations?
The CSH30FM is zinc plated steel, which is a mild corrosion coating intended for dry interior use, mechanical rooms, and similar protected locations. For exterior walls, wet locations, or coastal exposure, specify a stainless or hot dip galvanized anchor instead, because zinc plating will eventually rust in standing moisture.
4) How much of the 2-1/4 inch length is usable if I am fastening through strut or a clamp?
Subtract the thickness of whatever you are fastening through from the 2-1/4 inch overall length to get embedment in the concrete. Through a 1/4 inch strut foot you are left with about 2 inches in the base material. Keep embedment well clear of the back of a hollow block cell or thin topping slab, or step up to a longer anchor.
5) What are these 1/4 x 2-1/4 Metallics anchors typically used for on an electrical job?
They are an electrical trade fastener for anchoring into concrete and masonry: strut and channel, conduit straps and clamps, pull boxes, panel backing, and device box mounting on block or poured walls. The 2-1/4 inch length gives enough embedment for base material after the thickness of what you are fastening through.
