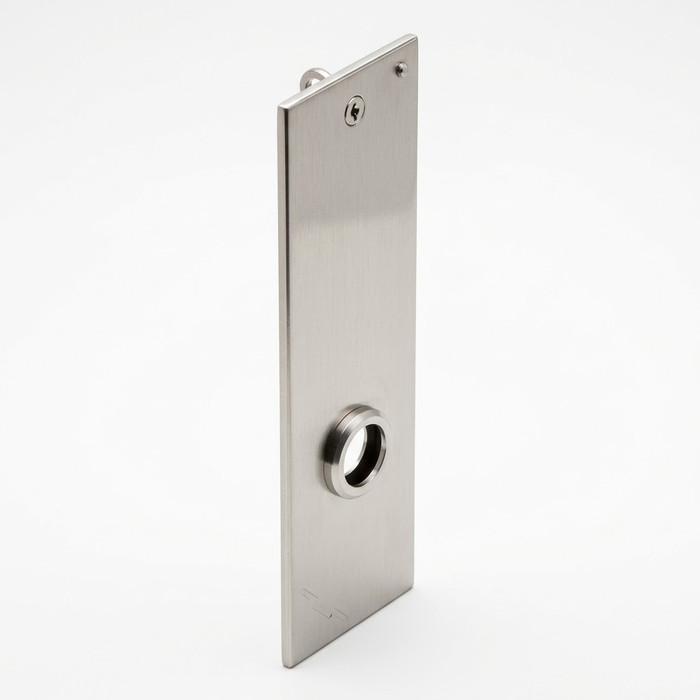

Arrow 17-86A-53 AM/BM Series H Escutcheon Outside Function Replacement Part

Arrow 17-86A-53 AM/BM Series H Escutcheon Outside Function Replacement Part

(No reviews yet) Write a Review

Model: 17-88A-53 26D

In Stock (leaves warehouse same day if ordered before 3pm ET)

$110.65
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Arrow 17-86A-53 AM/BM Series H Escutcheon Outside Function Replacement Part

The Arrow 17-86A-53 is a genuine replacement escutcheon designed for outside function use with Arrow's AM/BM Series H locksets. Purpose-built as a commercial-grade parts and accessories component, this escutcheon ensures proper form, fit, and function when restoring or maintaining compatible Arrow mechanical lock hardware. Sourced directly from Arrow, it delivers the precise tolerances required for seamless integration with AM/BM Series H door hardware.

Key Features

  • Series Compatibility: Designed specifically for Arrow AM/BM Series H locksets, ensuring accurate fit and reliable performance with compatible hardware.
  • Outside Function Designation: Configured for outside function use, providing the correct interface for exterior-facing escutcheon applications on AM/BM Series H doors.
  • Genuine Arrow Replacement Part: An authentic Arrow component, maintaining the original quality and specifications of the installed lockset.
  • Commercial-Grade Quality: Rated for commercial applications, delivering durability appropriate for demanding institutional and business environments.
  • Direct Replacement Design: Drop-in compatibility with existing AM/BM Series H hardware minimizes installation time and complexity during maintenance or repair.

Technical Specifications

  • Department: Door Hardware
  • Product Category: Mechanical Locks
  • Product Group: Parts and Accessories
  • Subcategory: Parts and Accessories
  • Product Subgroup: Parts and Accessories
  • Product Type: Escutcheons
  • Parts and Accessories Type: Replacement Parts
  • Commercial/Residential: Commercial
  • Product Model: 17-86A-53
  • Features: Arrow Parts

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Arrow 17-86A-53?

Arrow AM/BM Series parts and accessories are engineered to maintain the integrity of installed Arrow mechanical lock systems, providing commercial-grade quality and precise fitment for replacement and maintenance applications. When reliable performance and component authenticity matter, Arrow genuine replacement parts are the professional choice for facilities managers and door hardware specialists alike.

Manufacturer Resources

Arrow Express Catalog

Product Specs

Department:
Door Hardware
Product Category:
Mechanical Locks
Product Group:
Parts and Accessories
Subcategory:
Parts and Accessories
Product Subgroup:
Parts and Accessories
Product Type:
Escutcheon
Parts and Accessories Type:
Replacement Parts
Commercial/Residential:
Commercial
Product Model:
17-86A-53
Features:
Arrow Parts

Arrow 17-88A-53 26D – Frequently Asked Questions

1) What exactly is the Arrow 17-86A-53 part, the plate or the whole lock?
It's the escutcheon only, the outside plate for Arrow AM/BM Series H locksets. No lock body, no lever, no cylinder comes with it. Buy it when the existing AM/BM Series H lock still works mechanically but the outside plate is damaged, scratched, or the wrong finish.
2) Will the Arrow 17-86A-53 escutcheon fit any Arrow lockset?
No. It is built for the Arrow AM/BM Series H lockset and nothing else. Other Arrow series use different plate geometry and prep, so confirm the lock on the door is an AM or BM Series H before ordering this plate.
3) Which function do I order, 01/09 or 02, for an Arrow AM/BM Series H escutcheon?
The 17-86A-53 escutcheon comes in two function configurations: 01/09 and 02. Match it to the function of the lock already in the door, since the plate's interface differs by function. Arrow 01 is an entry/office type and 02 a privacy type in the AM/BM numbering, so identify the function stamped on the existing lock or its original order code rather than guessing from how the door behaves.
4) Can a Schlage CO Series exterior escutcheon be used to replace an Arrow 17-86A-53 escutcheon on an AM/BM Series H lockset?
No. The Arrow 17-86A-53 is a mechanical lock replacement escutcheon built for Arrow AM/BM Series H locksets, with fitment tied to that mechanical trim. The Schlage Electronics 47260707 CO Series exterior escutcheon is a keypad component for CO100 cylindrical and mortise electronic locks, so it carries a keypad interface rather than a plain mechanical outside trim and is prepped for the CO Series chassis. For an AM/BM Series H opening, stay with the Arrow 17-86A-53 in the function and finish that matches the installed lock.
5) What finishes does the Arrow 17-86A-53 escutcheon come in for matching the rest of my doors?
Eight finishes, all standard BHMA numbers so they cross-reference to whatever is on your other openings: 605 bright brass, 606 satin brass, 612 satin bronze, 613 satin bronze oil-rubbed, 625 bright chrome, 626 satin chrome, 629 bright stainless, and 630 satin stainless. Both the 01/09 and 02 function versions are offered in all eight, so a fleet standardized on 626 can be kept consistent regardless of which function is on a given door.
6) Do I need the inside plate too, or does this cover both sides of the door?
This covers the outside only. The 17-86A-53 is the outside function escutcheon, so if the inside plate is also damaged you need to source the matching inside-function part for the same AM/BM Series H lock and the same finish.
7) Can I use a Schlage CO Series escutcheon instead of the Arrow AM/BM plate?
No. The Schlage Electronics CO Series exterior escutcheons, such as the 47260707 for cylindrical and mortise locks or the 47260708 for exit trim, are keypad trims for Schlage's electronic CO-100 platform. They are not mechanical replacement plates and will not mount to an Arrow AM/BM Series H lock. For that lock, the plate has to be the Arrow part in the matching function.
8) Is the 17-86A-53 a drop-in replacement or does the door need re-prepping?
Drop-in. It is made to fit the existing AM/BM Series H prep, so no new boring or trim work is required when swapping a damaged plate, provided you order the function that matches the lock.
9) We are replacing escutcheons on exit device trim, not on an Arrow cylindrical lock. Is the 17-86A-53 the right part?
No. The Arrow 17-86A-53 outside escutcheon is configured for AM/BM Series H lockset trim. For exit device trim, the Schlage Electronics 47260708 is a CO Series exterior escutcheon made specifically for exit trim on CO-100 keypad locks and comes in an aged bronze finish. Choose by what the door already has: Arrow AM/BM Series H lockset gets the 17-86A-53, a CO-100 keypad exit trim opening gets the 47260708.
10) Will the MS Sedco ESC stainless escutcheon plate work as a substitute for the Arrow 17-86A-53?
No. The MS Sedco ESC is a decorative stainless escutcheon plate for R4 and R6 round switches, so it is a trim ring for a push switch rather than lock trim. The Arrow 17-86A-53 is a commercial mechanical lock escutcheon for Arrow AM/BM Series H locksets and is ordered by function, 01/09 or 02, and finish. The two mount to entirely different devices and are not interchangeable.
11) Is this escutcheon suitable for a school or hospital corridor, or is it light duty?
It is a commercial-grade component, and Arrow specifies it for office buildings, schools, healthcare, retail, industrial, multi-tenant residential, and government facilities. It is a genuine Arrow part, so it holds the original tolerances of the AM/BM Series H lock rather than an aftermarket approximation.
12) If our facility is standardizing on keypad access, do we still buy Arrow 17-86A-53 escutcheons for those doors?
Only for the openings that keep their Arrow AM/BM Series H mechanical locksets, where the 17-86A-53 outside escutcheon is the matching replacement trim and is available in finishes from 605 bright brass and 606 satin brass through 626 satin chrome and 630 satin stainless steel. Openings converted to Schlage CO100 keypad locks take the CO Series exterior escutcheon instead, such as the 47260707 for cylindrical and mortise locks, which ships with fasteners and an O-ring. Mixed buildings commonly carry both.
