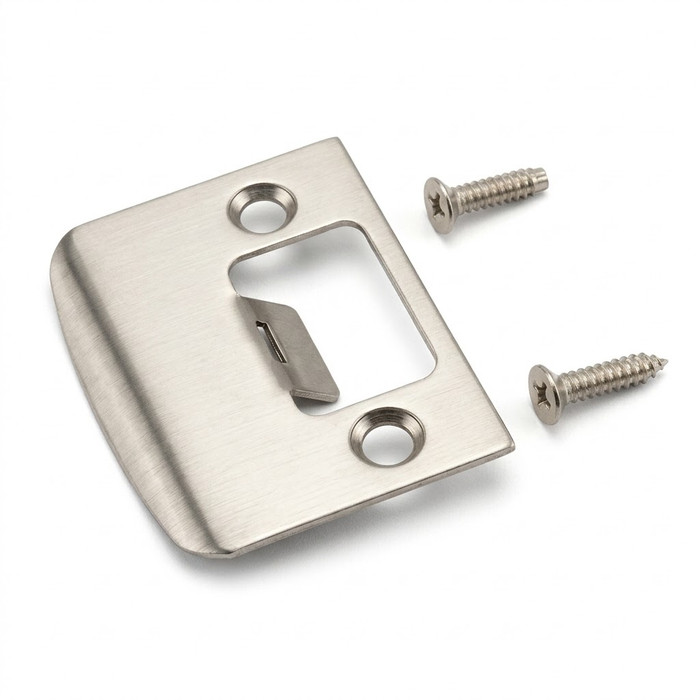

Arrow 302 Full Lip Strike Plate, 2-1/4" x 1-3/4", Square Corner, Commercial Replacement Part

(No reviews yet) Write a Review

Model: AR-302

In Stock (leaves warehouse same day if ordered before 3pm ET)

$11.69
$10.78
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Arrow 302 Full Lip Strike Plate, 2-1/4" x 1-3/4" Square Corner Replacement Strike

The Arrow 302 Full Lip Strike Plate is a commercial-grade replacement strike designed for use with compatible mechanical lock sets. Measuring 2-1/4" x 1-3/4", this full lip strike features a square corner configuration and a standard lip profile, making it a reliable replacement component for door hardware installations where a precise fit and dependable latch engagement are required.

Key Features

  • Full Lip Design: Full lip strike configuration provides complete latch bolt coverage and positive door alignment for secure closure.
  • Precise Dimensions: Measures 2-1/4" x 1-3/4" to ensure compatibility with standard door frame preparations and mortise cutouts.
  • Square Corner Profile: Square corner geometry delivers a clean, professional appearance and fits standard square-corner door frame mortises without additional modification.
  • Commercial-Grade Component: Rated for commercial applications, this strike plate is built to withstand the demands of high-use door hardware environments.
  • Genuine Arrow Replacement Part: Engineered as an Arrow-branded replacement part, ensuring proper fit and function with compatible Arrow lock sets and door hardware.
  • Versatile Compatibility: Suitable for use as a direct replacement strike in mechanical lock installations across a wide range of commercial door types.

Technical Specifications

  • Department: Door Hardware
  • Product Category: Mechanical Locks
  • Product Group: Parts and Accessories
  • Subcategory: Parts and Accessories
  • Product Subgroup: Parts and Accessories
  • Product Type: Strike Plates
  • Parts and Accessories Type: Replacement Parts
  • Commercial/Residential: Commercial
  • Product Model: 302
  • Features: Arrow Parts

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Multi-Tenant Residential Properties
  • Industrial and Warehouse Facilities
  • Government and Municipal Buildings

Why Arrow 302?

Arrow door hardware components are engineered to deliver consistent, professional-grade performance in commercial environments. The Arrow 302 Full Lip Strike Plate is manufactured to precise dimensional standards, 2-1/4" x 1-3/4" with a square corner profile, ensuring a proper fit and reliable latch engagement in demanding, high-traffic applications where dependable door function is essential.

Manufacturer Resources

Product Specs

Department:
Door Hardware
Product Category:
Mechanical Locks
Product Group:
Parts and Accessories
Subcategory:
Parts and Accessories
Product Subgroup:
Parts and Accessories
Product Type:
Strike Plates
Parts and Accessories Type:
Replacement Parts
Commercial/Residential:
Commercial
Product Model:
302
Features:
Arrow Parts

Arrow AR-302 – Frequently Asked Questions

1) What size is the Arrow 302 strike plate, and will it drop into an existing square-corner frame cutout?
The Arrow 302 strike face measures 2-1/4 by 1-3/4 inches with square corners, so it drops into a standard square-corner frame mortise of that size without filing or re-routing. If the frame you are working on has radius-corner cutouts, this one will leave gaps at the corners and you want a radius strike instead.
2) Which lip lengths does the Arrow 302 strike come in, and how do I pick the right one?
Two lip lengths are offered: 1-1/4 inch and 1-3/16 inch. Lip length is measured from the centerline of the screw holes to the end of the lip, and it has to carry the latch past the face of the frame trim or stop so the bolt rides up onto the lip instead of catching the frame edge. Measure your existing strike lip before ordering, since a lip that is too short lets the latch hang up and one that is too long sticks into the opening.
3) Can I use the Arrow 302 on doors other than Arrow locks?
It is an Arrow-branded replacement built to fit Arrow lock sets, and because it uses the common 2-1/4 by 1-3/4 inch square-corner face it will serve as a replacement strike in mechanical lock installations on standard commercial frames. What decides it is the frame prep, not the lock brand: if your existing strike cutout is 2-1/4 by 1-3/4 with square corners and the lip length matches, it goes in.
4) Is the Arrow 302 the same as an ASA strike?
No. An ASA strike, like the Codelocks ASA strike plate, uses the larger 4-7/8 inch tall T-shaped face used on hollow metal frames. The Arrow 302 is the smaller 2-1/4 by 1-3/4 inch square-corner face. They are not interchangeable in the same frame prep without patching or re-preparing the jamb.
5) I need a strike for a deadbolt, not a latch - is the Arrow 302 the right part?
The Arrow 302 is a full lip strike plate sized 2-1/4" x 1-3/4" with a square corner, made as a replacement strike for mechanical lock sets where the lip guides a latch bolt into the frame. For a deadbolt opening, the Deltana SP2753 is a deadbolt strike plate measuring 2-3/4" x 1-1/4" in steel, and the Emtek 83223 is a standard deadbolt strike plate with square corners. Both are cut for a deadbolt throw rather than a lipped latch strike.
6) My frame prep does not line up exactly - what strike can I use instead of the Arrow 302?
The Arrow 302 is a fixed-dimension strike at 2-1/4" x 1-3/4" with a square corner, so it relies on the existing frame mortise matching. Where the prep is off, the Kwikset 80318 is a full round adjustable strike and the Kwikset 81825 is a 6 way adjustable deadlatch, both of which allow the strike position to be tuned rather than fixed to one cutout.
7) What finishes is the Arrow 302 strike plate available in?
Six finish and lip combinations are built from five finishes: 605 bright brass, 612 satin bronze, 613 oil-rubbed satin bronze, 626 satin chrome and 630 satin stainless steel. If you are matching strikes across a building, 626 and 630 are the usual commercial choices and pair with most satin-finish levers already hung. Note the 1-3/16 inch lip is offered in 605 and 630; the 1-1/4 inch lip covers 605, 612, 613 and 626.
8) My door has sagged and the latch no longer lines up. Will a new Arrow 302 fix that?
No. The 302 is a fixed full lip strike with a set 2-1/4 by 1-3/4 face, so it lands in the same place the old one did and will not take up misalignment. For an out-of-line opening you want an adjustable strike such as the Kwikset 80318 full round adjustable strike or the Kwikset 81825 six-way adjustable deadlatch, or you re-shim the hinges.
9) Does ordering the Arrow 302 give me the box behind the strike as well?
The Arrow 302 is the face strike itself - a full lip plate at 2-1/4" x 1-3/4" in square corner form, sold as an Arrow replacement part. The mortise box behind it is a separate item: the Kwikset 81640 is a strike box and the Kwikset 81231-001 is a metal strike dust box. If the frame pocket needs lining, order one of those alongside the strike.
10) What is the difference between the Arrow 302 and a Codelocks ASA strike plate?
The Arrow 302 is a commercial square corner full lip strike, 2-1/4" x 1-3/4", offered in finishes including 626 satin chrome, 630 satin stainless steel, 605 bright brass, 612 satin bronze and 613 oil-rubbed bronze, with 1-1/4" and 1-3/16" lip lengths. The Codelocks ASA strike plate is an ASA series strike in stainless steel finish, cut to the ASA frame pattern rather than the Arrow dimension, so the two are not interchangeable in the same mortise.
11) Is the Arrow 302 strike heavy-duty enough for a high-traffic commercial door?
It is a commercial-grade component, catalogued for commercial rather than residential use, and the description calls out high-use door hardware environments such as offices, schools, healthcare, retail and municipal buildings. For a property manager standardizing corridor and tenant doors, one finish and lip length across the building keeps the reorder simple.
