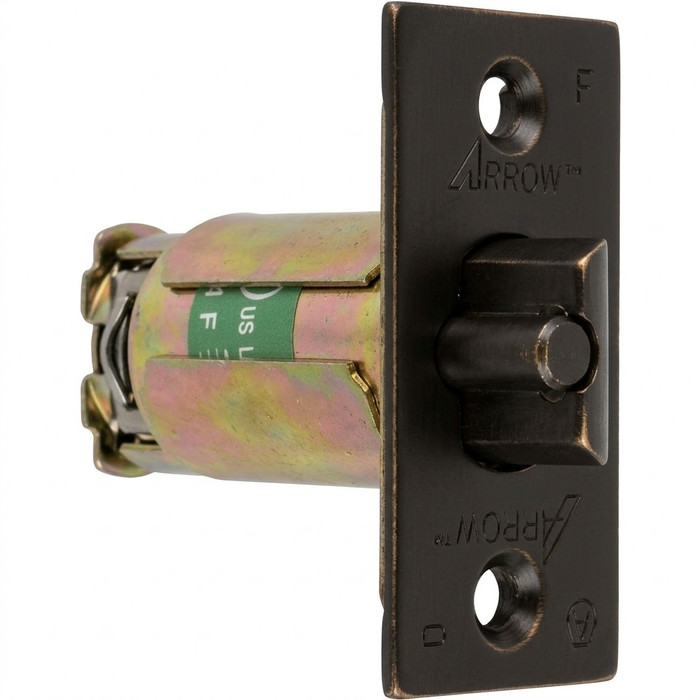

Arrow R22 Springlatch Replacement Part for MLX and RLX Series, 2-3/8 in. Backset, 2-1/4 in. x 1 in. Face, Oil Rubbed Bronze

(No reviews yet) Write a Review

Model: R22 613E

In Stock (leaves warehouse same day if ordered before 3pm ET)

$32.37
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Arrow R22 Springlatch Replacement Part for MLX and RLX Series, 2-3/8 in. Backset, Oil Rubbed Bronze

The Arrow R22 (613E) is a commercial-grade springlatch replacement part engineered specifically for use with Arrow MLX and RLX Series locksets. Featuring a 2-3/8" backset and a compact 2-1/4" x 1" face plate, this latch is precision-built to restore reliable latching function to compatible door hardware. Finished in Oil Rubbed Bronze (613E), it delivers a durable, attractive appearance well suited to commercial environments where both performance and aesthetics matter.

Key Features

  • Precise Backset Dimension: 2-3/8" backset ensures accurate, drop-in compatibility with properly prepared door bores on MLX and RLX Series installations.
  • Compact Face Plate: 2-1/4" x 1" face plate dimensions provide a clean, professional fit within standard door edge preparations for commercial applications.
  • Series Compatibility: Designed exclusively for Arrow MLX and RLX Series locksets, ensuring seamless integration as a verified replacement component.
  • Oil Rubbed Bronze Finish (613E): The 613E Oil Rubbed Bronze finish provides a rich, dark patina that coordinates with period-appropriate and transitional commercial hardware aesthetics.
  • Commercial-Grade Construction: Classified under commercial door hardware and mechanical locks, built to meet the demands of professional installation and extended service life.
  • Genuine Arrow Parts: Sourced as an authentic Arrow replacement part, ensuring quality control and fit consistency that aftermarket alternatives cannot guarantee.

Technical Specifications

  • Department: Door Hardware
  • Product Category: Mechanical Locks
  • Product Group: Parts and Accessories
  • Subcategory: Parts and Accessories
  • Product Subgroup: Parts and Accessories
  • Product Type: Latches
  • Parts and Accessories Type: Replacement Parts
  • Commercial/Residential: Commercial
  • Product Model: R22 613E
  • Features: Arrow Parts

Typical Applications

  • Commercial Office Buildings Requiring Lockset Maintenance or Restoration
  • Educational Facilities Servicing Existing Arrow MLX or RLX Series Hardware
  • Healthcare Institutions Maintaining Consistent Door Hardware Performance
  • Retail Establishments Replacing Worn or Damaged Latch Components
  • Multi-Tenant Residential Properties with Commercial-Grade Door Hardware
  • Property Management and Facility Maintenance Programs
  • Locksmith and Door Hardware Service Professionals

Why Arrow R22?

Arrow has long been a trusted name in commercial door hardware, and the R22 springlatch reflects that commitment to precision-fit replacement components. Engineered to exact dimensional specifications, 2-3/8" backset and a 2-1/4" x 1" face, this genuine Arrow part restores optimal latching function to MLX and RLX Series locksets without improvisation or modification. For facility managers and service professionals who depend on consistent, reliable hardware performance, the Arrow R22 delivers the confidence of an OEM-matched replacement.

Manufacturer Resources

Product Specs

Department:
Door Hardware
Product Category:
Mechanical Locks
Product Group:
Parts and Accessories
Subcategory:
Parts and Accessories
Product Subgroup:
Parts and Accessories
Product Type:
Latches
Parts and Accessories Type:
Replacement Parts
Commercial/Residential:
Commercial
Product Model:
R22 613E
Features:
Arrow Parts

Arrow R22 613E – Frequently Asked Questions

1) Will the Arrow R22 springlatch fit my Arrow MLX or RLX lockset?
That is exactly what the R22 is for. It is a genuine Arrow springlatch built for MLX and RLX Series locksets, with a 2-3/8 inch backset and a 2-1/4 x 1 inch face plate. If your door is bored at 2-3/8 inches and the existing latch face matches those dimensions, it drops in without modifying the door edge. It is not a universal latch, so it should not be used to service another manufacturer's lockset.
2) My door is bored for a 2-3/4 inch backset. Can I use the R22 latch?
No. The Arrow R22 is a fixed 2-3/8 inch backset latch, not an adjustable one, so it will not reach the spindle on a door prepped at 2-3/4 inches. 2-3/8 and 2-3/4 are the two standard backsets, so measure from the door edge to the center of the bore before ordering. If you need one part that covers both, an adjustable drive-in latch such as the Deltana DLP23875 is listed at 2-3/8 or 2-3/4 inch backset, though that is a drive-in passage/privacy latch rather than an Arrow MLX/RLX service part.
3) Can a Kwikset 84290 plainlatch be used in place of an Arrow R22 springlatch?
They are not interchangeable as service parts even though both are square-corner latches with a 2-3/8 in. backset. The Arrow R22 is a springlatch built specifically for Arrow MLX and RLX Series locksets, so its face and tailpiece engagement match those chassis. The Kwikset 84290 is a square corner plainlatch with a 2-3/8 in. backset intended for Kwikset residential-style locksets. If the door carries an Arrow MLX or RLX lockset, the R22 is the OEM-matched latch; the 84290 belongs on Kwikset hardware.
4) I need a latch for a fire-rated opening - is the Arrow R22 the right choice or should I look at a UL-rated latch?
The Arrow R22 is a commercial springlatch replacement for Arrow MLX and RLX Series locksets. Where the job calls specifically for a UL-listed latch on a Kwikset lockset, the Kwikset 83521 RCAL plain latch and the Kwikset 83518 RCAL adjustable square drive latch are both listed as UL 3 hour, and the 83521 is called out for BBL, KNL, CNL and PLL locksets. Match the latch to the lockset family already in the door and to the rating on the door label.
5) What finish does the Arrow R22 latch come in, and will it match my existing trim?
One finish only: 613E Oil Rubbed Bronze, listed as 613 Satin Bronze Oil-Rubbed. That is the dark bronze patina used on transitional and period-style commercial hardware. On most openings the latch face is the only visible piece besides the strike, so if your MLX or RLX lockset is already 613, this matches it. If your building standard is satin chrome or brushed nickel, the exposed face plate will read darker than the rest of the trim.
6) Is this a spring latch or a deadlocking latch with a deadbolt?
The R22 is a springlatch, the beveled latchbolt that retracts when the lever is turned and springs back to keep the door closed. It is not a deadbolt and provides no separate deadlocking throw. If you are after a motorized deadbolt latch instead, the Emtek LC9-DBLTCH EMPowered is a deadbolt latch, though it is a different product family, not an Arrow service part.
7) I manage a building with worn Arrow locksets. Can I just replace the latch instead of the whole lockset?
Yes, and that is the point of the R22. On MLX and RLX Series locksets the springlatch is the wearing part; when it stops retracting cleanly or stops catching the strike, swapping the latch restores function without pulling the chassis, re-keying, or re-boring. Stock the 613E if your standard finish is oil rubbed bronze so maintenance can turn a door around in one visit.
8) Does the Arrow R22 work on a pocket door privacy latch or a deadbolt?
No. The Arrow R22 is a springlatch for Arrow MLX and RLX Series cylindrical locksets. For a tubular pocket door privacy latch, the Emtek 83228 is a faceplate and screw set with square corners in a privacy/bed/bath function. For a motorized deadbolt application, the Emtek LC9-DBLTCH EMPowered deadbolt latch is the deadbolt-latch part. Those three parts address different hardware types and none substitutes for another.
9) My latch is fine but the faceplate is damaged - do I need the whole Arrow R22?
The Arrow R22 is supplied as a complete springlatch assembly with a 2-1/4 in. x 1 in. face for Arrow MLX and RLX Series locksets, so it replaces latch and face together. A faceplate-only part exists in other lines - the Emtek 83228 is a faceplate and screws set with square corners for a tubular pocket door privacy latch - but that is an Emtek pocket door part and will not fit an Arrow MLX or RLX latch. For Arrow hardware, replace the latch as the R22 assembly.
10) Is the R22 a square corner face plate or a radius corner?
The R22 face measures 2-1/4 by 1 inch. Corner style is what decides whether it sits flush in your existing mortise, so pull the old latch and compare the face before installing. Kwikset's 84290 plainlatch is a square corner face at a 2-3/8 inch backset if your door edge is prepped square and you are not servicing Arrow hardware.
11) Can I use the Arrow R22 latch on residential doors, or is it commercial only?
It is catalogued and built as commercial hardware, which is where MLX and RLX locksets live: offices, schools, healthcare, retail, and multi-tenant residential buildings running commercial-grade trim. Nothing stops it working on a residential door bored at 2-3/8 inches, but it is only worth buying if the lockset it serves is an Arrow MLX or RLX.
