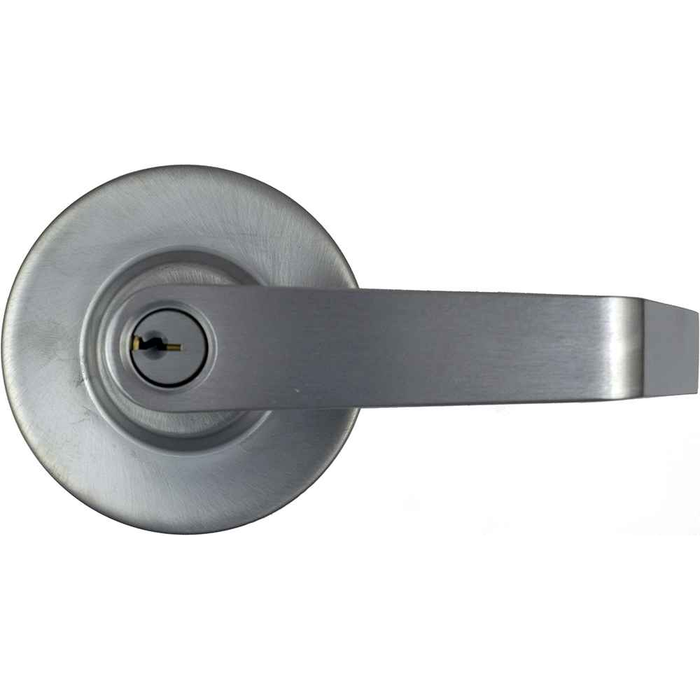

Arrow SRX82 Lever Exit Trim Storeroom Function, Schlage C Keyway

The SRX82 is exit trim, not a standalone lockset. It is the lever and cylinder assembly that mounts on the outside of a door with an exit device (or matching cylindrical lock, mortise lock, or alarm) already on it. Arrow offers the same storeroom function in ball knob (BD12), Tudor knob (TA12), and pull plate (SF12) trim, so if you want a knob instead of a lever on the same opening, order one of those instead.

The outside lever stays locked at all times. A key retracts the latchbolt to let someone in, and the key only comes out when the trim is locked again, so nobody can accidentally leave the room open. Inside egress is always free. That is the standard setup for storage rooms, mechanical rooms, and IT closets where the door has to self-secure every time it shuts. If you need the outside lever to be left unlocked for stretches of the day, the classroom version (SRX87) lets a key lock and unlock the lever; the passage version (SRX01) is always operative.

No. The SRX82 is built for 1-3/4 inch to 2 inch doors, which covers standard commercial hollow metal and solid core openings plus thicker leaves. On a 1-3/8 inch door, common on older interior openings, you need a different trim or lock rated down to that thickness. Among storeroom-function levers, the Cal-Royal AG05 covers 1-3/8 inch to 1-3/4 inch and the Hager 2580 Withnell covers 1-3/8 inch to 2 inch.

It comes in the Schlage C keyway with a single cylinder, so it drops into an existing C keyway system without an adapter cylinder. It is keyed on the outside only, which is what the storeroom function calls for. Keying it into your building master is a matter of pinning the cylinder to your system.

The Arrow SRX82 is a storeroom-function cylindrical lever where the key retracts the latchbolt and the outside lever stays locked. For a storeroom lever from another maker, the Cal-Royal AG05 is a Grade 2 storeroom lever lockset with a deadlocking latchbolt, and the Hager 2580 with Withnell lever is a Grade 2 storeroom cylindrical lock. Both hold the same storeroom function, so a stockroom, electrical closet, or mechanical room keeps the same behavior at the door: always locked outside, key entry only, free egress.

The SRX82 is keyed, single-cylinder, and always locked on the outside, so it is the wrong choice for a corridor or closet door that should never lock. For an always-operative opening, the Falcon K101 is a Grade 1 heavy duty passage cylindrical lock with non-handed levers, the Corbin Russwin CL3110 is a Grade 1 vandal resistant passage/closet lever, and the Design Hardware X75 is a Grade 1 passage lever lockset for 1-3/4 inch doors. None of these take a key.

The Arrow SRX82 is built for doors 1-3/4 inch to 2 inch. For a thinner door, the Cal-Royal AG05 Grade 2 storeroom lever covers 1-3/8 inch to 1-3/4 inch, the Hager 2580 storeroom lever covers 1-3/8 inch to 2 inch, and the Falcon K101 Grade 1 passage lock covers 1-3/8 inch to 2-1/4 inch. On a 1-3/8 inch door the Cal-Royal or Hager keeps the storeroom function.

The Arrow SRX82 is furnished for the Schlage C keyway, which lets it drop into a facility already keyed to Schlage C. The Cal-Royal AG00 entrance lever is a Grade 2 lever with a 6-pin Schlage C keyway keyed different on a 2-3/8 inch backset, and the Cal-Royal AG03 classroom lever is a 6-pin Schlage C keyway on a 2-3/4 inch backset. The Accentra 107S is a Schlage cylinder adapter kit for Yale hardware, which is how a Yale lock is brought onto the same keyway.

The Arrow SRX82 is a mechanical storeroom lever operated by key. For a door tied into access control or an alarm signal, the Corbin Russwin CL33903 is a Grade 1 fail safe electrified cylindrical lever lock at 12VAC/DC with the NZ lever and D rose, for doors 1-3/4 inch to 2 inch - the same door thickness range the Arrow SRX82 covers. Fail safe means the lever unlocks when power drops, which is what a fire alarm release requires.

No handing to specify. The SRX82 is non-handed, so one part number covers left and right hand openings. For a property manager buying spares across a building, that means a single item on the shelf works on any door in the group.

F84 is the ANSI/BHMA function designation for the SRX82. If your door schedule or hardware spec calls out an F84 storeroom trim, this matches it directly. Institutional specs and architect drawings usually cite the function number rather than a brand model, so that is the line to check against.

The SRX82 only makes sense if the door already has an exit device or matching Arrow lock body to attach to. For a self-contained keyed storeroom lever on an ordinary commercial door, the Cal-Royal AG05 is a Grade 2 storeroom lockset with a deadlocking latchbolt, and the Hager 2580 with the Withnell lever is a Grade 2 storeroom cylindrical lock. Both are complete locksets rather than trim.

The Arrow SRX82 is storeroom: the outside lever is locked at all times and the key is the only way in. Entrance and office function lets an occupant leave the outside lever unlocked from inside. The Hager 2525 is a Grade 2 commercial cylindrical entry lock with lever handle, the Falcon B511CP6D is a Grade 2 entry/office cylindrical lever, and the Dexter C1000 entry/office is a Grade 1 clutching keyed lever. Choose entrance for an office someone opens for the day, storeroom for a room that should never be left open.

No. Dummy trim has no latch and no cylinder - it is a pull only. The BEST 9K Series 1DT is a Grade 1 non-keyed single dummy trim, the Accentra 455LN Augusta is a Grade 1 single dummy cylindrical lever, and the BEST 7KC Series 1DT is a Grade 2 non-keyed single dummy. The Arrow SRX82 is a keyed storeroom lever that operates a G71 deadlatch on a 2-3/4 inch backset, so a dummy will not secure or latch the opening.

A keyless lever removes the key from the equation entirely. The Lockey 2835 is a mechanical pushbutton keyless lever lock with passage function and ADA compliance for doors 1 3/16 inch to 2 inch, the Lockey 1150 is a heavy duty mechanical keypad lever set with double combination and passage function for doors 1-1/8 inch to 2 inch, and the Delaney LP250 is a Grade 2 electronic keypad leverlock. These are passage-function code entry rather than the Arrow SRX82's keyed storeroom operation, so access is controlled by a code that can be changed instead of a Schlage C key that has to be cut and collected.

The Arrow SRX82 is a commercial cylindrical lever carrying the ANSI/BHMA F84 storeroom function designation. The Kwikset 200BRNL Breton passage lever is Grade 3 for 1-3/8 to 1-3/4 inch doors, the Master Lock BC Series RL01 is a Grade 3 keyed entry lever, and the Cal-Royal AUS00 is a Grade 3 entrance/office lever with a solid brass forged body. Grade 3 products are built to a lighter cycle and strength standard than Grade 1 and 2 commercial locks, so for a common-area storage or mechanical door in a multi-family building, a commercial storeroom lever such as the Cal-Royal AG05 Grade 2 storeroom keeps both the function and the commercial rating.

A storeroom lever is keyed from the outside and cannot be locked by an occupant, which is wrong for a restroom or bedroom. Privacy function is the substitute: the Hager 2540 is a Grade 2 privacy cylindrical lock with the Withnell lever for 1-3/8 to 2 inch doors, the Kwikset 300BRNL Breton is a Grade 3 privacy lever for 1-3/8 to 1-3/4 inch doors, and the Baldwin Estate 5103 privacy lever comes with the 5048 rose. Privacy locks push-button from inside rather than taking a key.

No. The Arrow SRX82 is non-handed, so one part covers a left or right hand opening and there is no handing to confirm before ordering. By contrast the Baldwin Estate 5103 half dummy is sold as a left hand version and a separate right hand version, each with the 5048 rose. Among the commercial passage levers the Falcon K101 and Falcon B101 are also non-handed designs.

The Arrow SRX82 is keyed from the outside only; the inside lever is always free. The Dexter C1000 asylum is a Grade 1 F87 asylum/institution/utility lever for doors 1-3/8 inch to 2 inch, which is keyed on both sides, and the Dexter C1000 classroom security is a Grade 1 clutching keyed classroom security lever that adds a second cylinder for locking the outside lever from the inside. For a detention, utility, or lockdown-capable classroom opening those are the functions to specify; for a plain locked storage room the storeroom function is the match.

Both wood and machine screws are included, so it mounts on a wood door or a hollow metal door without a separate fastener pack. Use the machine screws into metal, the wood screws into a solid core wood leaf.

They serve a different opening. The Emtek Classic Brass Cortina and the Emtek Arts and Crafts levers in the comparable range are dummy pairs with no latch or cylinder, and the Deltana 6201 Manchester, 6411 Morant, and 6431 Linstead are entry levers for doors 1-3/8 inch to 2 inch. The Arrow SRX82 is a commercial storeroom lever on a G71 deadlatch with a 2-3/4 inch backset and 306 ASA ANSI strike. On a back-of-house storage or mechanical door that needs to stay locked, the storeroom function and the ASA strike prep are what the frame is cut for.
