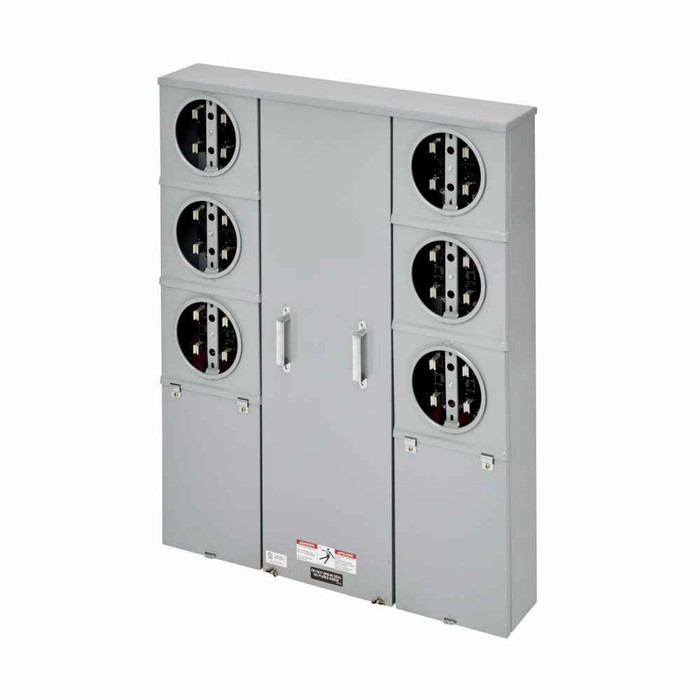

B-Line 2016 F Eaton series ver...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$17,423.41
B-Line 2016 F Eaton series vertical meter pack, 100 A, 400 A, None, Ring type, 3R, Overhead/underground, ANSI 61 gray paint, 010 kAIC, Galvanized steel, Flush mount, 4, 6, 3

B-Line 2016 F Eaton series vertical meter pack, 100 A, 400 A, None, Ring type, 3R, Overhead/underground, ANSI 61 gray paint, 010 kAIC, Galvanized steel, Flush mount, 4, 6, 3

(No reviews yet) Write a Review

Model: 2016 F
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$17,423.41
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series vertical meter pack, 100 A, 400 A, None, Ring type, 3R, Overhead/underground, ANSI 61 gray paint, 010 kAIC, Galvanized steel, Flush mount, 4, 6, 3

Manufacturer Resources

Product Specs

Amperage Rating:
100A
Certifications:
UL
Cover Door Type:
Ring
Degree Of Protection:
3R
Feed Type:
Overhead/underground
Interrupt Rating:
10 kAIC
Number Of Jaws:
4
Number Of Positions:
6
Number Of Wires:
3
Product Height:
39.5 in
Product Length Depth:
6 in
Product Weight:
121 lb
Product Width:
32 in
Department:
Electrical
Product Finish:
ANSI 61 gray paint
Product Material:
Galvanized steel
Product Length:
6 in

B-LINE 2016 F – Frequently Asked Questions

1) How many meter positions does the Eaton B-Line 2016 F meter pack have, and what is each socket rated?
The 2016 F vertical meter pack carries 6 meter positions, each socket rated 100 A. Sockets are 4-jaw, 3-wire, which is the standard arrangement for single-phase 120/240 V residential or light commercial tenant metering. For a six-unit building that means one enclosure covers every tenant meter.
2) What rough opening do I need to flush mount the B-Line 2016 F meter pack?
Size the wall opening around the enclosure dimensions: 39.5 in high, 32 in wide, 6 in deep. The 6 in depth is the governing number for a flush installation, so the stud cavity has to accept it. It is a heavy assembly at 121 lb, so plan blocking and two people to set it.
3) Can the 2016 F meter pack be installed outdoors?
Yes. The enclosure is Type 3R, which is rain and sleet rated for outdoor use, and it is galvanized steel finished in ANSI 61 gray paint. Note it is a flush mount unit, so outdoors it needs to be recessed into a wall rather than surface hung.
4) Is the short circuit rating on this meter pack high enough for my service?
The 2016 F is rated 10 kAIC. If your utility transformer and conductor run produce available fault current above 10,000 A at the meter location, this unit is not the right choice and you need a higher interrupting rated pack. Get the available fault current letter from the utility before you commit.
5) Does this Eaton B-Line meter pack have a meter bypass?
No bypass. The 2016 F is specified with bypass "None," so a meter cannot be pulled without interrupting that tenant's service. Some utilities require lever or horn bypass sockets on their approved list, so confirm the utility's meter socket requirement before ordering.
6) Is the 2016 F a ringless or ring type meter socket?
Ring type. The cover door type is Ring, meaning the meter is retained by a sealing ring rather than a ringless-style cover. Utilities typically specify one or the other, and they are not interchangeable in the field, so match the socket style your serving utility requires.
7) Does the B-Line 2016 F work with an underground service lateral or only overhead?
Either. Feed type is overhead/underground, so the same enclosure handles a service drop from above or a lateral coming up from below.
8) Is the B-Line 2016 F meter pack UL listed?
Yes, the 2016 F carries UL certification, which is what most inspectors and utilities look for on a multi-position metering enclosure.
9) What part number do I order for this six-position B-Line meter pack?
Order Eaton B-Line model 2016 F. That single catalog number covers the 6-position, 100 A per socket, 4-jaw 3-wire, ring type, 3R flush mount configuration in ANSI 61 gray.
