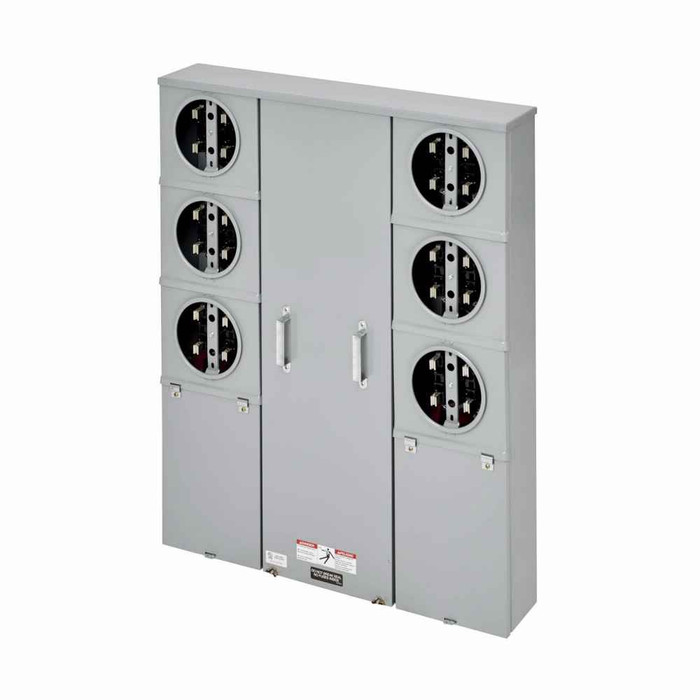

B-Line Eaton series vertical m...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$14,804.01
B-Line Eaton series vertical meter pack, 100 A, 400 A, None, Ring type, 3R, Overhead/underground, ANSI 61 gray paint, 010 kAIC, Galvanized steel, Flus

B-Line Eaton series vertical meter pack, 100 A, 400 A, None, Ring type, 3R, Overhead/underground, ANSI 61 gray paint, 010 kAIC, Galvanized steel, Flus

(No reviews yet) Write a Review

Model: 2015 F
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$14,804.01
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series vertical meter pack, 100 A, 400 A, None, Ring type, 3R, Overhead/underground, ANSI 61 gray paint, 010 kAIC, Galvanized steel, Flush mount, 4, 5, 3

Manufacturer Resources

Product Specs

Amperage Rating:
100A
Certifications:
UL
Cover Door Type:
Ring
Degree Of Protection:
3R
Feed Type:
Overhead/underground
Interrupt Rating:
10 kAIC
Number Of Jaws:
4
Number Of Positions:
5
Number Of Wires:
3
Product Height:
39.5 in
Product Length Depth:
6 in
Product Weight:
118 lb
Product Width:
32 in
Department:
Electrical
Product Finish:
ANSI 61 gray paint
Product Material:
Galvanized steel

B-LINE 2015 F – Frequently Asked Questions

1) How many meter positions does the Eaton B-Line 2015 F vertical meter pack have, and what amperage is each socket?
The 2015 F carries 5 meter positions, each socket rated 100 A. Sockets are 4-jaw, 3-wire, which is the single-phase 120/240 V configuration used on most apartment and small commercial tenant metering. If your tenants need 200 A sockets or a 3-phase 7-jaw arrangement, this is the wrong pack.
2) Can this B-Line meter pack be installed outdoors?
Yes. The enclosure is rated 3R, so it sheds rain, sleet and falling dirt and is suitable for exterior wall mounting. It is galvanized steel finished in ANSI 61 gray paint. It is not a washdown or dust-tight rating, so keep it off a direct hose-down location.
3) What wall opening and clearance do I need for the 2015 F meter pack?
Plan the opening around 32 in wide by 39.5 in high, with 6 in of depth. It is a flush mount unit, so the 6 in depth sits inside the wall cavity and you need framing that can take it. It weighs 118 lb, so it is a two-man set.
4) Is this a ringless or ring-type meter socket?
Ring type. The 2015 F uses a sealing ring at each socket rather than a ringless cover, and many utilities specify one or the other outright. Check the serving utility's meter requirements before ordering, because a ringless jurisdiction will reject a ring-type pack.
5) Does this meter pack work with an overhead service drop or an underground lateral?
Either one. The 2015 F is built for overhead/underground feed, so the same unit accepts a service drop from above or a lateral coming up from below. That saves you specifying a different pack when the utility changes the service route.
6) Does the 2015 F include a meter bypass?
No bypass is provided. Power has to be dropped to pull or change a meter, so if your utility or your maintenance plan requires hot meter changes, you need a pack ordered with lever or horn bypass instead.
7) What is the short circuit rating on this Eaton B-Line meter pack?
10 kAIC. That sets the ceiling on available fault current at the service point, and the 400 A main lug arrangement feeds the 5 tenant positions. If the utility transformer puts more than 10 kA at the pack, you need a higher interrupting assembly.
8) Is the B-Line 2015 F meter pack UL listed?
Yes, it carries UL certification, which is what most inspectors and utility authorities want to see on a multi-tenant metering assembly before they set meters.
9) I need to order this by part number for a five-unit building. What is the model?
The model is 2015 F from Eaton's B-Line series, a vertical 5-position, 100 A socket, 400 A pack in a 3R flush mount enclosure.
