B-Line Eaton auxiliary support...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$74.89
$33.13
B-Line Eaton auxiliary support bracket, Steel, Brackets and 1/2"-13 hardware, ATR Size: 1/2", Hole size: 9/16", Single bracket only, Yellow zinc, Ang

B-Line Eaton auxiliary support bracket, Steel, Brackets and 1/2"-13 hardware, ATR Size: 1/2", Hole size: 9/16", Single bracket only, Yellow zinc, Ang

(No reviews yet) Write a Review

Model: SB310AYZ
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$74.89
$33.13
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton auxiliary support bracket, Steel, (2) Brackets and 1/2"-13 hardware, ATR Size: 1/2", Hole size: 9/16", Single bracket only, Yellow zinc, Angled drop rod bracket

Manufacturer Resources

Product Specs

Certifications:
Not Applicable
Product Height:
2.5 in
Product Length Depth:
2.25 in
Product Weight:
.7 lb
Product Width:
2 in
Department:
Electrical
Product Model:
Angled drop rod bracket
Product Finish:
Yellow zinc chromate
Product Size:
ATR Size 1/2 in, hole size 9/16 in
Product Material:
Steel

B-LINE SB310AYZ – Frequently Asked Questions

1) What size threaded rod does the B-Line SB310AYZ auxiliary support bracket take?
The SB310AYZ angled drop rod bracket is built for 1/2 inch all-thread rod, with a 9/16 inch hole to pass the rod through. It ships with 1/2"-13 hardware to match that rod size, so the nuts thread onto standard 1/2 inch coarse ATR.
2) Is the B-Line SB310AYZ sold as a single bracket or a pair?
Single bracket only. If your detail calls for brackets on both sides of a drop rod, order two.
3) Will a yellow zinc B-Line drop rod bracket hold up outdoors?
The SB310AYZ carries a yellow zinc chromate finish over steel. That is a coating intended for dry indoor service, not weather exposure or corrosive environments. For exterior runs or wash-down areas, specify a hot-dip galvanized or stainless support instead.
4) How much room does the B-Line SB310AYZ bracket take up at the rod?
It is a compact fitting: 2.5 inches high, 2.25 inches in length/depth, and 2 inches wide, weighing .7 lb. Useful when you are checking clearance between a drop rod and adjacent conduit, duct, or a ceiling grid.
5) Do I need to buy nuts and washers separately for the SB310AYZ bracket?
No. The bracket comes with 1/2"-13 hardware. What is not included is the threaded rod itself or the structural anchor at the deck, so order those to your run length and substrate.

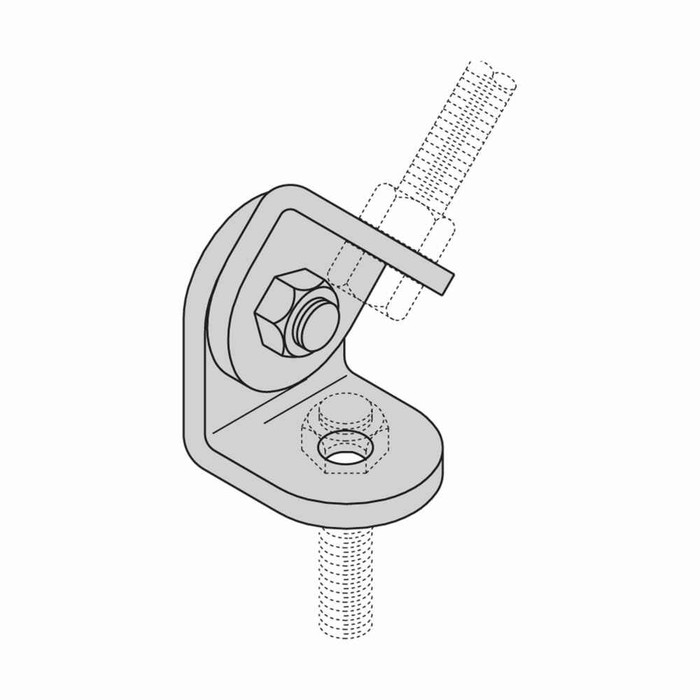

6) What is an angled drop rod bracket used for on an electrical job?
It is an auxiliary support that picks up a drop rod at an angle rather than straight down, so you can kick a hanger off to one side of the structural attachment point. Electricians use it where a trapeze or conduit run cannot hang plumb under the deck insert. This one works on 1/2 inch rod.
