B-Line Eaton auxiliary support...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$74.80
$43.26

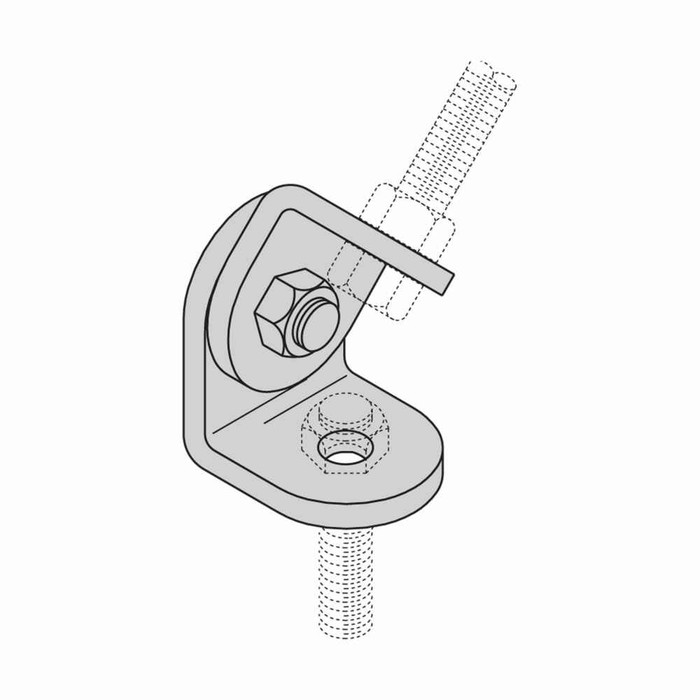

B-Line Eaton auxiliary support bracket, Steel, Brackets and 1/2"-13 hardware, ATR Size: 5/8", Hole size: 11/16", Single bracket only, Yellow zinc, An

B-Line Eaton auxiliary support bracket, Steel, Brackets and 1/2"-13 hardware, ATR Size: 5/8", Hole size: 11/16", Single bracket only, Yellow zinc, An

(No reviews yet) Write a Review

Model: SB310BYZ
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$74.80
$43.26
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton auxiliary support bracket, Steel, (2) Brackets and 1/2"-13 hardware, ATR Size: 5/8", Hole size: 11/16", Single bracket only, Yellow zinc, Angled drop rod bracket

Manufacturer Resources

Product Specs

Certifications:
Not Applicable
Product Height:
2.5 in
Product Length Depth:
2.25 in
Product Weight:
.7 lb
Product Width:
2 in
Department:
Electrical
Product Model:
Angled drop rod bracket
Product Finish:
Yellow zinc chromate
Product Size:
ATR Size 5/8 in, hole size 11/16 in
Product Material:
Steel
Product Length:
2.25 in

B-LINE SB310BYZ – Frequently Asked Questions

1) What hardware comes with the B-Line SB310BYZ drop rod bracket, and do I need to order anything else?
The SB310BYZ ships as a single bracket with 1/2 inch-13 hardware. The all-thread rod itself is not included, so you supply the 5/8 inch ATR, plus the nuts and washers at the rod, and whatever anchors the assembly to the structure above. Note the description references brackets in pairs but what you are buying here is the single bracket, so order two if the drop needs a pair.
2) Is the B-Line SB310BYZ bracket OK for a damp or unheated space, like a parking garage or mechanical room?
It is steel with a yellow zinc chromate finish. That is an indoor and sheltered-condition coating, fine for mechanical rooms, ceiling plenums, and covered garages, but it is not a hot-dip galvanized or stainless part. For direct weather exposure, wash-down areas, or corrosive process environments, specify a galvanized or stainless support instead.
3) What is an angled drop rod bracket used for in a strut or trapeze hanger run?
An angled drop rod bracket lets you land a threaded drop rod on structure at an angle rather than dead plumb, or transition a rod to a strut channel where the two are not square to each other. Contractors reach for it when the deck, bar joist, or beam above does not sit directly over the trapeze, so a straight vertical drop is not available. The SB310BYZ is the 5/8 inch ATR version of that part.
4) Does the B-Line SB310BYZ carry a UL listing or other certification?
The SB310BYZ is a plain steel support bracket and carries no certification of its own. If your submittal calls for a listed or labeled support assembly, that requirement lands on the overall hanger system and its anchors, not on this bracket.
