Spec Sheet
Product Specs
- Receptacle Left:
- Round receptacle opening
- Department:
- Electrical
- Product Group:
- Enclosures & Boxes
- Product Subgroup:
- Covers
- Product Type:
- Lower deadfront cover
- Product Length:
- 6.75 IN
- Product Details:
- Lower deadfront cover
- Product Height:
- .5 IN
- Product Weight:
- .976 LB
- Product Width:
- 8.75 IN
B-LINE CHLDFCVR10 – Frequently Asked Questions
1) What exactly is the B-Line CHLDFCVR10 and what part of the pedestal does it cover?

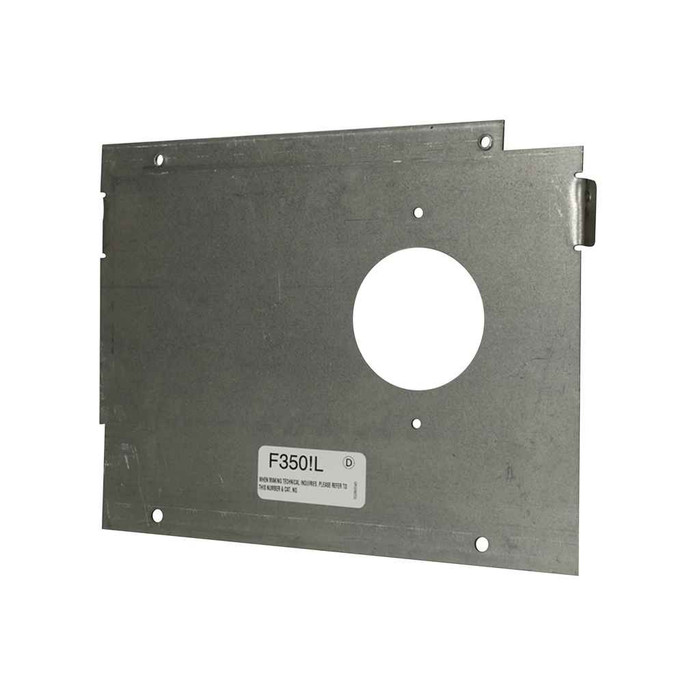

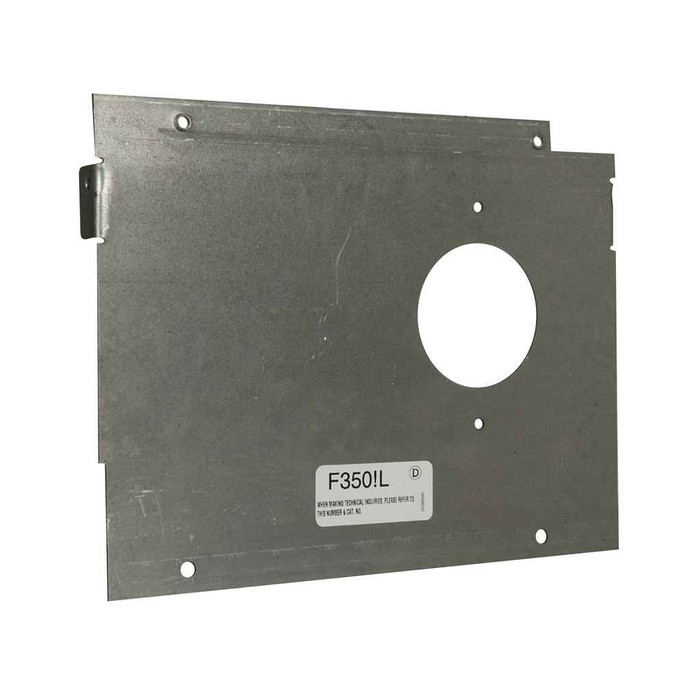

CHLDFCVR10 is the lower deadfront cover for an Eaton power pedestal. It is the interior barrier panel that sits over the lower receptacle section, keeping energized parts behind a shield while leaving the receptacle accessible. It is not the outer pedestal door or the pedestal enclosure itself, so order it when you are replacing a damaged or missing deadfront only.
2) Does the CHLDFCVR10 cover have a round or a rectangular receptacle cutout?
The left position is cut for a round receptacle opening. That matters if your pedestal is populated with a rectangular or GFCI-style duplex device on that side, because the cover will not close over a device whose faceplate does not match the round cutout. Confirm the device shape on the left position before you order.
3) What size is the CHLDFCVR10 deadfront cover panel?
The cover measures 8.75 x 6.75 x .5 inches (width, length, height as B-Line lists them) and weighs .976 lb. Measure the deadfront opening on your pedestal against those numbers before ordering, since a cover that is off by even a half inch will not seat against the mounting bosses.
4) I manage an RV park with Eaton power pedestals. Can I stock one deadfront cover for all of them?
Not reliably. Eaton pedestal deadfronts are cut to the receptacle configuration behind them, and CHLDFCVR10 is the lower cover with a round receptacle opening on the left. Pedestals built with different device layouts take different cover part numbers. If your fleet is a mix, identify the cover number stamped on the panel you are replacing rather than buying one part for every site.
5) Does the CHLDFCVR10 come with screws or mounting hardware?
What ships is the lower deadfront cover panel itself, a single .976 lb piece. Reuse the original deadfront screws from the pedestal, or have replacement fasteners on the truck, because no receptacles, devices, or breakers come with the cover.
6) Do I need the upper cover too, or is the lower deadfront enough?
CHLDFCVR10 covers the lower section only. If the upper deadfront on your pedestal is also cracked, faded, or missing, that is a separate part number and has to be ordered alongside this one. Replacing just the lower panel leaves the upper section of energized parts exposed.
7) Is the CHLDFCVR10 an Eaton part or a B-Line part?
Both names are correct. B-Line is the Eaton brand line the pedestal hardware is sold under, and the manufacturer part number to order by is CHLDFCVR10. Eaton publishes a spec sheet for the part under that same number.
