Spec Sheet
Product Specs
- Amperage Rating:
- 30A
- Certifications:
- UL Listed
- Circuit Breaker Type:
- QCF
- Connection:
- Cable-in/cable-out
- Interrupt Rating:
- 10 kAIC
- Number Of Poles:
- Two-pole
- Product Height:
- 5.2 IN
- Product Length Depth:
- 5.7 IN
- Product Weight:
- 2 LB
- Product Width:
- .5 IN
- Shunt Trip:
- 120-240V
- Terminals:
- Ring or spade lug terminals
- Trip Type:
- Thermal-magnetic
- Voltage Rating:
- 240V
- Wire Size:
- #14-4 AWG
- Department:
- Electrical
- Product Group:
- Electrical Components
- Product Subgroup:
- Circuit Breakers
- Product Type:
- Industrial miniature circuit breaker
- Product Details:
- Industrial miniature circuit breaker
- Option Details:
- Non-interchangeable
B-LINE QCF2030HTS – Frequently Asked Questions

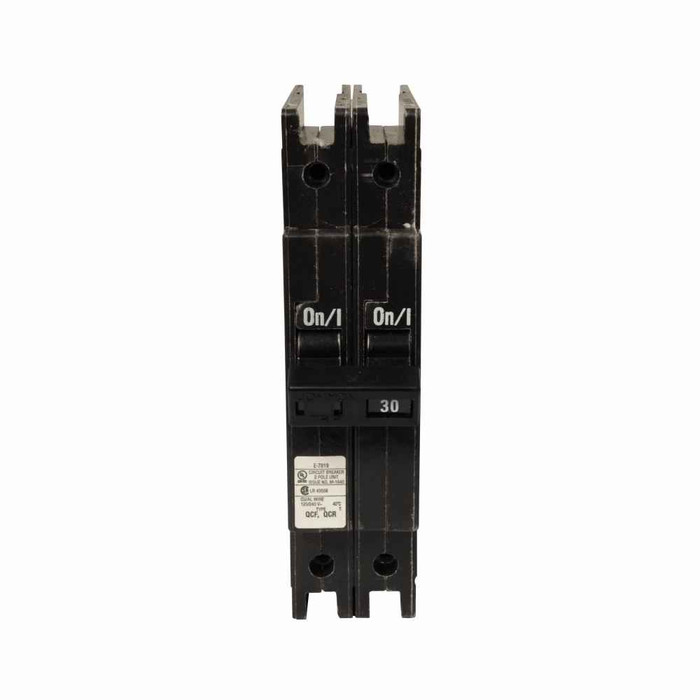

1) Will the Eaton QCF2030HTS breaker work on a 240V two-pole circuit at 30 amps?
That is exactly what the QCF2030HTS is built for: a two-pole, 30A device rated 240V, with a thermal-magnetic trip. Its interrupting rating is 10 kAIC, so the available fault current at your panel has to be at or below that figure.
2) What wire size can I land on the QCF2030HTS circuit breaker?
Conductors from #14 through #4 AWG land on it. Terminations are ring or spade lug type, cable-in and cable-out, so you are crimping lugs onto the conductors rather than pushing bare wire into a box lug. Order the lugs to match your conductor size before the crew is on site.
3) Can I swap a QCF2030HTS into a panel that takes a different brand of miniature breaker?
No. The QCF is a non-interchangeable industrial miniature breaker, so it goes into equipment built for the QCF type and nothing else. If your enclosure or panelboard is listed for another breaker family, this one is not a drop-in replacement for it.
4) Does this QCF breaker have a shunt trip, and what voltage does the trip coil take?
It does. The shunt trip on the QCF2030HTS operates on 120-240V, so you can drop the breaker remotely from a fire alarm relay, an E-stop, or a control circuit at either common control voltage. That is the feature that separates it from a plain QCF of the same amperage.
5) Is the Eaton QCF2030HTS UL Listed for institutional and inspected work?
The QCF2030HTS is UL Listed, which is what most AHJs and facility specs call for on a branch breaker. Pair that with the 10 kAIC interrupting rating when you check it against the fault current shown on your one-line.
6) Should I pick a thermal-magnetic breaker like the QCF or an electronic trip unit?
Thermal-magnetic, as on the QCF2030HTS, handles the two things a branch circuit needs: a bimetal element for slow overloads and a magnetic element for short circuits. It is the standard choice on feeders and branch circuits at this size. Electronic trip units earn their cost at larger frame sizes where you need adjustable pickup and delay for selective coordination, not on a 30A two-pole branch.
7) What exact part number do I order for the 30A two-pole QCF with shunt trip?
Order Eaton part number QCF2030HTS. That single MPN covers the 30A, two-pole, 240V configuration with the 120-240V shunt trip and lug terminations.
