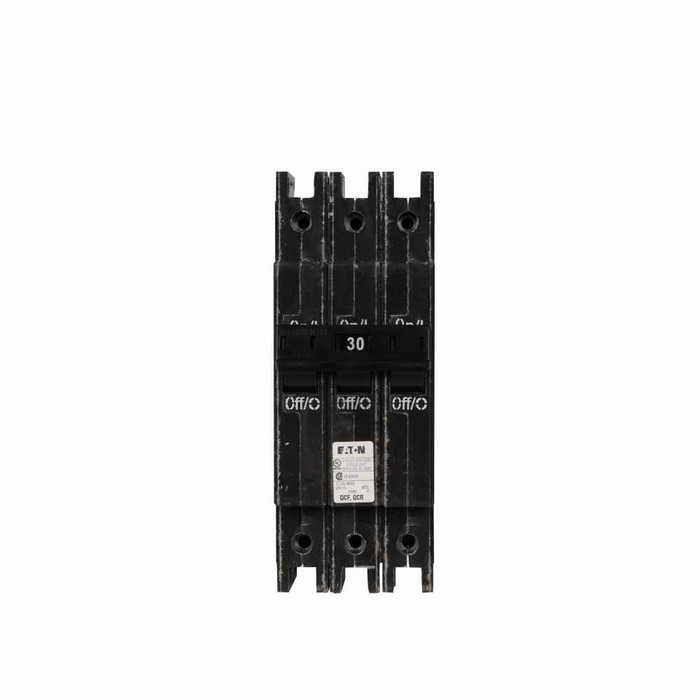

Eaton QCF thermal magnetic circuit breaker
Manufacturer Resources
Product Specs
- Amperage Rating:
- 20A
- Catalog Notes:
- Standard Breaker terminals are box type lugs. Suitable for line and load side ring terminal connection (#10-32 plus/minus terminal screw provided).
- Certifications:
- UL Listed
- Circuit Breaker Type:
- QCFH
- Connection:
- Cable-in/cable-out
- Interrupt Rating:
- 10 kAIC
- Number Of Poles:
- Two-pole
- Product Height:
- 1.2 IN
- Product Length Depth:
- 4.6 IN
- Product Weight:
- .53 LB
- Product Width:
- 3 IN
- Trip Type:
- Thermal-magnetic
- Voltage Rating:
- 120/240V
- Wire Size:
- #14-4 AWG
- Department:
- Electrical
- Product Group:
- Electrical Components
- Product Subgroup:
- Circuit Breakers
- Product Type:
- Industrial miniature circuit breaker
- Product Details:
- Industrial miniature circuit breaker
B-LINE QCFH2020T – Frequently Asked Questions
1) Is the QCFH2020T a two-pole 20 amp breaker, and what voltage is it rated for?
Yes. The QCFH2020T is a two-pole, 20 amp thermal-magnetic breaker rated 120/240 V, so it covers both a 240 V two-wire load and a 120/240 V multiwire branch circuit.
2) What wire size can I land on this Eaton QCF breaker?
The terminals take #14 through #4 AWG, cable-in/cable-out. Standard terminals are box type lugs, and they are also suitable for ring terminal connection on both line and load side, with a #10-32 terminal screw supplied.
3) Is this a plug-on panelboard breaker or does it wire in line and load?
It is a cable-in/cable-out device, meaning both the supply and the load conductors terminate on the breaker itself rather than the breaker plugging onto a panel bus. Plan the enclosure and conductor routing accordingly.
4) What are the dimensions of this QCF breaker for enclosure layout?
The breaker measures 4.6 in (length/depth), 3 in wide, 1.2 in high, and weighs .53 lb. Use those figures when checking gutter space and cover cutouts in a small enclosure.
5) Does a thermal-magnetic trip matter for motor or lighting loads?
Thermal-magnetic is the standard trip for general branch circuit protection: the thermal element handles sustained overloads while the magnetic element reacts to short circuits. It is not an electronic or adjustable trip unit, so the 20 amp rating is fixed.
