Product Specs
- Amperage Rating:
- 25A
- Certifications:
- UL Listed
- Circuit Breaker Type:
- QCF
- Connection:
- Cable-in/cable-out
- Interrupt Rating:
- 10 kAIC
- Number Of Poles:
- Two-pole
- Product Height:
- 5.2 IN
- Product Length Depth:
- 5.7 IN
- Product Weight:
- 2 LB
- Product Width:
- .5 IN
- Shunt Trip:
- 120-240V
- Terminals:
- Ring or spade lug terminals
- Trip Type:
- Thermal-magnetic
- Voltage Rating:
- 240V
- Wire Size:
- #14-4 AWG
- Department:
- Electrical
- Product Group:
- Electrical Components
- Product Subgroup:
- Circuit Breakers
- Product Type:
- Industrial miniature circuit breaker
- Product Details:
- Industrial miniature circuit breaker
- Option Details:
- Non-interchangeable
B-LINE QCF2025HTS – Frequently Asked Questions

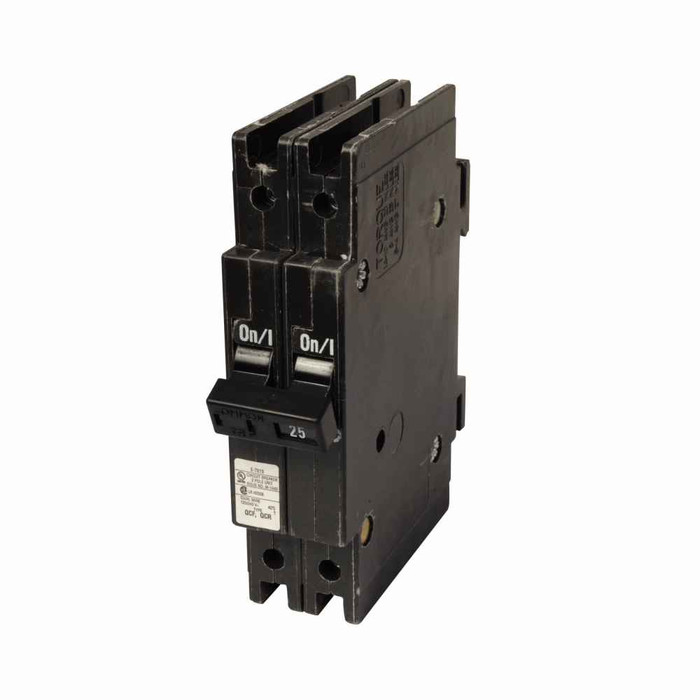

1) What amperage and voltage is the Eaton QCF2025HTS breaker rated for?
The QCF2025HTS is a two-pole, 25A breaker rated 240V, with a 10 kAIC interrupting rating. That 10 kAIC figure is the number to check against the available fault current at your panel location; if the calculated fault current exceeds 10 kA, you need a higher AIC device.
2) What wire size can I land on the QCF2025HTS circuit breaker?
Terminals accept #14 through #4 AWG, and they are ring or spade lug type rather than a plain box lug, so conductors have to be terminated with the matching lug before they go on. It's a cable-in/cable-out breaker, so both line and load conductors land directly on the device.
3) Does the QCF2025HTS include a shunt trip, and what control voltage does it use?
It carries a shunt trip rated 120-240V, so it can be tripped remotely from a control circuit in that range, which is how these get tied into fire alarm shutdown, EPO buttons, or elevator recall. A separate accessory is not needed to get remote trip on this one.
4) Will the QCF2025HTS work on a 480V system or a three-phase circuit?
No on both counts. It's rated 240V maximum and is a two-pole device, so it covers single-phase 240V or two legs of a 208V three-phase system, not a three-wire 480V feeder. For 480V or a three-pole load you need a different breaker family.
5) Can I swap the trip unit or change the amp rating on this QCF breaker later?
No. The QCF2025HTS is a non-interchangeable trip breaker, so the 25A rating is fixed. If the circuit load changes you replace the whole breaker with another QCF at the amperage you need rather than re-rating this one.
6) Is the QCF2025HTS thermal-magnetic or electronic trip?
Thermal-magnetic. The bimetal element handles sustained overloads and the magnetic element handles short circuits instantaneously. Trip points are fixed, so there are no adjustable pickup or delay settings to coordinate the way you would on an electronic trip unit.
7) Is this breaker UL Listed for an inspected commercial installation?
Yes, the QCF2025HTS is UL Listed. It is an industrial miniature circuit breaker of the Eaton QCF type, so it goes into QCF-style equipment rather than a residential load center.
