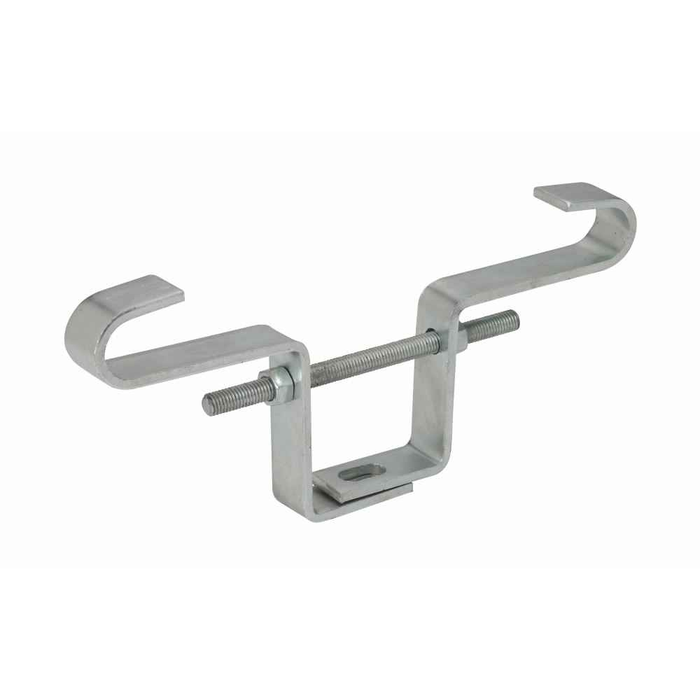

B-Line Eaton series beam clamps, Vertical adjustment provided in the clamp, Steel beam clamp, 1"-8 thread/rod size, Plain steel finish
Model: BLN-B3055-1X4PLN
Eaton B-Line series beam clamps, Vertical adjustment provided in the clamp, Steel beam clamp, 1"-8 thread/rod size, Plain steel finish
B-LINE
$1,714.93
B-Line Eaton series beam clamps, Vertical adjustment provided in the clamp, Steel, Steel beam clamp, 1"-8 thread/rod size, Plain finish
Model: BLN-B3055-1X10PLN
Eaton B-Line series beam clamps, Vertical adjustment provided in the clamp, Steel, Steel beam clamp, 1"-8 thread/rod size, Plain finish
B-LINE
$2,274.69
B-Line Eaton series beam clamps, Vertical adjustment provided in the clamp, 4300 load capacity Steel, Steel beam clamp, 1"-8 thread/rod size, Plain st
Model: BLN-B3055-1X5PLN
Eaton B-Line series beam clamps, Vertical adjustment provided in the clamp, 4300 load capacity Steel, Steel beam clamp, 1"-8 thread/rod size, Plain steel finish
B-LINE
$1,748.85

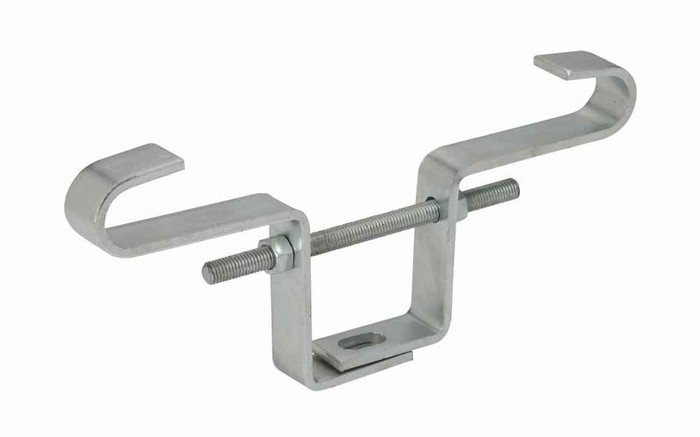

Eaton B-Line series beam clamps, Vertical adjustment provided in the clamp, Steel beam clamp, 1"-8 thread/rod size, Plain finish
Manufacturer Resources
Product Specs
- Application:
- Vertical adjustment provided in clamp
- Certifications:
- cULus Listed
- Load Capacity:
- 4300 lb
- Product Height:
- 5.5 in
- Product Length Depth:
- 5.5 in
- Product Weight:
- 11.2 lb
- Product Width:
- 12 in
- Thread Rod Size:
- 1"-8
- Department:
- Electrical
- Product Group:
- Conduit & Fittings
- Product Subgroup:
- Tees / Crosses
- Product Type:
- Steel beam clamp
- Product Details:
- Steel beam clamp
- Product Material:
- Steel
B-LINE B3055-1X12PLN – Frequently Asked Questions
1) How much load will this Eaton B-Line steel beam clamp hold?
Rated at 4,300 lb. That is a heavy structural hanging point, well beyond typical conduit or small pipe runs, so it suits large pipe, trapeze assemblies, and heavy equipment supports carried on 1 inch-8 rod.
2) Is this beam clamp UL listed for electrical support work?
The B3055 steel beam clamp is cULus Listed, which covers it for both US and Canadian installations. That matters on inspected commercial and institutional jobs where every support component in the hanger path has to be a listed part.
3) Can I adjust the hanger height after the clamp is on the beam?
Yes. Vertical adjustment is built into the clamp itself, so you can set the drop without cutting or re-threading rod. Useful when you are leveling a long run of trapeze hangers off beams that are not all at the same elevation.
4) Is the plain finish version okay for outdoor or damp locations?
The PLN suffix means plain steel with no protective coating. That is fine for dry, conditioned interiors. For exterior, parking structures, wash-down areas, or anywhere condensation is likely, specify a galvanized or coated version of the same clamp instead.
5) Does the B3055-1X12PLN come with the threaded rod or nuts?
No. What you order is the steel beam clamp itself, model B3055-1X12PLN. The 1 inch-8 threaded rod, nuts, washers, and whatever attaches at the bottom of the drop are all separate line items on your order.
6) What are the dimensions and weight of the B-Line B3055 beam clamp?
Listed at 12 in width, 5.5 in height and 5.5 in length/depth, weighing 11.2 lb. It is a substantial assembly, so plan on handling it accordingly overhead and confirm you have the clearance around the beam flange before you order in quantity.
