B-Line Eaton series cable supp...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1,148.38

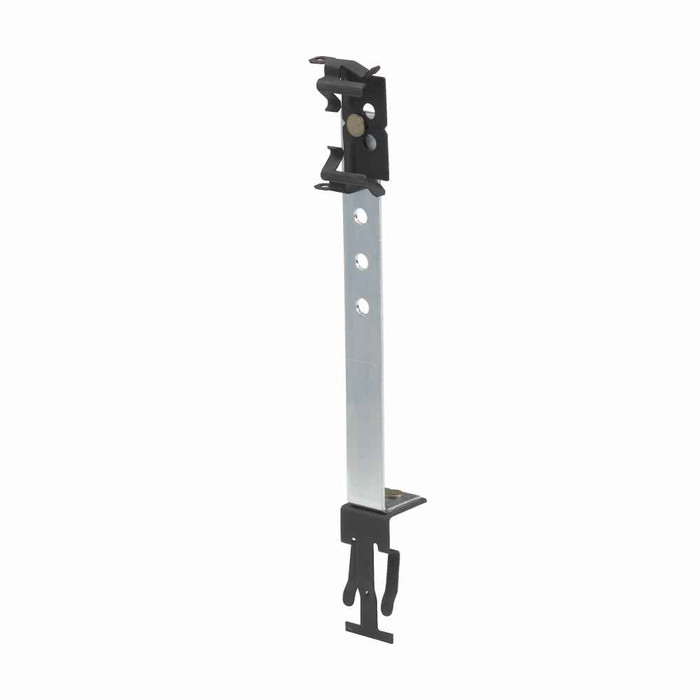

B-Line Eaton series cable support fasteners, Acoustical tee, 0.21lbs, Height adjusts from 4.25" to 7.25", Support fasteners, 2 Max runs, 0.5" Holes al

B-Line Eaton series cable support fasteners, Acoustical tee, 0.21lbs, Height adjusts from 4.25" to 7.25", Support fasteners, 2 Max runs, 0.5" Holes al

(No reviews yet) Write a Review

Model: BX4M-A28
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,148.38
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series cable support fasteners, Acoustical tee, 0.21lbs, Height adjusts from 4.25" to 7.25", Support fasteners, 2 Max runs, 0.5" Holes allow for adjustment between 4.25" and 7.25" at 0.75" increments

Manufacturer Resources

Product Specs

Application:
Supports conduit and electrical boxes above T-Bar
Certifications:
UL/CUL listed
Number Of Runs Max:
2
Product Category:
Acoustical tee
Product Height:
1 in
Product Length Depth:
1 in
Product Weight:
.21 lb
Product Width:
1 in
Special Features:
0.5" Holes allow for adjustment between 4.25" and 7.25" at 0.75" increments
Department:
Electrical
Product Group:
Clamps & Supports
Product Subgroup:
Supports
Product Type:
Support fasteners
Product Size:
Height adjusts from 4.25 inch to 7.25 inch
Product Details:
Support fasteners

B-LINE BX4M-A28 – Frequently Asked Questions

1) What is the Eaton B-Line BX4M-A28 acoustical tee support fastener actually used for?
The BX4M-A28 is a box hanger that supports conduit and electrical boxes above a T-bar suspended ceiling grid. It attaches to the acoustical tee and carries the box at an adjustable height above the grid, so the box sits where the tile line needs it rather than where the hanger happens to land.
2) How much height adjustment do I get with the B-Line BX4M-A28 box hanger above the ceiling grid?
Height adjusts from 4.25 inches to 7.25 inches. The 0.5 inch holes let you set it in 0.75 inch increments across that range, so you can pick up a fixture or box at a set depth below the deck without cutting or adding a piece.
3) How many conduit runs can one BX4M-A28 acoustical tee fastener carry?
Two runs maximum on a single fastener. If you are dropping more than two conduits at one location, plan on a second hanger rather than loading this one past its rated run count.
4) Will the BX4M-A28 work if my height needs to land between the adjustment holes?
No. The adjustment is stepped, not continuous, moving in 0.75 inch increments between 4.25 and 7.25 inches. If your box has to sit at a height that falls between those steps, or lower than 4.25 or higher than 7.25 inches above the tee, this hanger will not get you there and you need a different support.
5) Is the B-Line BX4M-A28 support fastener UL listed for inspection?
It is UL/CUL listed, which is what an inspector or a hospital, school, or government facility spec will be looking for on ceiling grid support hardware. The Canadian listing is included, so the same part covers work on both sides of the border.
6) Do I order the B-Line acoustical tee fastener by a size or is there just one part number?
There is a single model, BX4M-A28, in the Eaton B-Line series. Sizing is handled by the built-in adjustment rather than by ordering different lengths, so there is no size or finish choice to make on the order.
