B-Line Eaton series clevis han...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$493.79

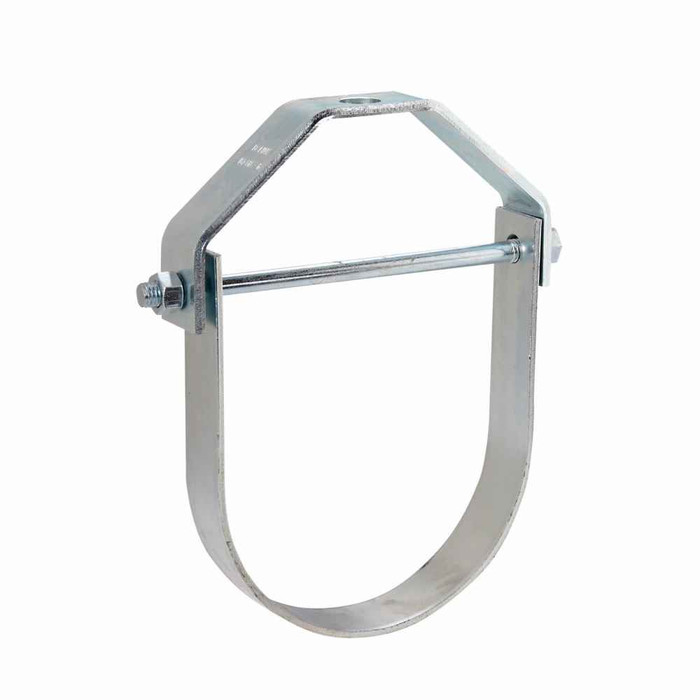

B-Line Eaton series clevis hanger, 2" height, 19.625" length, 18.625" width, Steel, Slide rite clevis hanger, Type 1, Zinc chromate, 14" pipe size, 1-

B-Line Eaton series clevis hanger, 2" height, 19.625" length, 18.625" width, Steel, Slide rite clevis hanger, Type 1, Zinc chromate, 14" pipe size, 1-

(No reviews yet) Write a Review

Model: B3100-14ZN
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$493.79
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series clevis hanger, 2" height, 19.625" length, 18.625" width, Steel, Slide rite clevis hanger, Type 1, Zinc chromate, 14" pipe size, 1-8" rod size

Manufacturer Resources

Product Specs

Application:
Design aligned bolt hole for overhead install
Certifications:
cUL Listed
Pipe Size Max:
14 in
Product Height:
2 in
Product Length Depth:
19.625 in
Product Weight:
14.32 lb
Product Width:
18.625 in
Department:
Electrical
Product Type:
Type 1
Product Model:
Slide rite clevis hanger
Product Finish:
Yellow zinc chromate
Product Details:
Type 1
Product Material:
Steel

B-LINE B3100-14ZN – Frequently Asked Questions

1) What threaded rod size does this 14 inch clevis hanger take?
It takes 1 inch rod with 8 threads per inch (1-8). Order the rod, nuts and the overhead anchor separately, they do not come with the hanger.
2) Is the B-Line clevis hanger for 14 inch pipe UL listed?
It is cUL Listed, which is what an inspector on a Canadian job or a listed-assembly spec will be looking for on the hanger itself.
3) Will yellow zinc chromate hold up for my install, or do I need galvanized?
The B3100-14ZN is carbon steel with a yellow zinc chromate finish. That is a dry indoor plated finish, good for interior mechanical rooms, ceiling spaces and conditioned areas. For exterior, wet or corrosive runs, specify a hot dip galvanized or stainless clevis hanger instead.
4) Is this a Type 1 hanger per the standard pipe hanger classification?
Yes, the B3100-14ZN is a Type 1 adjustable clevis, the classification normally called out on mechanical and plumbing drawings for suspended horizontal pipe.
5) Can I use a clevis hanger for vertical pipe risers?
No. A clevis hanger like the B3100 supports horizontal pipe from a threaded rod drop overhead. Vertical risers need riser clamps bearing on the floor penetration instead.
6) How heavy is the B3100-14ZN hanger itself?
14.32 lb per hanger. That is dead load you add on top of the pipe and contents when you size your rod, anchors and structural attachment, and it is enough that stocking a full ceiling's worth on a cart is a two-trip job.
