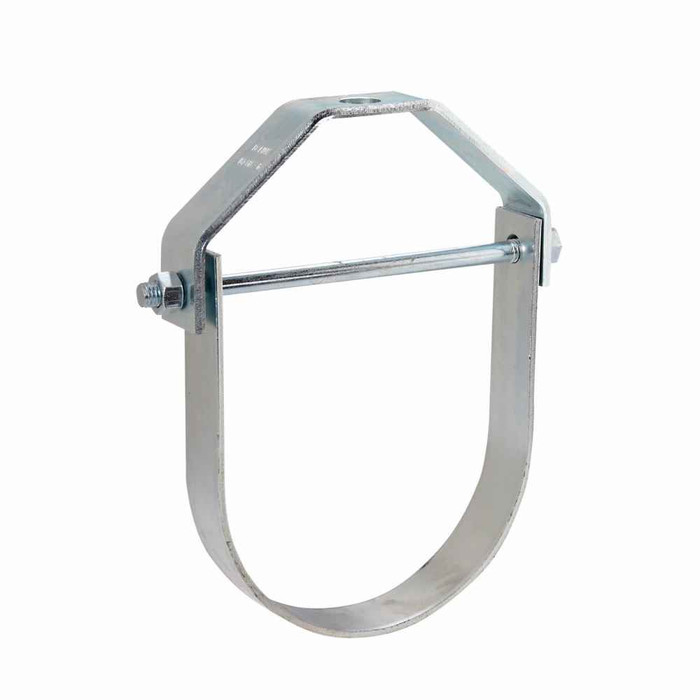

Eaton B-Line series clevis hanger, Steel, Plain, 1/2"-13 rod size, Clevis hanger
Manufacturer Resources
Product Specs
- Certifications:
- cULus Listed
- Product Height:
- 12.56 in
- Product Length Depth:
- 2 in
- Product Weight:
- .42 lb
- Product Width:
- 7.13 in
- Department:
- Electrical
- Product Group:
- Mounting Hardware
- Product Subgroup:
- Hangers
- Product Type:
- Clevis hanger
- Product Finish:
- Plain
- Product Details:
- Clevis hanger
- Product Material:
- Steel
B-LINE FIG 1NFPA-8-PLN – Frequently Asked Questions
1) Is a plain finish clevis hanger OK outdoors or in a damp area?
Plain finish steel is a bare, uncoated carbon steel and belongs indoors in dry conditions. For exterior runs, parking structures, mechanical rooms with condensation, or anywhere wash-down occurs, specify a galvanized or epoxy coated version of the same hanger instead. The FIG 1NFPA-8-PLN is the plain steel option.
2) What else do I need to order with a clevis hanger to hang pipe?
The hanger itself is the clevis assembly with its cross bolt and nut. You still need the 1/2"-13 threaded rod cut to length, and whatever attaches that rod to the structure, such as a beam clamp, concrete insert, or rod coupling. None of that comes with the hanger.
3) Should I use a clevis hanger or a split ring hanger for my pipe run?
A clevis hanger is the choice when you want to adjust pipe elevation after the rod is up, since the cross bolt lets you shift the pipe within the yoke, and it is the usual pick for sprinkler and larger horizontal runs. A split ring or swivel ring hanger is quicker on small diameter lines and where you just need the pipe held at a fixed height. This B-Line Eaton part is the clevis type in plain steel.
4) Can I use the B-Line FIG 1NFPA clevis hanger on electrical conduit runs?
Yes. It is catalogued by Eaton B-Line for electrical work, and a steel clevis hanger on 1/2 inch rod is a common way to support rigid conduit and EMT runs from a ceiling. Size the hanger to the conduit outside diameter, not the trade size.
5) What is the exact part number to order this B-Line clevis hanger under?
Order it as Eaton B-Line FIG 1NFPA-8-PLN. The -PLN suffix is the plain steel finish, and the 8 is the size designation within the FIG 1NFPA clevis hanger series.
