B-Line Eaton series conduit su...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1,184.31

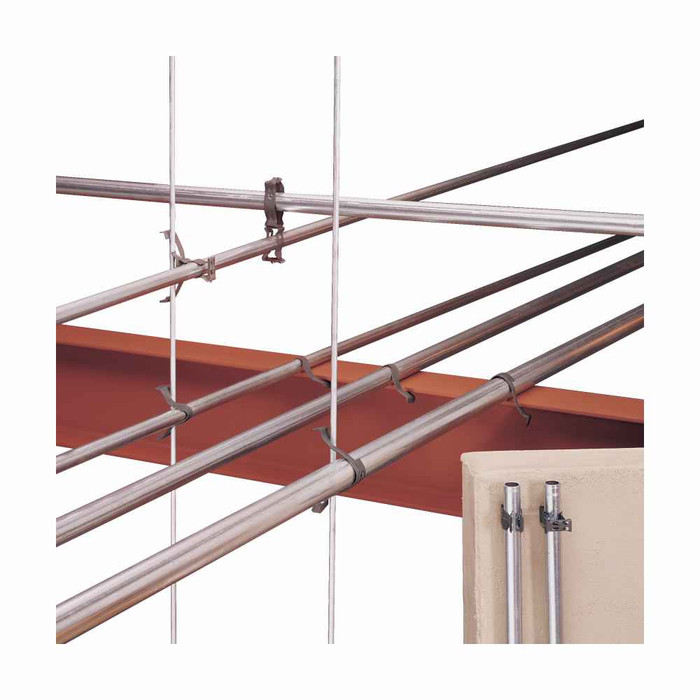

B-Line Eaton series conduit support fasteners, Beams, 1" Height, 1" Length, 1" Width, 0.11lbs, Conduit size: 1.25" EMT/Rigid, Conduit to beam fastener

B-Line Eaton series conduit support fasteners, Beams, 1" Height, 1" Length, 1" Width, 0.11lbs, Conduit size: 1.25" EMT/Rigid, Conduit to beam fastener

(No reviews yet) Write a Review

Model: BG-32-C1
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,184.31
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series conduit support fasteners, Beams, 1" Height, 1" Length, 1" Width, 0.11lbs, Conduit size: 1.25" EMT/Rigid, Conduit to beam fasteners, .5" Max mount size, 25 lbs load capacity

Manufacturer Resources

Product Specs

Application:
Supports conduit and electrical boxes
Certifications:
UL/CUL listed
Load Capacity:
25 lbs
Mounting Dimensions Max:
0.5
Product Category:
Beams
Product Height:
1 in
Product Length Depth:
1 in
Product Weight:
.11 lb
Product Width:
1 in
Department:
Electrical
Product Group:
Conduit & Fittings
Product Subgroup:
Conduit Accessories
Product Type:
Conduit to beam fasteners
Product Size:
Conduit size: 1.25 inch EMT/Rigid
Product Details:
Conduit to beam fasteners

B-LINE BG-32-C1 – Frequently Asked Questions

1) What thickness of beam flange will the BG-32-C1 conduit clamp attach to?
Maximum mounting thickness is 0.5 inch, so it clips onto beam flanges, bar joist angles, or similar steel edges up to a half inch thick. Anything heavier than that and you need a larger beam clamp.
2) How much weight can a single B-Line BG-32-C1 conduit to beam fastener carry?
Rated load is 25 lbs per fastener. That covers a supported span of 1-1/4 inch EMT plus normal incidentals, but it is not a hanger for a stacked group of raceways or heavy rigid runs with long unsupported spans. Space your supports so no single clip carries more than its 25 lb share.
3) Can I use this B-Line beam clip to hang an electrical box, not just conduit?
It is made to support conduit and electrical boxes off structural steel. Whatever you hang, the combined weight has to stay inside the 25 lb rating and the steel edge has to be 0.5 inch thick or less.
4) What is the exact part number to reorder for 1-1/4 inch conduit beam clips?
Order Eaton B-Line part BG-32-C1. That number carries the 1-1/4 inch EMT/rigid size and the 0.5 inch maximum mount thickness, so specifying it keeps repeat orders consistent across a facility.
