B-Line Eaton series Flex tray ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$2,188.18

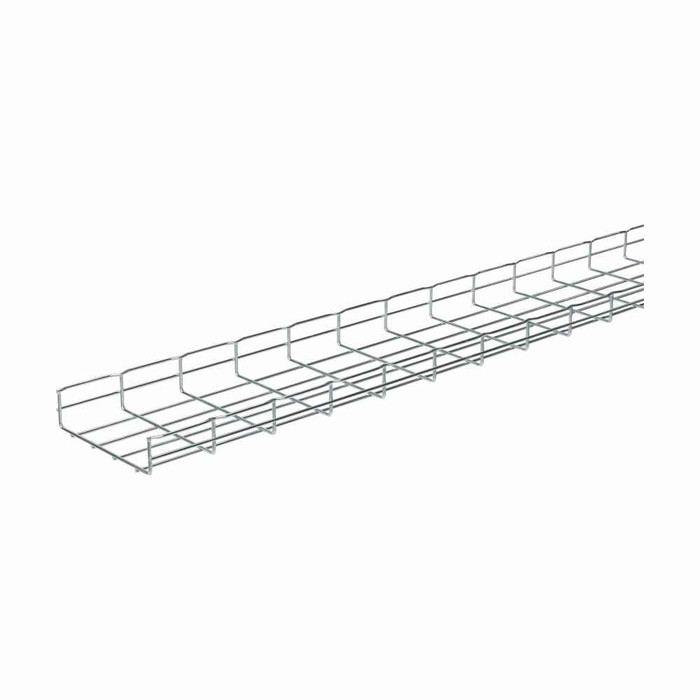

B-Line Eaton series Flex tray wire basket tray, Food preparation and wash down areas applications, Stainless steel, Steel, 35.8" actual area inside tr

B-Line Eaton series Flex tray wire basket tray, Food preparation and wash down areas applications, Stainless steel, Steel, 35.8" actual area inside tr

(No reviews yet) Write a Review

Model: FT2X18X10 SS
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,188.18
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series Flex tray wire basket tray, Food preparation and wash down areas applications, Stainless steel, Steel, 35.8" actual area inside tray, 2" deep flex tray

Manufacturer Resources

Product Specs

Application:
Food preparation and wash down areas applications
Certifications:
CE
Product Height:
2.38 in
Product Length Depth:
118.312 in
Product Weight:
18.9 lb
Product Width:
18 in
Special Features:
35.8" area inside tray
Department:
Electrical
Product Type:
2" deep flextray
Product Finish:
Stainless steel
Product Details:
2" deep flextray
Product Material:
Steel

B-LINE FT2X18X10 SS – Frequently Asked Questions

1) Is the B-Line FT2X18X10 SS wire basket tray suitable for food prep and washdown areas?
That is exactly what the Eaton B-Line Flex Tray FT2X18X10 SS is specified for. It is a stainless steel finish tray listed for food preparation and wash down area applications, where open wire basket construction lets water and debris fall through instead of collecting in a solid-bottom tray.
2) What are the actual dimensions of the FT2X18X10 SS flex tray section?
The section runs 118.312 inches long, 18 inches wide, and 2.38 inches high, and it is built as a 2 inch deep flextray. Usable area inside the tray is stated at 35.8 inches. Each section weighs 18.9 lb, so one person can generally handle a stick on a lift.
3) Is the B-Line flex tray stainless steel all the way through or just plated?
The FT2X18X10 SS is catalogued with a steel base material and a stainless steel finish. That is what makes it the choice over a standard pre-galvanized or electroplated basket in a washdown environment where the tray gets hit with water and cleaning chemicals on a schedule.
4) Do splice hardware and supports come with the B-Line FT2X18X10 SS tray?
What ships is the tray section itself, a single 118.312 inch stick of 18 inch wide, 2 inch deep stainless basket. Splice connectors, hold-down clamps, trapeze or wall bracket supports, and any bonding hardware are separate items you order to suit the run, so count your joints and support spacing before you place the order.
5) Can wire basket tray be cut and bent on site to form elbows and drops?
Yes, that is the working advantage of flex tray over fabricated ladder or solid-bottom tray. The wire mesh is cut with a bolt cutter or cable tray cutter and bent to form elbows, tees, and drops without ordering pre-made fittings, so a single 118.312 inch stainless section covers a run with turns in it. Deburr and treat any cut ends, particularly in a washdown area.
6) Will 18 inch wide basket tray fit above a commercial kitchen ceiling with limited plenum space?
Overall height on this section is 2.38 inches, so it takes very little vertical space compared with a deeper basket or ladder tray. The 18 inch width is the governing dimension for tight plenums, and you still need clearance above for the cable bundle and below for your trapeze rod or bracket. Where headroom is the constraint but you need the same fill, a narrower basket run at the same 2 inch depth is the alternative.
7) Does the Eaton B-Line flex tray carry any certification marking?
CE is the certification listed for this flex tray. That is the only marking carried on the record for the FT2X18X10 SS.
