B-Line Eaton series Flex tray wire basket tray, Limited industrial and interior, Pre-galvanized zinc, Steel, 143.3" actual area inside tray, 6" deep f

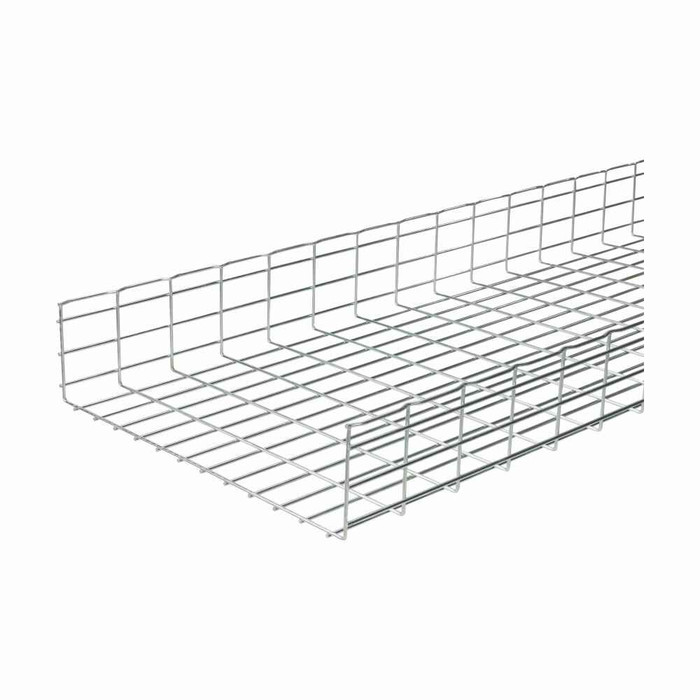

The Eaton B-Line Flex Tray FT6X24X10 GS is a 6 inch deep basket with a 24 inch width and a length of 118.312 inches (a nominal 10 foot stick). Overall height is listed at 6.38 inches, and the usable area inside the tray is 143.3 square inches. Weight is 9.66 lb per section.

No. The FT6X24X10 GS carries a pre-galvanized zinc finish and is rated by Eaton for limited industrial and interior use. Pre-galvanized steel is a mill-coated product with cut edges left bare, so it belongs in dry indoor runs. For exterior, washdown, or corrosive environments, specify a hot dip galvanized or stainless version of the Flex Tray instead.

Fill is calculated off the cross section, and this Flex Tray section gives 143.3 square inches of actual usable area inside the basket. Take the outside diameter of your cable, work out its area, and divide into 143.3 while staying inside whatever fill percentage your spec or the NEC allows for the cable type. The 6 inch depth is the deep profile in the Flex Tray range, so it suits heavy data bundles or power feeders rather than a light single-layer run.

Wire basket like this 24 inch wide B-Line Flex Tray is the usual pick above data and comms rooms: the open mesh lets you drop cable in anywhere along the run, ventilates the bundle, and gets field cut and bent to route around obstructions without ordering fittings. Ladder and solid bottom tray are the better call when you need defined support spacing for heavy power feeders or a solid bottom to block dust and falling debris. At 6 inches deep this one is on the deep end of basket tray, so it handles a tall bundle rather than a single layer.

Yes, the Flex Tray FT6X24X10 GS is listed with a CE certification. The body is steel with a pre-galvanized finish.

Each section weighs 9.66 lb empty, so a two man crew handles a full 118.312 inch length easily overhead. Remember that the tray weight is small next to the cable load: size trapeze rod and anchors off the filled weight of the bundle you are putting in the 143.3 square inch cross section, not off the 9.66 lb.
