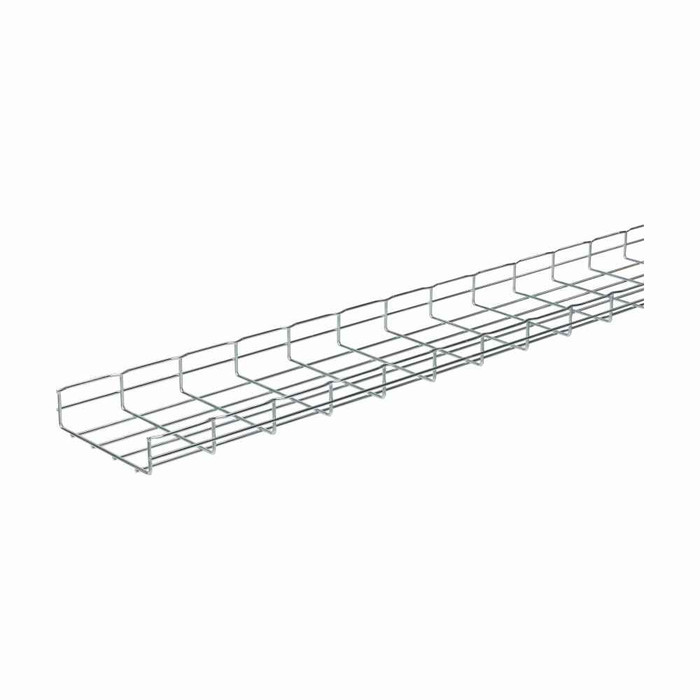

Eaton B-Line series Flex tray wire basket tray, Limited industrial and interior, Pre-galvanized zinc, Steel, 35.8" actual area inside tray, 2" deep flex tray
Manufacturer Resources
Product Specs
- Application:
- Limited industrial and interior
- Certifications:
- CE
- Product Height:
- 2.38 in
- Product Length Depth:
- 118.312 in
- Product Weight:
- 18.9 lb
- Product Width:
- 18 in
- Special Features:
- 35.8" area inside tray
- Department:
- Electrical
- Product Type:
- 2" deep flextray
- Product Finish:
- Pre-galvanized
- Product Details:
- 2" deep flextray
- Product Material:
- Steel
B-LINE FT2X18X10 GS – Frequently Asked Questions
1) What size is the B-Line FT2X18X10 GS flex tray, and how much usable width do I actually get inside it?
The B-Line Eaton FT2X18X10 GS wire basket tray is an 18 inch wide, 2 inch deep flextray with a 118.312 inch length. Usable area inside the tray is 35.8 inches, so plan cable fill against that figure rather than the nominal 18 inch outside width. Overall height is 2.38 inches.
2) Can I use this pre-galvanized wire basket tray outdoors or in a corrosive area?
No. The FT2X18X10 GS carries a pre-galvanized zinc finish on steel and is rated for limited industrial and interior applications. Pre-galvanized steel is a dry, indoor finish, so for exterior runs, washdown areas, or chemically aggressive environments you want a hot-dip galvanized or stainless basket tray instead.
3) Does the B-Line FT2X18X10 GS flex tray come with splice hardware, supports, or hangers?
What ships is the flextray section itself, an 18 inch wide by 2 inch deep pre-galvanized steel basket. Couplers, splice washers, wall brackets, trapeze hangers, threaded rod, and any bonding jumpers are separate items and need to be ordered to suit your support spacing and mounting method.
4) What is the exact part number to order this 18 inch by 2 inch B-Line flextray?
Order Eaton B-Line part number FT2X18X10 GS. The designation reads out as 2 inch depth, 18 inch width, 10 foot nominal length, GS for the pre-galvanized steel finish.
5) Can wire basket tray like this be field-cut and bent to form turns and drops?
Yes, that is the point of a flextray. The welded steel wire mesh construction lets you cut a section with bolt cutters and bend it to form elbows, tees, and drops on site instead of ordering fittings. Note that cutting removes the factory finish at the cut ends, and on a pre-galvanized product those ends should be treated with a cold galvanizing compound in any damp interior location.
6) Does this B-Line wire basket tray carry any certifications for a specification submittal?
The FT2X18X10 GS flextray is CE marked. That is the certification held on record for it, so cite CE on your submittal for this basket tray.
