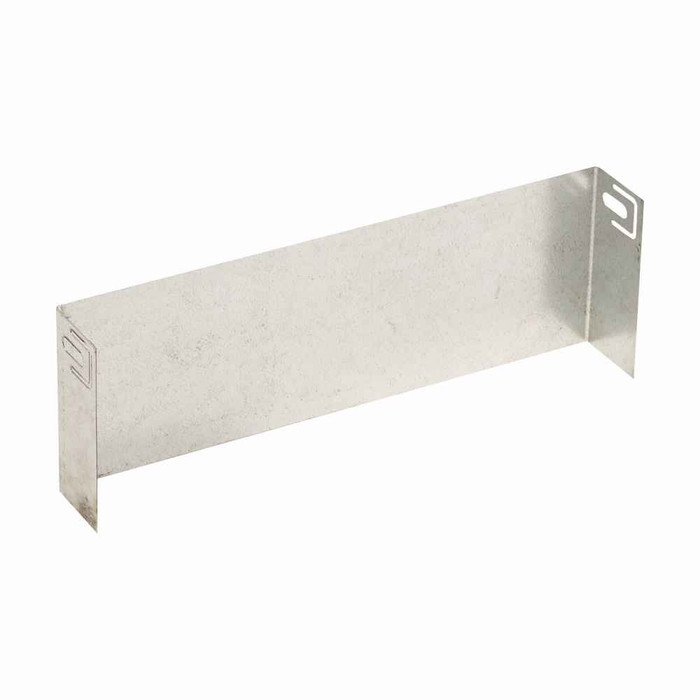

Eaton B-Line series Flextray wire basket tray, 4" X 6", Steel, Pre-galvanized, Blind ends
Manufacturer Resources
Product Specs
- Certifications:
- UL Classified
- Compliances:
- CSA
- Product Height:
- 4 in
- Product Length Depth:
- 4 in
- Product Weight:
- .098 lb
- Product Width:
- 6 in
- Department:
- Electrical
- Product Type:
- Blind ends
- Product Finish:
- Pre-galvanized
- Product Details:
- Blind ends
- Product Material:
- Steel
B-LINE FT BE 4X6 – Frequently Asked Questions
1) What size Flextray does the B-Line FT BE 4X6 blind end fit?
The Eaton B-Line FT BE 4X6 blind end is sized for a 4 inch deep by 6 inch wide Flextray wire basket run. It caps the open cut end of the basket. If your tray is a different width or depth, you need the blind end matching those dimensions, not this one.
2) Is the B-Line FT BE 4X6 blind end UL listed for cable tray use?
It is UL Classified and carries CSA compliance. That matters on inspected commercial and institutional jobs where the whole tray system, accessories included, has to be a recognized assembly.
3) What is a blind end on a wire basket cable tray actually for?
It closes off the terminated end of a wire basket run. When Flextray is field cut, you are left with exposed wire stubs at the end of the section. The blind end covers that opening so cable is not dragged across cut wire and the run has a finished termination. It is an accessory, not a piece of tray, so it adds no usable run length.
4) Is the pre-galvanized finish on this Flextray blind end OK for outdoor or wet locations?
Pre-galvanized steel is a mill-galvanized product intended for dry indoor use, typical of data rooms, ceilings, and interior plenum runs. For exterior, washdown, or corrosive environments you want a hot dip galvanized or stainless Flextray accessory instead. Match the blind end finish to the tray finish so you are not mixing coatings in the same run.
5) How many blind ends should I order for a Flextray basket run?
Count the terminations, not the sections. A run that dead ends at a wall or stops short of a cabinet needs one blind end per open end at that size. Runs that continue into a splice, a tee, or a drop out do not need one. The FT BE 4X6 covers 4 by 6 inch ends only, so on a job with mixed basket sizes, tally each size separately.
6) How much does one Flextray 4x6 blind end weigh for takeoff purposes?
Each FT BE 4X6 blind end weighs .098 lb, so even a large quantity adds essentially nothing to the supported load of a tray run. It is not a factor in your hanger spacing calculation.
