Eaton B-Line series hanging system, KwikWire wire rope, Toggle style single termination, 1/16" wire max, 120" wire length
Manufacturer Resources
Product Specs
- Certifications:
- cULus Listed
- Product Diameter:
- .06 in
- Product Height:
- 120 in
- Product Weight:
- 1.36 lb
- Wire Diameter Max:
- .062 in
- Wire Length:
- 120 in
- Department:
- Electrical
- Product Type:
- Toggle termination
- Product Model:
- KwikWire wire rope
- Product Details:
- Toggle termination
B-LINE BKT-063-120 – Frequently Asked Questions
1) What does the toggle end on the B-Line KwikWire BKT-063-120 attach to?
The toggle end is the anchor side of the assembly. A toggle passes through a drilled hole in the structure above, then flips crosswise to bear on the far side of the deck or panel, giving you a fixing where you cannot reach both faces. It is a single termination, so the toggle is on one end only and the other end carries the gripper you set at the fixture.
2) Do I need a second hanger kit to hang a light fixture with KwikWire?

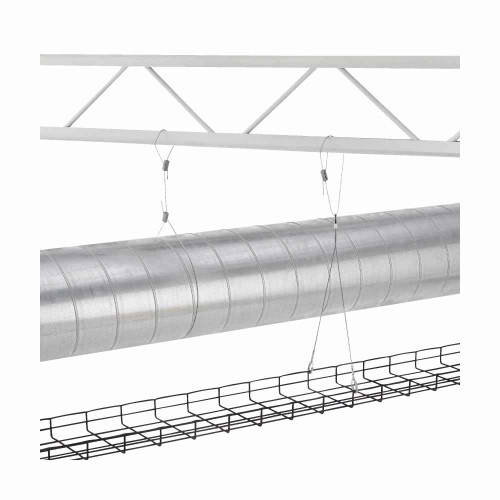

Yes, plan on more than one. A single termination kit is one suspension point. Linear fixtures and trays normally need two or four points spaced along the run, so order a kit per point. Mixing termination styles across a job is also normal, since the anchor detail changes with what is overhead even when the 1/16 inch wire size stays the same.
3) When should I use a toggle KwikWire hanger instead of a hook or beam clamp version?
Pick the toggle when the structure above is a hollow deck, a panel, or a ceiling you can only get at from one side, because the toggle sets through a drilled hole and bears on the blind face. If you have exposed steel to grab, a beam clamp style termination is the faster fixing; if there is an existing threaded rod or eye, a hook style drops straight on. All of these are the same 1/16 inch KwikWire system, so only the end fitting changes.
4) How much does one B-Line KwikWire BKT-063-120 hanger weigh for shipping and takeoff?
1.36 lb per assembly, wire and toggle together. Useful when you are pricing out a few hundred drops or checking what a box of them adds to the load.
