Eaton B-Line series hanging system, KwikWire wire rope, Toggle style single termination, 1/16" wire max, 40" wire length
Manufacturer Resources
Product Specs
- Certifications:
- cULus Listed
- Product Diameter:
- .06 in
- Product Height:
- 40 in
- Product Weight:
- .56 lb
- Wire Diameter Max:
- .062 in
- Wire Length:
- 40 in
- Department:
- Electrical
- Product Type:
- Toggle termination
- Product Model:
- KwikWire wire rope
- Product Details:
- Toggle termination
B-LINE BKT-063-40 – Frequently Asked Questions
1) How long is the wire on the KwikWire BKT-063-40 toggle hanger?
The assembly comes with 40 inches of wire rope. KwikWire grippers let you pull the cable through and trim the excess, so treat 40 inches as your maximum drop, not a fixed one. If your drop from deck to fixture is longer than 40 inches, you need a longer wire length.
2) Is the Eaton B-Line KwikWire wire rope hanger UL listed for electrical work?
It's cULus Listed, so it carries both US and Canadian recognition, which is what an inspector on a commercial lighting or cable tray suspension job will look for.
3) What is a toggle termination used for on a KwikWire hanging system?
The toggle end is the anchor end. It folds to pass through a hole in the structure above (deck, purlin, or a hollow member) and then flips crossways to bear against the far side, which gives you a suspension point without threaded rod or a beam clamp. The BKT-063-40 is a single termination, so it's one wire, one toggle.
4) Can I use a KwikWire toggle hanger instead of threaded rod to hang light fixtures?
That's the point of the system. A KwikWire assembly replaces cut-to-length threaded rod with 1/16 inch wire rope and a locking gripper, so you set the height by pulling the cable rather than cutting and coupling rod. Toggle style, like the BKT-063-40, anchors by flipping behind the structure above; if you can't get a through-hole, you need a different top fitting such as a hook, eye, or beam clamp version.
5) Will one KwikWire toggle termination hang a whole fixture, or do I need more than one?

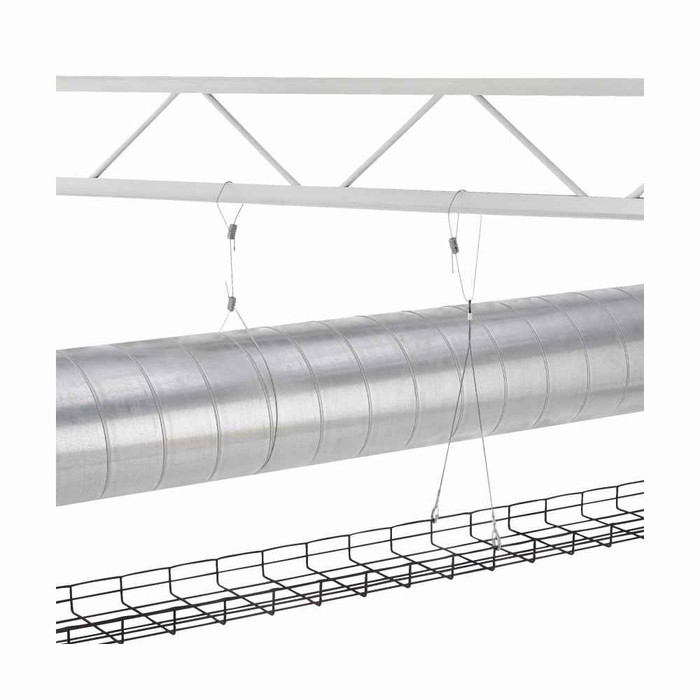

Each BKT-063-40 is a single-point assembly, one wire with one toggle anchor. A linear fixture, tray, or duct run normally needs two or more points, so count your suspension points per fixture and order accordingly rather than one per fixture.
6) How much does one BKT-063-40 KwikWire toggle assembly weigh?
About .56 lb each. That matters when you're ordering a pallet quantity for a warehouse lighting retrofit and estimating freight, and it also tells you the assembly itself adds almost nothing to the load on your anchor point.
