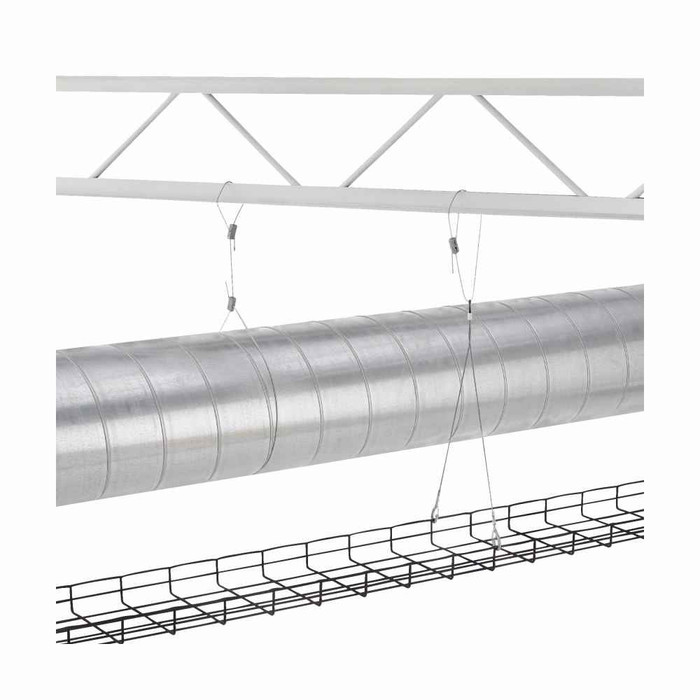

Eaton B-Line series hanging system, KwikWire wire rope, Y Toggle termination, 63" wire length
Manufacturer Resources
Product Specs
- Certifications:
- cULus Listed
- Product Diameter:
- .0625 in
- Product Height:
- 63 in
- Product Weight:
- .72 lb
- Wire Length:
- 63 in
- Department:
- Electrical
- Product Type:
- Y Toggle termination
- Product Model:
- KwikWire wire rope
- Product Size:
- 18 inch leg
- Product Details:
- Y Toggle termination
B-LINE BKYT18-063 – Frequently Asked Questions
1) Is the KwikWire BKYT18-063 listed for use in a commercial building?
It is cULus Listed, so it carries both UL and Canadian recognition for suspension use, which is what an inspector or an institutional spec will ask for on a fixture hanging system.
2) Should I use a Y toggle wire or two single-leg hangers for a suspended light fixture?
Use the Y toggle when the structure above gives you one convenient anchor point but the fixture needs two pickups, as on a linear strip or a 2x4 troffer. The Y keeps the fixture level off a single attachment. Two separate single-leg wires make more sense when you have two structural points that line up with the fixture's own hanging holes and you want independent adjustment at each end.
3) Do I need to order the anchor or fastener separately for a KwikWire suspension kit?
Yes. The BKYT18-063 is the wire rope assembly with the Y toggle termination and 18 inch legs. Whatever attaches the top of the wire to the structure, a beam clamp, a threaded-rod adapter, a toggle for deck, or a concrete anchor, is a separate line item and has to suit your building's structure.
