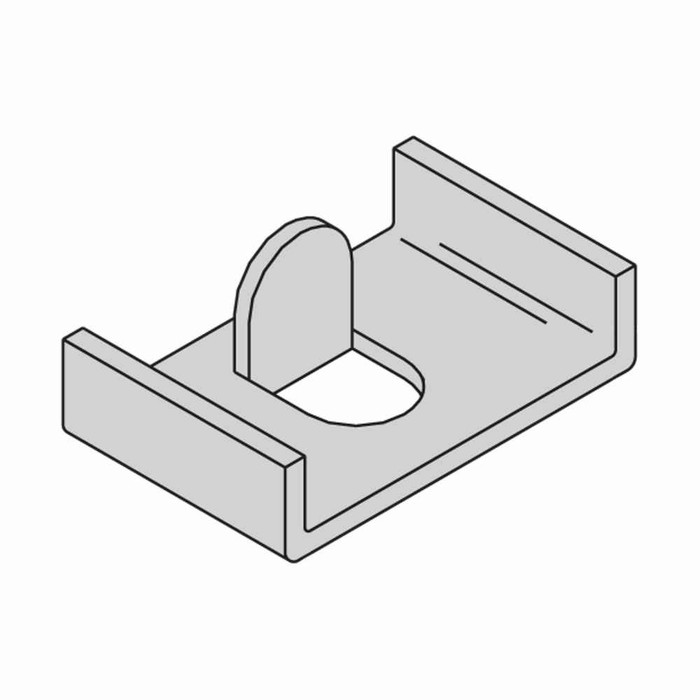

Eaton B-Line series open frame racks, 11 Gauge steel, 1/2"-13 thread size, Yellow zinc, 2" X 9/16" Tabbed framing clip
Manufacturer Resources
Product Specs
- Certifications:
- Not Applicable
- Product Height:
- .44 in
- Product Length Depth:
- 1.88 in
- Product Weight:
- .11 lb
- Product Width:
- 1.25 in
- Department:
- Electrical
- Product Model:
- 2" X 9/16" tabbed framing clip
- Product Finish:
- Yellow zinc chromate
- Product Size:
- 1/2 in - 13 thread size
- Product Material:
- Steel
B-LINE SB105YZ – Frequently Asked Questions
1) What thread size does the B-Line SB105YZ framing clip take?
The SB105YZ tabbed framing clip is tapped 1/2 inch - 13. That means your threaded rod, hanger rod, or bolt has to be 1/2-13 coarse thread; a 3/8-16 rod will not engage it. Order rod and hardware to match before the clip gets to the job.
2) Is the yellow zinc finish on this B-Line clip suitable for outdoor or damp locations?
The SB105YZ carries a yellow zinc chromate finish on steel. That is an indoor, dry-to-normal-environment plating, the standard choice for interior racking, telecom rooms, and mechanical spaces. For sustained outdoor exposure, wash-down areas, or corrosive atmospheres, specify a hot dip galvanized or stainless framing clip instead.
3) What is this B-Line tabbed clip actually used for?
It is a framing clip for Eaton B-Line series open frame racks. The tab locates the clip against the framing member and the 1/2-13 tapped hole receives threaded rod or bolts, so it is the tie point where a rack upright, runway, or overhead support connects. Contractors buy it as an assembly piece, not as a standalone bracket.
4) Does the SB105YZ framing clip come with the bolt or threaded rod?
No. The SB105YZ is the clip only, tapped 1/2-13. The rod, bolt, nuts, and washers are separate line items, so add 1/2-13 hardware in a matching finish to your order when you spec the clip.
5) What gauge steel is the B-Line SB105YZ framing clip made from?
It is 11 gauge steel. That is the heavier end of the formed-clip range, which is why it is used on Eaton B-Line open frame rack assemblies rather than light-duty sheet metal brackets.
