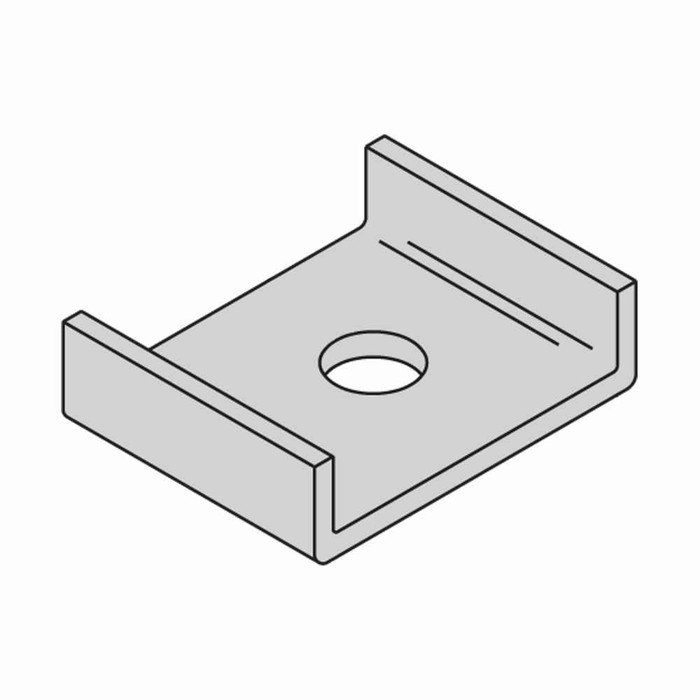

Eaton B-Line series open frame racks, 11 Gauge steel, 5/8"-11 thread size, Yellow zinc, 2" x 0.38" Bar framing clip
Manufacturer Resources
Product Specs
- Certifications:
- Not Applicable
- Product Height:
- .44 in
- Product Length Depth:
- 1.5 in
- Product Weight:
- .95 lb
- Product Width:
- 1.25 in
- Department:
- Electrical
- Product Model:
- 2" X 3/8" bar framing clip
- Product Finish:
- Yellow zinc chromate
- Product Size:
- 5/8 in - 11 thread size
- Product Material:
- Steel
B-LINE SB109DYZ – Frequently Asked Questions
1) What size bar does the B-Line SB109DYZ framing clip fit?
The SB109DYZ is a bar framing clip sized for 2 inch by 3/8 inch bar, so it clamps onto flat bar stock of that section. If your framing member is a different width or thickness, this clip will not seat correctly on it.
2) Is the B-Line SB109DYZ framing clip okay for a damp or corrosive electrical room?
The clip is steel with a yellow zinc chromate finish, which gives light corrosion resistance for indoor and sheltered work. For sustained wet, washdown, or exterior exposure, specify a hot dip galvanized or stainless clip instead.
3) How much space does the bar framing clip need around the beam?
Compact part: 1.5 inches deep, 1.25 inches wide, and .44 inch high, and it weighs .95 lb. That footprint matters when you are stacking clips along a bar or working tight to a wall or deck.
4) Does the B-Line framing clip come with the threaded rod or nuts?
No. The SB109DYZ is the clip only. The 5/8-11 rod, nuts, and washers for your drop are ordered separately, and the rod has to match the 5/8-11 tapping.
5) Is this the same as a beam clamp for an I-beam flange?
No. It is a bar framing clip made for 2 inch by 3/8 inch bar framing, not a beam clamp sized to a tapered I-beam flange. For structural beam flanges use a proper beam clamp rated for that flange thickness.
6) What gauge steel is the B-Line open rack framing clip made from?
11 gauge steel, per the Eaton B-Line series open frame rack description, finished in yellow zinc chromate.
