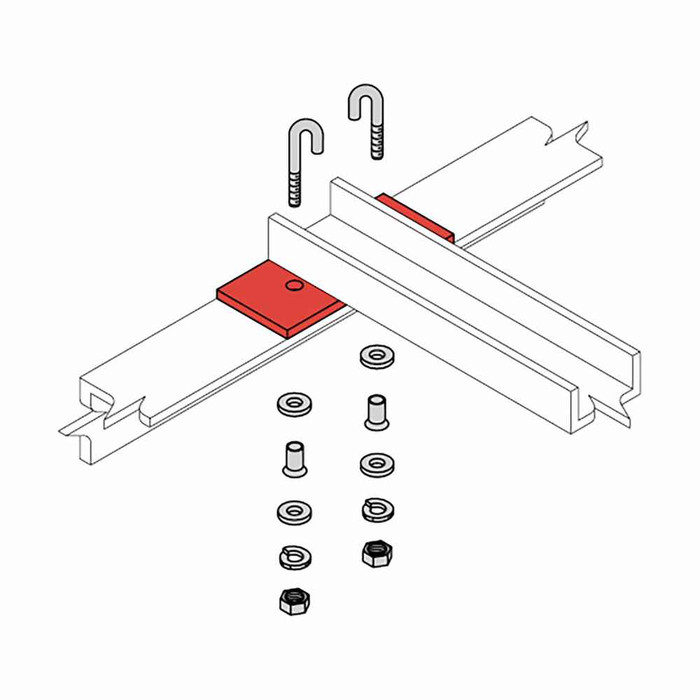

Eaton B-Line series open frame racks, Polyester fiberglass material, Base insulator, Red finish
Manufacturer Resources
Product Specs
- Certifications:
- Not Applicable
- Product Height:
- .063 in
- Product Length Depth:
- 15 in
- Product Weight:
- 1.8 lb
- Product Width:
- 20.3125 in
- Department:
- Electrical
- Product Model:
- Base insulator
- Product Color:
- Red
- Product Material:
- Polyester fiberglass
- Product Length:
- 15 in
B-LINE SB116003 – Frequently Asked Questions
1) What is the Eaton B-Line SB116003 base insulator used for on an open frame rack?
The SB116003 is a base insulator for Eaton B-Line series open frame relay racks. It goes between the rack base and the floor to isolate the rack frame from building steel, which is how a telecom or data room keeps the rack ground on a single dedicated path instead of letting the floor become a second ground reference. The part is molded polyester fiberglass, which is what gives the dielectric separation.
2) Does the B-Line SB116003 come with the isolation hardware kit?
The SB116003 is the fiberglass base insulator itself, 1.8 lb of molded polyester fiberglass. A full isolation job also needs insulating shoulder washers and bushings for the floor anchor bolts, otherwise the anchors short the rack straight back to the slab through the fasteners. Specify those separately.
3) Do I need one SB116003 per rack or one per base?
One SB116003 covers one rack base. An open frame relay rack has a single base plate, so one insulator per rack. If you are isolating a lineup of six racks, order six. Ordering by the B-Line part number SB116003 keeps the lineup consistent.
4) Why is the base insulator red, and does the color matter?
Red is the finish on this part, and in a telecom room it is doing a job: an isolated rack base is meant to be visible at a glance so the next technician does not bond it to building steel by mistake during a moves-adds-changes visit. Color is molded through the polyester fiberglass, not a coating that scuffs off under the rack base.
