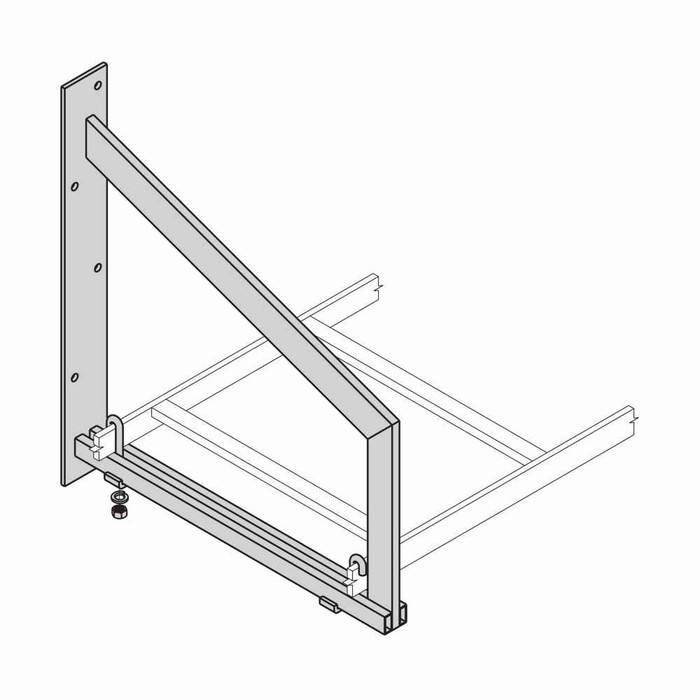

B-Line Eaton series runway shelf bracket, Use to support cable runway from wall, Sized for 1-1?2 and 2 inch stringers, Runway wall support, Steel, Tel

The bracket measures 21 inches in length/depth, 25 inches in height and 3 inches wide, so plan your wall layout and any conduit or equipment below it around a 21 inch projection off the wall face.

Yes. The SB214A18KTG runway wall support is UL Listed, which is what most telecom room and data center specs call for on runway support hardware.

It is ASTM A36 steel with a telco gray powder coat, the standard finish on cable runway systems, so it matches gray runway and ladder rack already in most telecom rooms.

A wall-mounted shelf bracket like the SB214A18KTG carries the runway off the wall, which suits perimeter runs along a wall in a telecom or equipment room. For runway crossing open floor space away from walls, you need threaded rod ceiling hangers or floor-supported posts instead; this bracket only works where a structural wall runs alongside the runway path.

The SB214A18KTG is the steel bracket itself. Wall fasteners are selected to suit the wall you are anchoring into (concrete, block, or steel stud backing), so order anchors separately along with the hardware that attaches the stringer to the bracket.

Each bracket weighs 9.3 lb, light enough for one person to hold in place while starting the wall anchors, though a second set of hands helps when you are setting a run at height.
