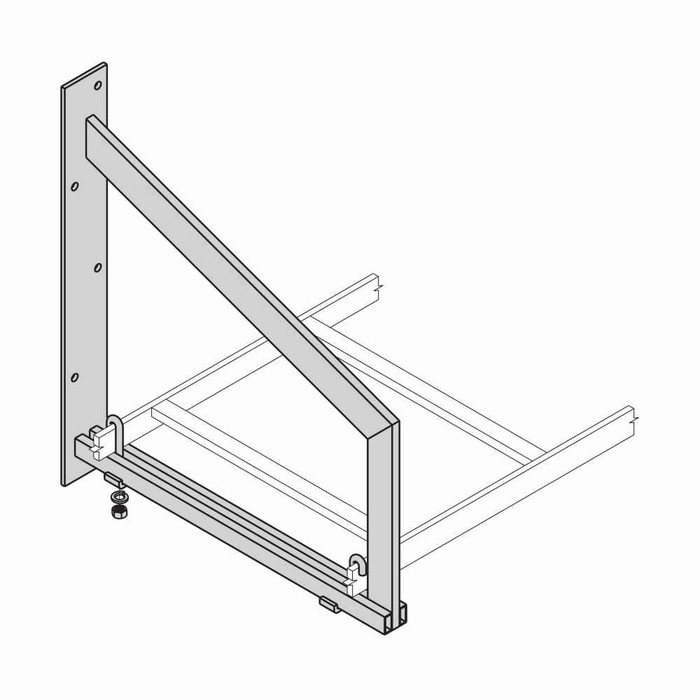

Eaton B-Line series runway shelf bracket, Used to support cable runway, 18" runway wall support, ASTM A36 structural steel, Yellow zinc
Manufacturer Resources
Product Specs
- Application:
- Used to support cable runway
- Certifications:
- UL Listed
- Material Details:
- Yellow zinc ASTM A36 steel
- Product Height:
- 25 in
- Product Length Depth:
- 18 in
- Product Weight:
- 9 lb
- Product Width:
- 3 in
- Department:
- Electrical
- Product Group:
- Clamps & Supports
- Product Subgroup:
- Supports
- Product Type:
- Runway wall support
- Product Details:
- Runway wall support
B-LINE SB214A15KYZ – Frequently Asked Questions
1) What size cable runway does the B-Line SB214A15KYZ wall bracket support?
The Eaton B-Line SB214A15KYZ is an 18 inch runway wall support, so it carries cable runway up to 18 inches wide. Its stated depth is 18 inches, with an overall height of 25 inches and a 3 inch width across the bracket body. If your runway is wider than 18 inches, this bracket is the wrong length and you need the matching wider wall support instead.
2) Does this wall bracket mount runway to a wall, or does it hang from the ceiling?
It is a wall support. The SB214A15KYZ mounts flat to the wall and cantilevers out to carry cable runway, so it suits perimeter runs along a room wall. For a center-of-room run away from any wall you need threaded-rod ceiling hangers or a floor-supported stand, not this bracket.
3) What is this bracket made of, and will the yellow zinc finish hold up indoors?
The bracket is ASTM A36 structural steel with a yellow zinc finish. A36 is the common hot-rolled structural grade, and yellow zinc plating is a plated indoor finish, suited to conditioned equipment rooms rather than exterior or wash-down areas. For outdoor or corrosive locations you want a hot-dip galvanized or stainless support instead.
4) Do I need anything besides the bracket to complete a runway wall run?
The bracket itself is the wall support only. A finished run still needs the cable runway sections, the runway-to-bracket hardware, and wall anchors chosen for your substrate (concrete, CMU, or backed stud). Plan bracket spacing along the wall from your runway manufacturer's support spacing for the cable load you are carrying.
5) How much does the B-Line SB214A15KYZ bracket weigh for handling and anchor sizing?
Each bracket weighs 9 lb. That is a one-man lift, but the dead load plus the runway and loaded cable is what drives your anchor selection, so size wall anchors to the total supported load and the wall construction you are fastening into.
