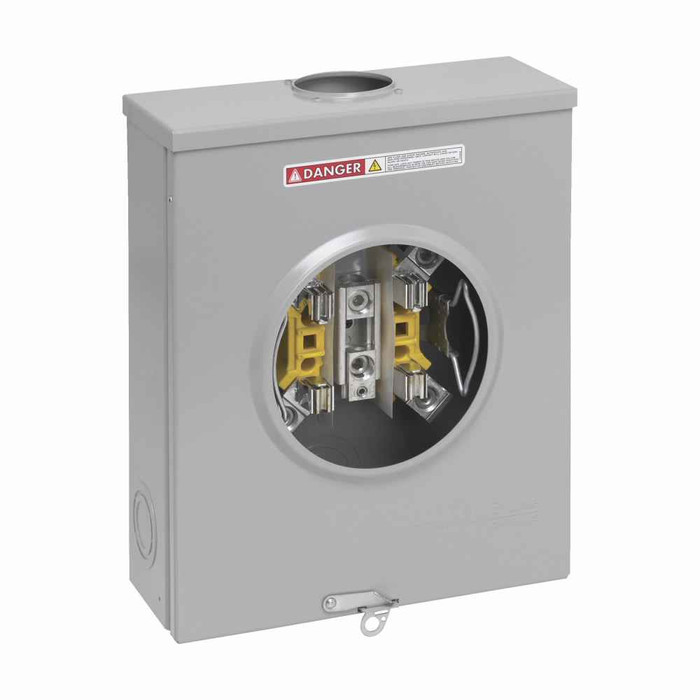

Eaton B-Line series single meter sockets, 125 A, ANSI 61 gray coat, Aluminum, 4 terminals
Manufacturer Resources
Product Specs
- Certifications:
- UL Listed
- Product Height:
- 12.25 in
- Product Length Depth:
- 5.25 in
- Product Weight:
- 14.091 lb
- Product Width:
- 12.25 in
- Department:
- Electrical
- Product Finish:
- ANSI 61 gray paint
- Product Material:
- Aluminum
- Product Length:
- 5.25 in
B-LINE EN20L42GRST – Frequently Asked Questions
1) What amp rating and terminal count does the B-Line EN20L42GRST meter socket have?
The Eaton B-Line EN20L42GRST is a single-position meter socket rated 125 A with 4 terminals. The 4-terminal configuration is what utilities typically require for single-phase 3-wire service with a neutral landing point, so confirm your utility's socket spec sheet calls for a 4-jaw 125 A can before ordering.
2) Will a 125 A meter socket work for a 200 A service upgrade?
No. The EN20L42GRST is rated 125 A, so it cannot be used ahead of a 200 A service. Use it where the service or sub-metered feed is 125 A or less, such as a small apartment unit, accessory dwelling, or an individual tenant position on a light commercial building. For a 200 A residential upgrade you need a socket rated at 200 A instead.
3) What are the dimensions of the EN20L42GRST meter socket enclosure for wall layout?
It measures 12.25 x 12.25 x 5.25 inches (height, width, depth), so plan on a roughly square footprint just over a foot each way with about 5-1/4 inches of standoff from the wall face. Weight is 14.091 lb, light enough for one person to hold while fastening, which matters when you're mounting it on a meter pedestal or siding block.
4) Is this meter socket suitable for outdoor use on a building exterior?
The enclosure is aluminum with an ANSI 61 gray painted finish, the standard exterior utility gear finish, and aluminum won't rust out the way plain steel does at a coastal or high-humidity site. It is UL Listed. For a specific wet-location NEMA type, match the enclosure rating your utility or the drawing calls out.
5) Is the EN20L42GRST a single meter socket or a multi-position meter stack?
Single position. It holds one meter, so for a multi-family building where several tenants are metered at one location you'd want a multi-position meter stack or a gang socket, not this can. One EN20L42GRST per metered service or per sub-metered unit is the way it lays out.
6) Is this meter socket UL Listed for an inspected installation?
Yes, the EN20L42GRST carries a UL Listing, which is what an electrical inspector and most utilities require before they will set a meter. Local utilities also maintain their own approved-socket lists, so check that the model appears on yours.
7) Do I have a choice of finish or configuration when ordering the B-Line EN20L42GRST?
There's one configuration: model EN20L42GRST, 125 A, 4 terminal, aluminum body in ANSI 61 gray paint. No finish or size options to specify, so the only decision is whether 125 A and a 4-jaw arrangement match your utility's requirement.
