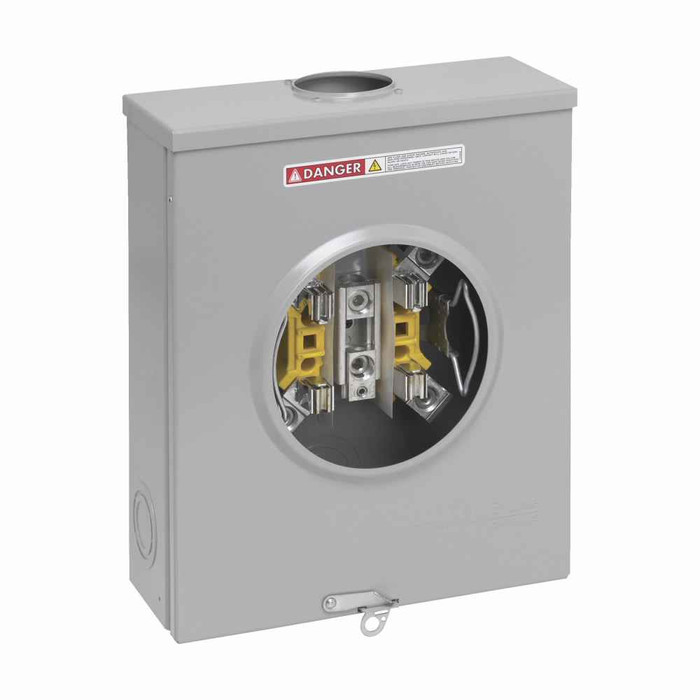

Eaton B-Line series single meter sockets, 200 A, ANSI 61 gray coat, Aluminum, 4 terminals
Manufacturer Resources
Product Specs
- Certifications:
- UL Listed
- Product Height:
- 12.25 in
- Product Length Depth:
- 5.25 in
- Product Weight:
- 8.092 lb
- Product Width:
- 8.25 in
- Department:
- Electrical
- Product Finish:
- ANSI 61 gray paint
- Product Material:
- Aluminum
B-LINE EN12L41GRST MS76 – Frequently Asked Questions
1) Is the B-Line EN12L41GRST meter socket rated for a 200 amp residential service?
Yes. The Eaton B-Line EN12L41GRST MS76 is a single-position meter socket rated 200 A with 4 terminals, which is the standard configuration for a single-phase 200 A service drop. It is UL Listed.
2) What does a 4-terminal meter socket mean, and will it work on my 120/240 V single-phase service?
Four terminals is the jaw count for a single-phase, 3-wire 120/240 V service: two line jaws and two load jaws. The EN12L41GRST MS76 socket is built that way at 200 A. If your utility meter is a 5-jaw or 7-jaw form (network or three-phase service), this is the wrong socket for that meter.
3) Does the EN12L41GRST meter socket include a main breaker or disconnect?
No. It is a meter socket only, a 200 A 4-terminal single-position socket. The overcurrent device lives downstream in your panel or in a separate service disconnect. If you need metering and a main in one enclosure, you want a meter-main combination unit rather than this socket.
4) Is this meter socket suitable for outdoor mounting on a building exterior?
The enclosure is aluminum with an ANSI 61 gray paint finish, so it resists corrosion better than a plain steel box in a coastal or damp location. Aluminum plus a painted topcoat is the usual choice for exterior service equipment. Note that the socket is UL Listed, but confirm the jaw form and the socket type your utility requires before you set it.
5) Is the EN12L41GRST a single-position socket or a multi-tenant meter stack?
Single position. It houses one meter only, so a duplex or four-plex building needs one socket per tenant or a ganged multi-meter stack instead. For a single 200 A service, one of these is the whole job.
6) Will the gray finish on this Eaton B-Line socket match the other service equipment on my buildings?
It is finished in ANSI 61 gray paint, the standard utility and switchgear gray, so it reads as the same color as most meter stacks, CT cabinets, and pull sections already on multi-family or commercial service walls.
