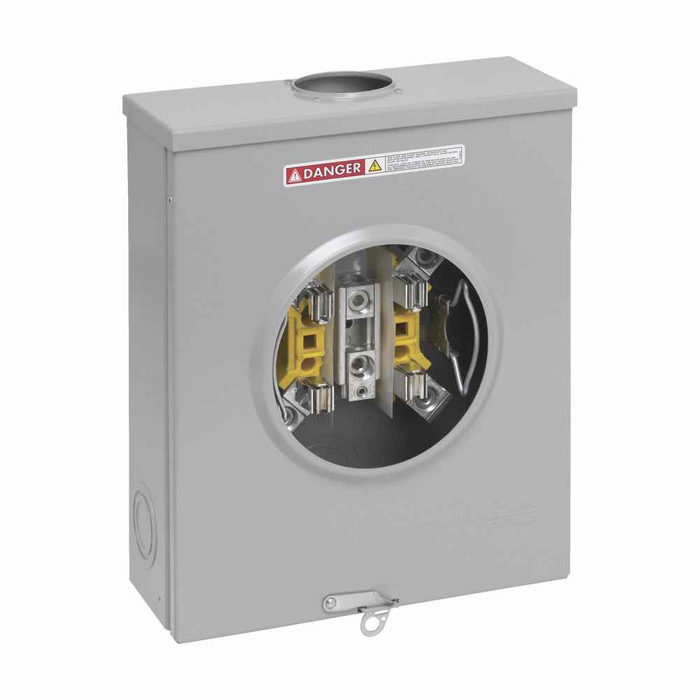

Eaton B-Line series single meter sockets, 200 A, ANSI 61 gray coat finish, Aluminum material
Manufacturer Resources
Product Specs
- Certifications:
- UL Listed
- Product Height:
- 15.25 in
- Product Length Depth:
- 5.25 in
- Product Weight:
- 15.409 lb
- Product Width:
- 13.25 in
- Department:
- Electrical
- Product Finish:
- ANSI 61 gray paint
- Product Material:
- Aluminum
B-LINE EN20L44GRST – Frequently Asked Questions
1) What amperage is the Eaton B-Line EN20L44GRST meter socket rated for?
The EN20L44GRST is a 200 A single meter socket from the Eaton B-Line series. One socket position, one meter, so it suits a single-service residential or light commercial drop rather than a multi-tenant bank.
2) What are the enclosure dimensions on the B-Line EN20L44GRST meter socket for wall layout?
Plan for 15.25 in height, 13.25 in width, and 5.25 in depth off the wall. That depth matters where the socket sits next to a downspout, gas meter, or trim edge, and the height and width give you the clear wall area to keep free above grade.
3) Is this B-Line meter socket UL Listed for utility service work?
The EN20L44GRST 200 A single meter socket is UL Listed. Utilities also maintain their own approved meter socket list, so match the model against your serving utility's accepted equipment sheet before setting it.
4) Will an aluminum meter socket enclosure hold up mounted outdoors on a building exterior?
The enclosure body is aluminum with an ANSI 61 gray paint finish. Aluminum does not rust the way painted steel does once the coating is nicked, which is why it gets specified on coastal and high-humidity service entrances. The gray paint is the standard utility gear color, so it matches adjacent ANSI 61 gear on the same wall.
5) Is the EN20L44GRST a single meter socket or a meter stack for multiple tenants?
Single meter only. The EN20L44GRST serves one 200 A metered service. For a duplex, a strip mall, or a multi-family building where each unit needs its own meter, you want a multi-position meter stack or a meter main pack instead, not this enclosure.
6) What part number do I give the utility or my supplier for this Eaton meter socket?
Reference Eaton B-Line model EN20L44GRST. That is the manufacturer part number for the 200 A single socket in the ANSI 61 gray aluminum enclosure, and it is the number a utility inspector or counter will match against.
7) Can one person set this 200 A meter socket without a lift?
It weighs 15.409 lb, so it is a one-man hang. Get your mounting fasteners into solid backing or masonry anchors first, then set the enclosure; the weight goes up once service conductors are landed and supported.
