Spec Sheet
Product Specs
- Button Color:
- Black
- Environmental Rating:
- IP66, NEMA 4X, 13
- Series:
- M22
- Department:
- Electrical
- Product Group:
- Mounting Hardware
- Product Subgroup:
- Mounting Accessories
- Product Type:
- Mounting Ring
- Product Size:
- 22.5 mm
- Product Details:

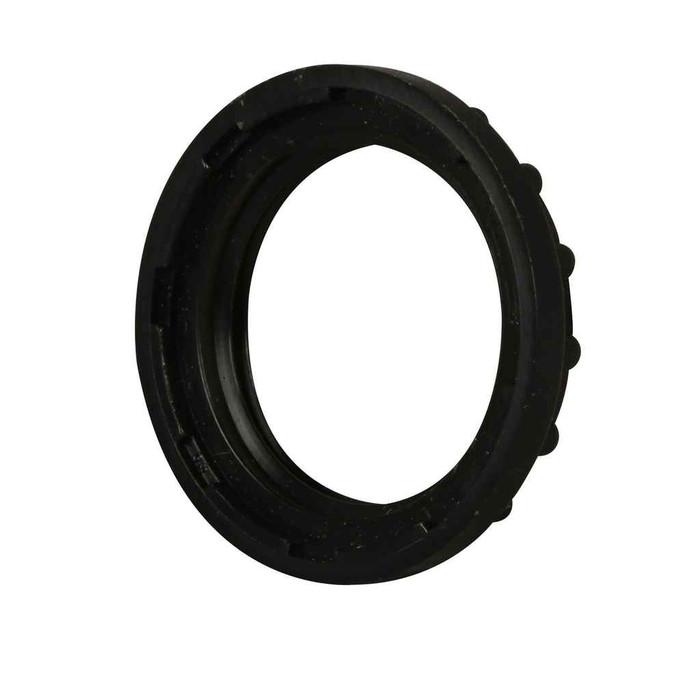

- Mounting Ring
- Mounting Method:
- Ring
- Product Weight:
- .009 LB
B-LINE M22-GR – Frequently Asked Questions
1) What size panel hole does the B-Line M22-GR mounting ring fit?
The M22-GR is built for the standard 22.5 mm pushbutton cutout, which is the common metric hole size used for M22 modular operators. If your enclosure is punched for 22.5 mm devices, the ring drops straight in. Panels punched for 30.5 mm operators will need an adapter or a different device.
2) What does the M22-GR ring actually do in a pushbutton assembly?
It is the mounting ring that secures a 22.5 mm M22 modular pushbutton or selector switch through the panel face. It is hardware only, not an operator or contact block, so you order the button, the contact/holder elements and this ring as separate pieces.
3) Will the M22-GR work with pushbuttons from another series?
It is an M22 series part sized at 22.5 mm. Use it with M22 modular operators. Mixing brands or series at the panel face is where the seal gets compromised, so keep the ring, operator and gasket within the M22 system.
4) Is the M22-GR black to match the rest of the M22 control station?
Yes, it is finished in black, which matches the standard black bezels used across the M22 modular line, so it blends into a control panel face without a color mismatch.
5) How much does the M22-GR mounting ring weigh for shipping a bulk panel order?
Each ring weighs .009 lb, so even a few hundred for a panel build barely registers on freight. Worth stocking spares in the shop since they are the piece most often lost during a retrofit.
