Product Specs
- Action:
- Button
- Button Color:
- Blue
- Environmental Rating:
- IP20
- Etching Code:
- X6
- Inscription:
- R
- Notes:
- The pushrod is 3.24 in long and can be cut to length. More than five million mechanical operations.
- Series:
- M22
- Department:
- Electrical
- Product Type:
- Reset Button
- Product Size:
- 22.5 mm
- Product Length:
- 4 IN
- Product Details:
- Reset Button
- Product Height:
- 1.1 IN
- Product Weight:
- .34 LB
- Product Width:
- 1.1 IN
B-LINE M22-DZ-B-X6 – Frequently Asked Questions
1) What size panel cutout does the B-Line M22-DZ-B-X6 pushbutton operator need?
The M22 series works in the standard 22.5 mm mounting hole, and this operator is listed at that 22.5 mm size. If your enclosure door is already punched for 22.5 mm pilot devices, it drops straight in with no rework.
2) How does a through-the-door operator differ from a normal panel-mounted pushbutton?
A through-the-door operator transmits the press through the enclosure door with a pushrod instead of carrying the contact block itself on the door. On the M22-DZ-B-X6 that pushrod is 3.24 inches long and can be cut to length to suit the gap between the door and the device mounted inside the enclosure. If you want the switching element on the door itself, you need a standard M22 actuator with a contact block behind it, not this operator.
3) Is the M22-DZ-B-X6 rated for a washdown or wet location?
No. It carries an IP20 environmental rating, which is finger-protection only with no water protection. Keep it inside a dry, protected enclosure; for a hose-down or outdoor location you need a sealed operator, not this one.
4) Can I shorten the pushrod on the M22 through-the-door operator for a shallower enclosure?
Yes. The 3.24 inch pushrod is meant to be cut to length, so you trim it to match the actual distance from the door to the device it actuates inside the panel.

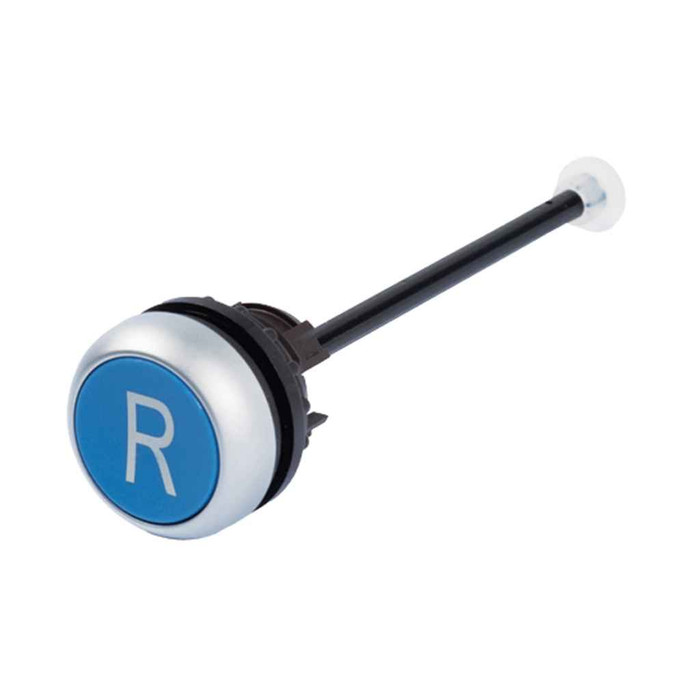

5) What does the button look like and what is marked on it?
It is a blue button marked with an R inscription, etching code X6, which is why it is used as a reset actuator on control panels. If your panel legend calls for a different color or a different letter, order the matching M22 operator instead.
6) Is this a momentary pushbutton or a maintained selector?
It is a button action device, used as a reset button. There is no twist or maintained position to it, so it is the wrong part if your schematic calls for a selector switch or a latching mushroom head.
7) What part number do I order for the blue R reset through-the-door operator?
Order B-Line M22-DZ-B-X6. That is the single model covered, blue button with the R marking in the 22.5 mm M22 modular size.
8) How durable is the M22 reset operator for a machine that gets reset every shift?
Rated for more than five million mechanical operations, so daily resets over the life of a control panel are well inside its range.
