Spec Sheet
Product Specs
- Action:
- Momentary
- Actuator:
- Flush, Button
- Bezel:
- Black
- Button Color:
- Buttonless
- Environmental Rating:
- IP67, IP69K, NEMA 4x, 13
- Illumination:
- Illuminated
- Notes:
- Includes contact block mounting adapter.
- Operating Cycles:
- 5,000,000 Mechanical operations
- Series:
- M22
- Department:
- Electrical
- Product Type:
- Pushbutton
- Product Size:
- 22.5 mm
- Product Length:
- .9 IN
- Product Details:
- Pushbutton
- Product Height:
- .1 IN
- Product Weight:
- .003 LB
- Product Width:
- 1.1 IN
B-LINE M22S-DL-X – Frequently Asked Questions
1) What panel cutout does the Eaton M22S-DL-X pushbutton operator need?
The M22 operator mounts in a standard 22.5 mm round panel hole, which is the common metric control-station cutout used across most industrial enclosures and consoles. If your existing panel is already drilled for 22.5 mm devices, this drops straight in without rework.
2) Does the M22S-DL-X come with a button cap, or do I order the lens separately?

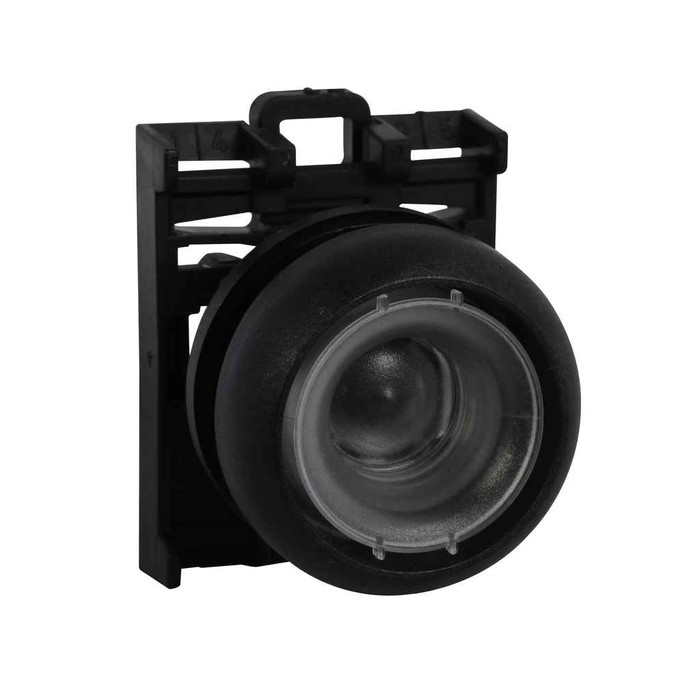

It ships buttonless. The M22S-DL-X is the illuminated flush button actuator body with a black bezel, so you pick the colored lens or button cap to suit the function you are marking (start, stop, reset). Plan on ordering that piece along with it.
3) Do I need a separate mounting adapter for the contact blocks on this M22 operator?
No, the contact block mounting adapter is included with the M22S-DL-X. What is not included is the contact blocks themselves or the LED lamp module, so order those to match your circuit: normally open, normally closed, and the voltage of the light you want behind the illuminated button.
4) Will this M22 pushbutton hold up in a washdown or outdoor enclosure?
Yes. The operator is rated IP67 and IP69K, plus NEMA 4X and 13, so it takes high-pressure, high-temperature washdown and corrosive-environment duty. That covers food and beverage lines, car washes, and outdoor control stations, provided the enclosure itself carries the same rating and the device is gasketed properly at the panel.
5) Is the M22S-DL-X a maintained or momentary pushbutton?
Momentary. The contact changes state only while the button is pressed and springs back when released, which is what you want for start, jog, and reset functions. For a latching function such as a maintained stop or an on/off selection, you need a maintained M22 operator instead, not this one.
6) How many operations is the Eaton M22 flush pushbutton good for?
Rated at 5,000,000 mechanical operations. That is high-cycle territory, so it suits a button on a production machine that gets hit every part cycle, not just an occasional reset on a panel door.
7) Is this a flush or extended pushbutton, and does that matter for accidental actuation?
Flush. The button sits level with the bezel, which makes it harder to hit by accident with a sleeve or a passing hand than an extended or mushroom head. If you want a button that can be slapped quickly, a flush actuator is the wrong choice; if you are trying to prevent nuisance starts on a crowded panel, it is the right one.
8) Will the M22S-DL-X match the other Eaton M22 devices already on my control panel?
It is part of the Eaton M22 modular line, so it shares the 22.5 mm mounting and the same modular contact block and LED element system as the rest of the M22 selector switches, pilot lights, and pushbuttons on the panel. The black bezel is the standard M22 look, so it will sit in a row with existing black-bezel M22 devices without standing out.
