Spec Sheet
Product Specs
- Action:
- Momentary
- Actuator:
- Extended, Button
- Bezel:
- Black
- Button Color:
- Red
- Environmental Rating:
- IP67, IP69K, NEMA 4x, 13
- Illumination:
- Illuminated
- Notes:
- Includes contact block mounting adapter.
- Operating Cycles:
- 5,000,000 Mechanical operations
- Series:
- M22
- Department:
- Electrical
- Product Type:
- Pushbutton
- Product Size:
- 22.5 mm
- Product Length:
- 1.17 IN
- Product Details:
- Pushbutton
- Product Height:
- .65 IN
- Product Weight:
- .995 LB
- Product Width:
- 1.17 IN

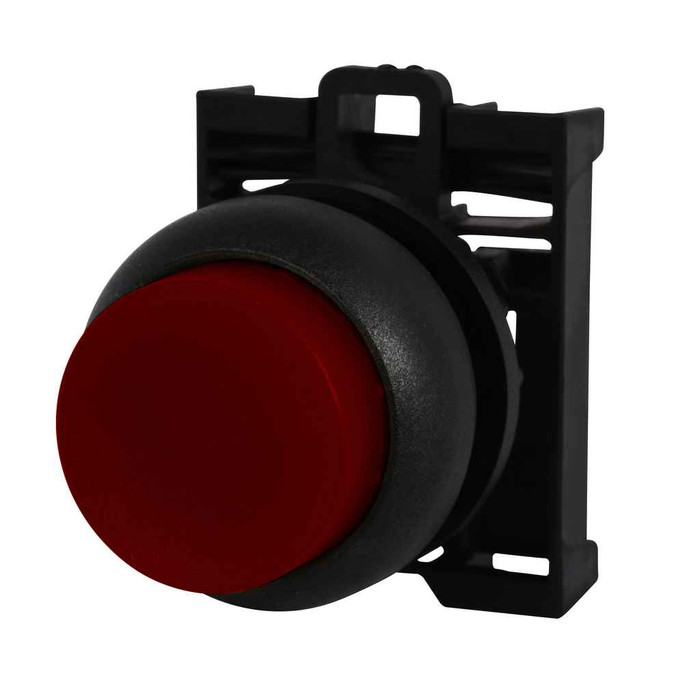

B-LINE M22S-DLH-R – Frequently Asked Questions
1) Do I need to order contact blocks separately with the M22S-DLH-R pushbutton?
Yes, contact blocks are a separate order. What ships with the M22S-DLH-R is the operator plus the contact block mounting adapter, so you still need to specify the NO/NC contact elements and, because this is an illuminated unit, the lamp block at the voltage your control circuit runs.
2) Is the M22S-DLH-R a maintained or momentary pushbutton?
Momentary. The extended red button returns as soon as you release it, so it suits jog, start, or test duty rather than a latched stop function. If the panel drawing calls for a maintained or turn-to-release button, this is the wrong operator.
3) Can this red illuminated pushbutton be used as an emergency stop?
No. It is a red illuminated momentary button with an extended actuator, not a mushroom-head latching E-stop. Emergency stop duty needs a maintained, twist- or pull-to-release mushroom operator. Use the M22S-DLH-R for start, jog, reset, or indication-plus-command duty instead.
4) Is this pushbutton rated for washdown or outdoor enclosures?
It carries IP67, IP69K, and NEMA 4X and 13 ratings, so it holds up to high pressure, high temperature washdown and to oil and coolant exposure on machine tools. That covers food processing, dairy, and wet duty panels as well as sealed outdoor enclosures.
5) How long will the M22 pushbutton last on a high cycle machine?
It is rated at 5,000,000 mechanical operations, which puts it in the range for daily jog or start duty on production equipment rather than occasional-use panels. Electrical life will depend on the contact blocks you pair with it.
6) Will the M22S-DLH-R match the other buttons already in my M22 control panel?
It shares the M22 modular platform and the standard 22.5 mm mounting, with a black bezel, which is the common finish across M22 station fronts. So it lines up with the rest of the row in an existing M22 panel and uses the same contact block stack behind it.
7) What does the extended actuator on this M22 button change compared with a flush button?
The extended button stands proud of the black bezel, so it is easier to hit with a gloved hand and can be found by feel. The trade off is that it is easier to bump accidentally than a flush or guarded operator, so keep it off tight-clearance panel edges.
